Package Includes
- Option 1 Dual Battery Charger:1x Renogy 12/24V 50A DC-DC Dual Battery Charger

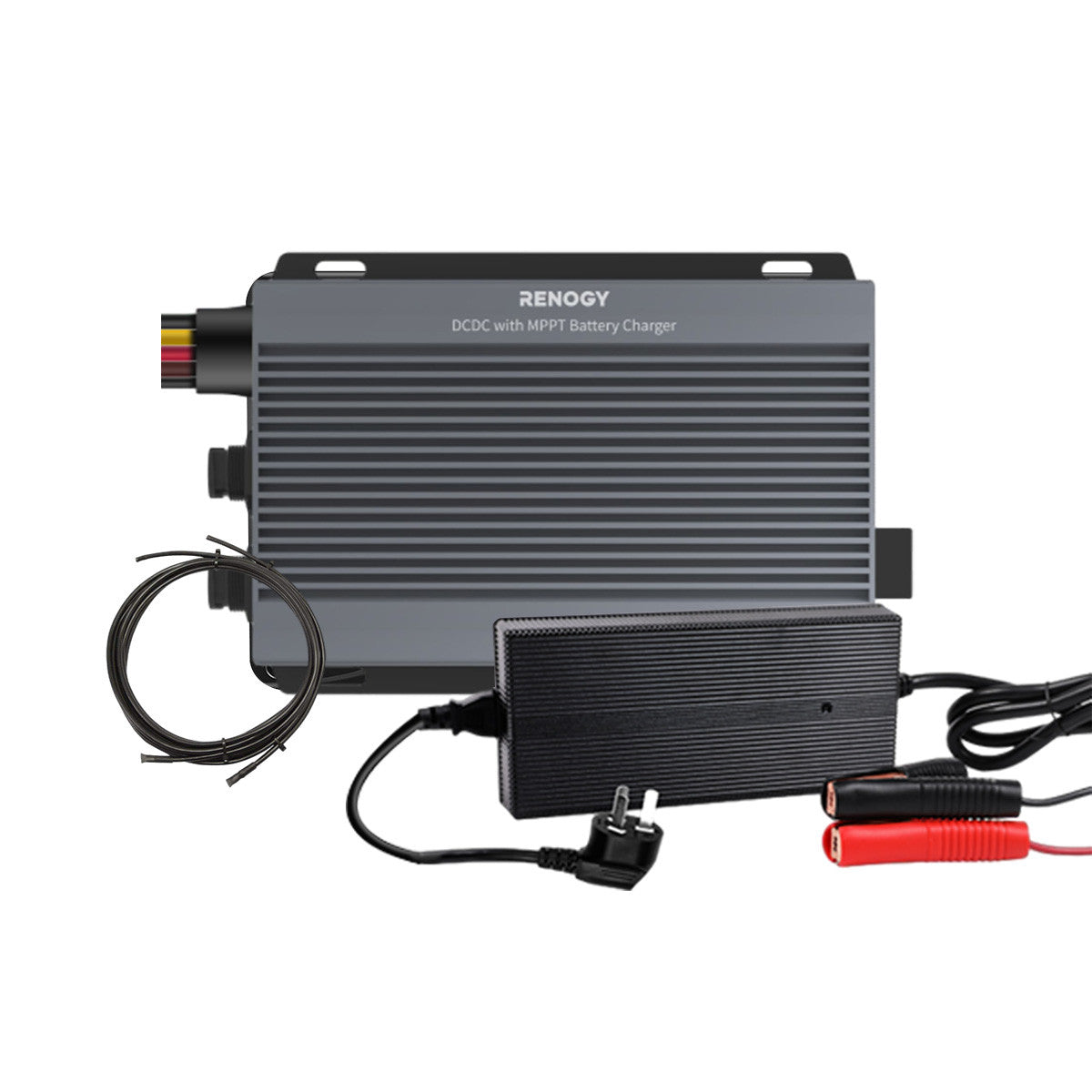

- Option 2 Dual Battery Charger w/20A AC Charger:1x Renogy 12/24V 50A DC-DC Dual Battery Charger and 1x Renogy 20A AC-DC Battery Charger

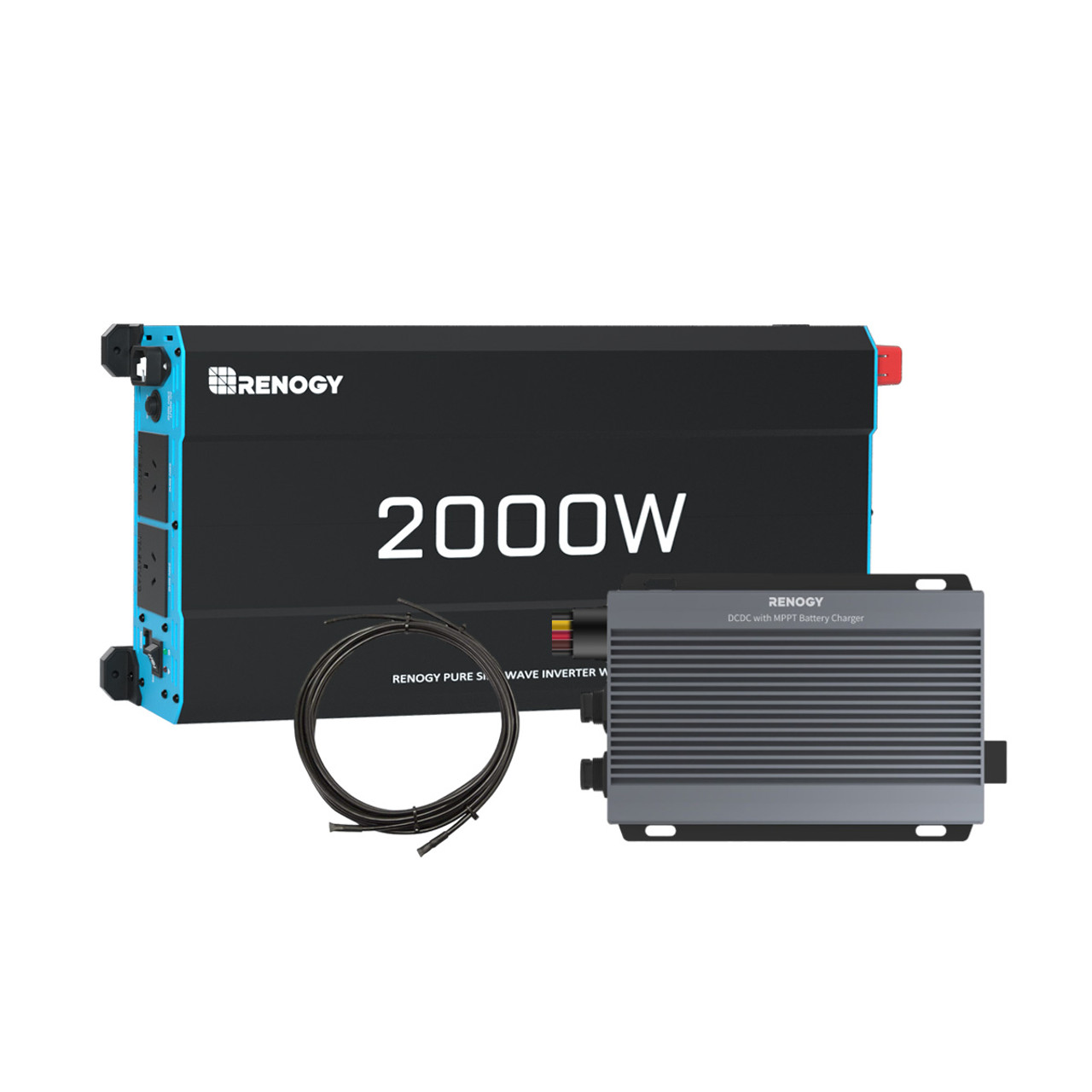

- Option 3 Dual Battery Charger w/1000W Inverter:1x Renogy 12/24V 50A DC-DC Dual Battery Charger and 1x Renogy 2000W Pure Sine Wave Inverter
- Option 4 Dual Battery Charger w/2000W Inverter & 20A AC Charger:1x Renogy 12/24V 50A DC-DC Dual Battery Charger 、 1x Renogy 2000W Pure Sine Wave Inverter and 1x Renogy 20A AC-DC Battery Charger
System Voltage: 12V/24V - 12V/24V
Solar Input Voltage: 50 VDC
Output Voltage: 9-32 VDC
Alternator Input: 9-32 VDC
Maximum Output Current Rating: 50A
Output Power: 720W
Battery Types: AGM/SLD , GEL ,FLD ,LI,USER
Charging Efficiency: 94%
Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium);0mV / ℃ / 2V; no compensation (Lithium)
Idle Power Consumption: <100mA
Grounding: Common Ground
Communication Protocol: -40℉ to 176℉/-40℃ to 80℃
Operating Temperature Range: -31℉ to 176℉/-35℃ to 80℃
Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃
Humidity: Modbus ; RV-C
Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm
Weight: 4.10 lb / 1.86 kg
Certification: CE;RoHS;FCC Part 15 class B
Warranty: 3-year material warranty
opc:
Rated Output Power: 2000W
Surge Power (Peak Power): 4000W
Input Voltage: 12V DC
Output Voltage : 220-240V AC
Input Voltage Range: 11-16VDC
Static Current: 1.3A
Output Frequency (Nominal): 50HZ
Output Wave Form: Pure Sine Wave
Low Voltage Shutdown: 10VDC
Low Voltage Protection: Recover from low voltage protection
High Voltage Shutdown: 16.3VDC
Battery Supply & AC Main Transfer Time: Within 50mS
Maximum Efficiency: 90%
Working Temperature: 0°C~40°C
Dimensions : 442*220*92 mm
Weight : 4.8kg
Certifications : CE
Warranty Period: 1-year
Input Voltage : 100-240 VAC ~ 50/60Hz
Output Voltage : 14.5 ± 0.1 VDC
Minimum Battery Voltage: 8V
Operating temperature range: -29°C~45°C / -20°F~113°F
Self-Consumption: 50mA
Input Amps: 5A Max
Output Amps: 20A
Efficiency: 93%
Storage Temperature: -40°C~75°C/ -40°F ~ 167°F
Current Protection: 250V 10A Fuse built in
Dimensions: 9.20 x 4.30 x 2.52in / 233 x 108 x64mm
Weight: 3 .8lb/1.7kg
Cable Length: Approx 39in / 99cm
Cable Gauge: 12 AWG
Protection: Overcurrent Protection (Fuse 250V 10A), Short Circuit Protection
Certifications: CE, ETL, FCC, TUV
Warranty: 2-year material warranty
opc:
FAQ
1. 12V 30A Dual Input DC to DC Battery Charger with MPPT
2. 1000W 12V to 230V/240V Pure Sine Wave Inverter
3. 12V 20A AC to DC Lithium Iron Phosphate Battery Charger
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
