DESCRIPTION
-Intelligent Boost and Buck Logic.
-Extremely Compact and Lightweight.
-Prioritize Solar Green Energy.
-Smart Living Unleashed.
-Bluetooth Energy Monitoring with wired CAN communication.
Adapt to Divers DIY Configuration
The device utilizes 'boost and buck' logic for efficient voltage management, allowing 12V solar panels or generators to power a 24V system. Conversely, when connected to 24V solar panels or generators, it seamlessly switches to 'buck' logic, automatically reducing the voltage to charge a 12V house battery.
Extremely Compact and Durable
Crafted from high-quality sheet metal, this charger features IP67 waterproof and withstands temperatures up to 600°C. It offers adaptable installation in tight spaces, giving you the ultimate off-grid energy freedom without compromising comfort.
Charging Mode Auto-Switching
Featuring dual charging options, this charger utilizes the alternator-linked starter battery and solar panels simultaneously, reducing charging time with 99% MPPT tracking efficiency. During travels, it maximizes solar charging in ample sunlight and seamlessly switches to alternator charging in unfavorable sunlight conditions.
Smart Living Unleashed
Equipped with built-in Bluetooth, this charger enables remote control via smartphones or other smart devices to monitor battery levels, adjust charging settings, and initiate remote starts. Additionally, it supports wired CAN communication, allowing connectivity with computer-based CAN monitoring tools for data transfer and sharing.
Learn more
Package Includes
- 1 x RENOGY IP67 50A DC-DC Battery Charger with MPPT
- 1 x Battery Temperature Sensor
- 1 x Quick Guide
- 4 x Terminal Ring
- 1 x Install Screw
| RENOGY ROVER 20 AMP MPPT SOLAR CHARGE CONTROLLER (RNG-CTRL-RVR20) | |||
|---|---|---|---|
| Electrical Parameters | Environmental Data | ||
| Nominal System Voltage | 12/24V (Auto-Detect for Non-Lithium Batteries) | Protection Level | IP32 |
| Rated Charge Current | 20A | Operating Temperature Range | -35°C to 45°C; -31°F to 113°F |
| Max. PV Input Voltage | 100 VDC | Storage Temperature Range | -35°C to 75°C; -31°F to 167°F |
| Max. PV Input Power | 12V/260W, 24V/520W | Operating / Storage Humidity | ≤ 90%, No Condensation |
| Power Consumption | ＜100mA/12V; ＜58mA/24V | Temperature Compensation | -3mV/°C/2V |
| Max Battery Voltage | 32V | Accessories | |
| Ground Type | Negative | Temperature Sensor | 9.8ft cable length |
| Electrical Protection | Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries. | Certifications | |
| Mechanical Specifications | CE | YES | |
| Dimensions |
210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in
|
FCC Class B Part 15 Compliant | YES |
| Weight |
3.1 lbs / 1.4 kg
|
Warranty | |
| Max. Terminals Size | 8 AWG 10mm2 | Material and workmanship warranty | 2 Year |
| RENOGY BT-1 BLUETOOTH MODULE (RCM-BT1) | |||
| Compatibility | Operation Specifications | ||
| Compatible PWM Charge Controller |
RNG-CTRL-WND10/RNG-CTRL-WND30-LI/RNG-CTRL-ADV30-LI |
Communication Protocol | RS232 |
| Compatible MPPT Charge Controller |
RNG-CTRL-RVR20/RNG-CTRL-RVR30/ RNG-CTRL-RVR40/RNG-CTRL-RVR60S/ RNG-CTRL-RVR100 |
Port Type | RJ12 |
| Compatible App | Renogy DC Home App available in both the App Store and Google Play | Input Voltage | 5V |
| Protection Grade | IP54 | ||
| Standby Power Consumption | 0.04W | ||
| Mechanical Specifications | Operating Power Consumption | 0.05W | |
| Communication Range | ≤82ft (25m) | Serial Baud Rate | Fixed Baud Rate 9600bps |
| Cable Length | 16.4 ft (5.00m ) | Certifications | |
| Dimensions | 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) | FCC Class B Part 15 Compliant | YES |
| Weight | 4.58oz (130g ) | Warranty | |
| Operation Temperature | -4°F to 185°F (-20℃~85℃) | Material and workmanship warranty | 1 Year |
1. What is the significance of the system voltage value of 12/24V-12/24V for IP67 chargers?
When the IP67 charger is connected to the solar panel, it can use the 12V solar panel to boost the voltage to charge the 24V Housing battery; it can use the 12V solar panel to buck the voltage to charge the 12V Housing battery.
When the IP67 charger is connected to the starter battery, the 12V starter battery can be utilized to boost the voltage to charge the 24V Housing battery; the 12V starter battery can be utilized to charge the 12V Housing battery.
2.What are the solar input requirements for this charger?
(1) The charger is suitable for up to 720W solar panel.
(2) The charger is compatible with up to 50V solar panel input.
(3) The charger is compatible with both rigid and flexible modules.
3. What type of alternator is this charger compatible with?
The charger is compatible with smart alternators and traditional alternators, the working voltage of different alternators will be different. The product itself comes with Bluetooth communication function, you can connect to DC Home or Core via Bluetooth, and then adjust the appropriate input voltage value of the charger according to the characteristics of the working voltage of different types of alternators.

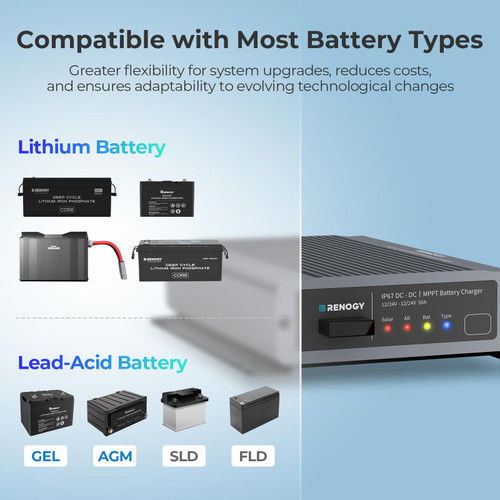

4. How do I set the battery type on this charger?
Way 1: The charger itself has a button to set the battery type, the button is next to the "Type" indicator, press it briefly to select a different battery type.
Way 2: The charger itself comes with Bluetooth communication, you can connect our Core, DC Home to change the battery type.
5. How to view data without a display?
The charger itself comes with Bluetooth communication, you can connect to our Core, DC Home to view the charger's data.
