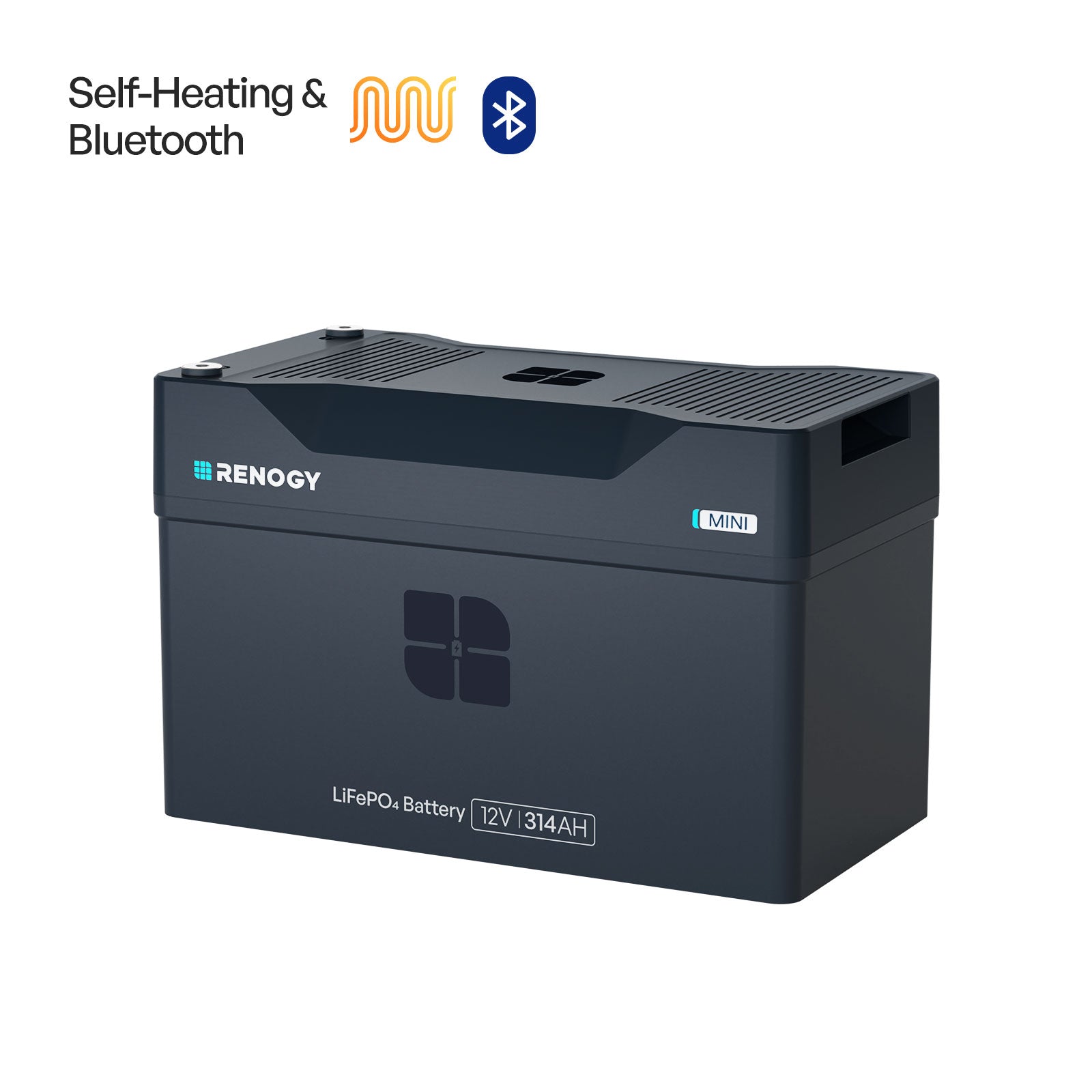

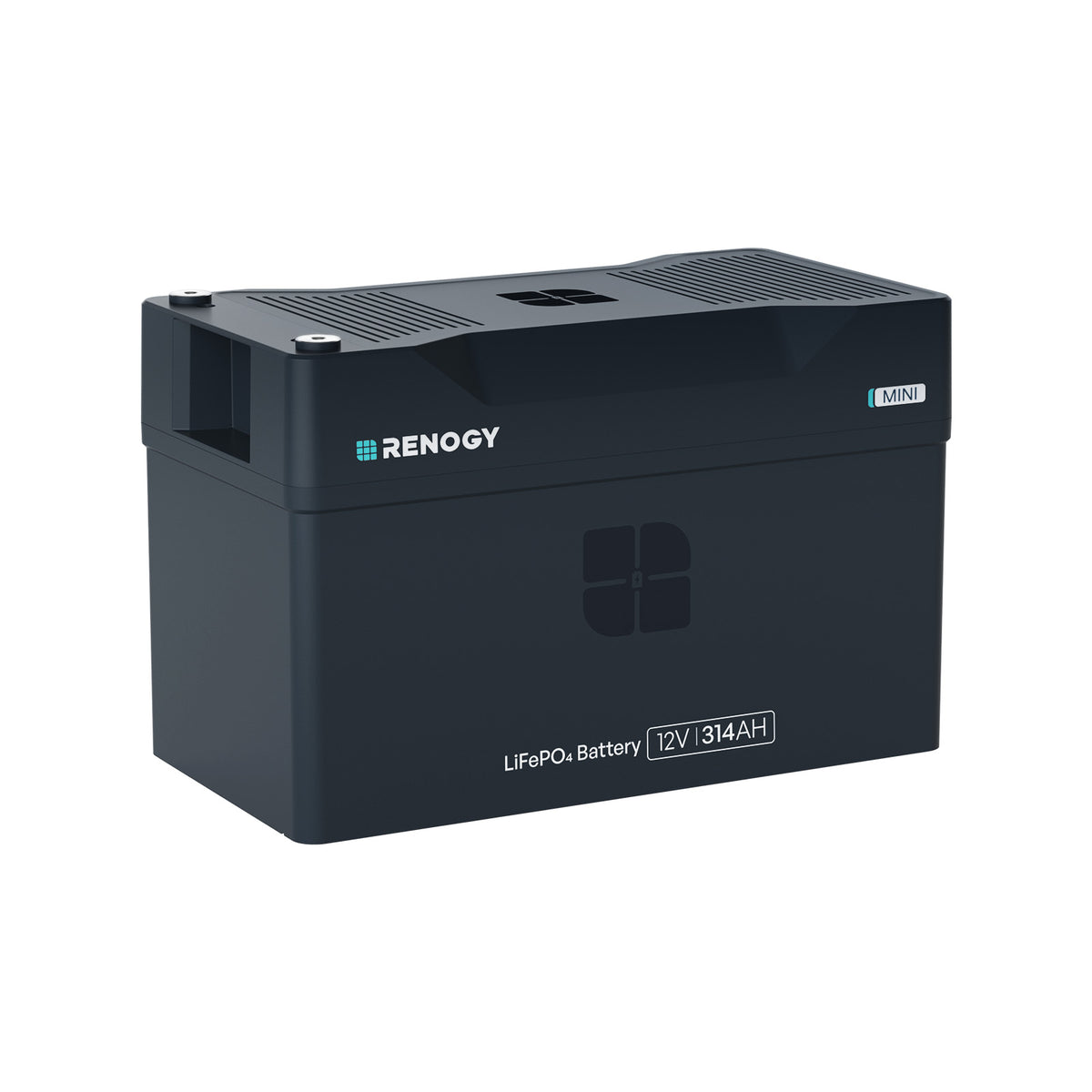

Reserve Mini Smart 12V 200Ah/300Ah LiFePO4 Battery | Renogy AU

SKU: RBT-L12314-C1-AU
AUD$1,229.00
Tax included. Shipping Policy.
Key Features
  • - Built in Bluetooth enables app monitoring from up to 49 ft away
  • - Save space with up to 45% smaller size than comparable 100Ah batteries and a Group 24 fit
  • - Resume charging in as short as 20 minutes in cold weather
  • - Get added peace of mind with 25+ BMS protections and warnings
  • - Stay protected outdoors with IP65 resistance and a flame retardant enclosure
Capacity
Pack

🔥 Spring Adventure Sale: Extra A$100 Off on Order A$1,200+ · Code RNG4WD

Quantity:
Payment Methods
Delivery Methods
Delivery time: 3-7 business days. (Excludes LTL shipping.) Free Shipping
Return & refund policy

Renogy Shipping & Return Policy

Shipping

We hope you enjoyed your online shopping experience with Renogy. Please read below for more information about our shipping.

Shipping Policies

1.All orders must have a valid street address. RENOGY does not accept PO Box addresses, some items cannot be delivered to PO Boxes due to shipping restrictions.

2.Shipping times are calculated based on business days (Monday to Friday), excluding holidays and weekends.

3.  Depending on your order, your items may arrive in multiple packages. Once your order is shipped, you can click here to track your package.We understand that professional installation is often desired. However, we strongly suggest that you wait until receiving your complete order and verifying the condition of the products before scheduling any work to commence with your new Renogy products.

4.Packages cannot be rerouted after they have been shipped. If you need to change the address, please e-mail us at service.renogy.com.

5.If the outer packaging is damaged upon delivery, please refuse the package and contact us immediately. If refusing the delivery is not possible, please provide relevant pictures to facilitate our after-sales service.

6.We do not support self-pickup service from our warehouse. If you have such a need, please e-mail us at service.renogy.com.

Order Processing and Transportation

  • Small Parcel: Order processing time is typically 1-2 business days.The transportation time is typically 2-7 business days.
  • LTL: Order processing time is typically 2-3 business days.The transportation time is typically 5-12 business days.

Please note:

The estimated time is for reference only and may be extended during major promotions, holidays, or other special circumstances.

Additional Freight Fees (Estimates):

Renogy offers free ground shipping for many of our products to most areas. For oversized products or shipments to remote areas, additional shipping fees will be charged. When you check out, simply enter your detailed address, and the system will automatically calculate the shipping cost for you.If you refuse to pay the additional shipping fee, please e-mail us at service.renogy.com  to provide a non-remote address. Otherwise, Renogy reserves the right to cancel the order.

Return & Refund

Thank you for shopping with Renogy! Our goal is 100 percent customer satisfaction! But in the event something isn’t quite right, we’ve made the return process super easy.

Order Cancellation

Customers can cancel transactions any time before Renogy begins the shipping process. The shipping process typically begins within 30 minutes of placement of the order. If unable to cancel an order before shipping, customers can make returns in accordance with Renogy’s Return Policy.

Returns

Items purchased from Renogy can be returned within 30 days of delivery. Please note that Renogy will not accept returns beyond 30 days of delivery (this excludes returns for defects or quality issues which can be accepted after inspection and approval by Renogy).

Renogy 30-Day Return Policy

For returns of products purchased online at Renogy.com, customers need to contact Renogy customer service within 30 days of receiving the item to initiate the return process. To be eligible for return, items must be in the original packaging( *it should be the original container or covering which is used to package the product, including all accessories, attachments as well as manual, etc.), unused, undamaged, unmodified, and have a return authorization number( *customer needs to first contact Renogy customer support team for getting the RMA number before returning the order.) provided by Renogy. Proof of purchase must be provided by the customer to begin the return process.

Note: Please note that due to the transportation specificity of lithium batteries, the return period for lithium batteries is within 7 days. Upon receiving your package, we kindly advise keeping the original packaging handy for any potential future needs.

For Renogy products purchased from other authorized retailers or sellers, please contact the seller where the item was originally purchased.

Shipping Costs

Shipping costs for product returns will be paid by Renogy under the following conditions:

  • Product was damaged during delivery or warehouse handling
  • Product defects
  • Incorrect product was delivered
  • Product(s) delivered were not ordered by the customer.

The customer is responsible for any return shipping costs when the product is returned under any other conditions. Renogy does NOT accept returns sent using cash on delivery if the return is due to customer reasons.

Furthermore, Renogy does NOT accept returns of items that have been modified in any way. Any modifications will render the Renogy warranty null and void. Any modified products returned to Renogy will be shipped back to the customer at the customer’s expense.

Refunds

For returns related to customer preferences (not related to defects, shipping damage, or wrong product delivered), a 10% to 15% restocking fee will be charged.

After receiving the returned item, Renogy will issue a refund within 7 to 10 business days. Renogy will notify the customer by email once the refund has been processed. If the refund isn’t received after 10 business days, please contact the Renogy Customer Service Team. All returned items will be inspected to ensure they meet Renogy’s Return Policy.

Product Return Process

1. To request authorization for a return, please first contact Renogy Customer Service. Upon contacting Renogy, customers will be required to provide the reason for the return along with a receipt or proof of purchase.

2. The Renogy Customer Service Team will determine whether the purchase is eligible for return. After confirming the order is eligible, Renogy will issue a Return Material Authorization (RMA) number. The customer must clearly mark the RMA number on the package and arrange for shipping the item.

3. For products being returned due to quality issues, which are beyond the 30-day return period but within the warranty period, Renogy will provide instructions on how to properly package the product to return it safely. Do not ship the product before receiving the proper shipping safety instructions.

Note: Do not return any items without the RMA confirmation from the Renogy Customer Service Team. For returns without RMA confirmation, the refund or replacement will not be processed, and the items will be returned to the sender.

This policy applies only to Renogy products purchased in Australia through Renogy’s authorized sellers and channels.

[1] Original packing: it should be the original container or covering which is used to package the product, including all accessories, attachments as well as manual, etc.

[2] Return authorization number: customer needs to first contact Renogy customer support team for getting the RMA number before returning the order.



Replacement

For any issues with product performance, please contact our Technical Support team at service.renogy.com. for troubleshooting assistance.

Please be prepared with a multimeter and your invoice or the following information:
Order number
Proof of purchase
Video or photo of the damaged/defective product
Mailing address
Contact telephone number

If you have received a defective product or a damaged unit during shipment, you are eligible for a refund or replacement.

In the event of a replacement, Renogy will arrange for return shipment of the defective unit, and once the part has been received and inspected, we will ship out the replacement part.

If damage results due to improper handling during the setup or installation, whether it is done professionally or by the customer, the product is no longer eligible for replacement or refund.

For Third-Party Purchase

Thank you for purchasing a Renogy product from one of our approved third-party vendors. Returns and refunds for purchases made through these third-parties (Walmart, Home Depot, Best Buy, Amazon LLC, etc.) must be handled through the vendor's return policy. Renogy cannot assist in third-party returns and refunds. Renogy can only offer replacements for products still within the warranty period.

Free Shipping on All Products

Shipping policy

We hope you enjoyed your online shopping experience with Renogy. Please read below for more information about our shipping.

Shipping Policies

1.All orders must have a valid street address. RENOGY does not accept PO Box addresses, some items cannot be delivered to PO Boxes due to shipping restrictions.

2.Shipping times are calculated based on business days (Monday to Friday), excluding holidays and weekends.

3.Depending on your order, your items may arrive in multiple packages. Once your order is shipped, you can click here to track your package.We understand that professional installation is often desired. However, we strongly suggest that you wait until receiving your complete order and verifying the condition of the products before scheduling any work to commence with your new Renogy products.

4.Packages cannot be rerouted after they have been shipped. If you need to change the address, please e-mail us at service.renogy.com.

5.If the outer packaging is damaged upon delivery, please refuse the package and contact us immediately. If refusing the delivery is not possible, please provide relevant pictures to facilitate our after-sales service.

6.We do not support self-pickup service from our warehouse. If you have such a need, please e-mail us at service.renogy.com.

Order Processing and Transportation

Ship From

Delivery Method

Type

Order Processing

Transportation Time

South Granville,Villawood,Derrimut

AU POST,TOLL,Direct Freight,Hunter,Allied

Parcel Shipping

1-2 business days

2-7 business days

South Granville,Villawood,Derrimut

LTL

LTL

2-3 business days

1-7 business days



Please note:

The estimated time is for reference only and may be extended during major promotions, holidays, or other special circumstances.

Additional Freight Fees (Estimates):

Renogy offers free standard shipping for many of our products. However, additional fees will be charged for shipments that are overweight (>30 kg) or exceed the maximum dimensions (L > 110 cm, W > 80 cm, H > 60 cm).

During checkout, enter your address to automatically calculate any applicable fees. If additional charges apply and are not paid, Renogy reserves the right to cancel the order. For inquiries, email service@renogy.com.

30-Day Return & Refund Service
5% OFF Coupon for New Subscriber
Lifetime Customer Support Contact us: +61 1800560588
Show More Benefits Show Less
Frequently bought together
Save together with
Frequently Bought With
View more bundles Fold
Total Bundle Price
Add Bundle to Cart
Total Bundle Price
Description
Includes
Specs
Downloads
FAQ

Ready for the Road Ahead

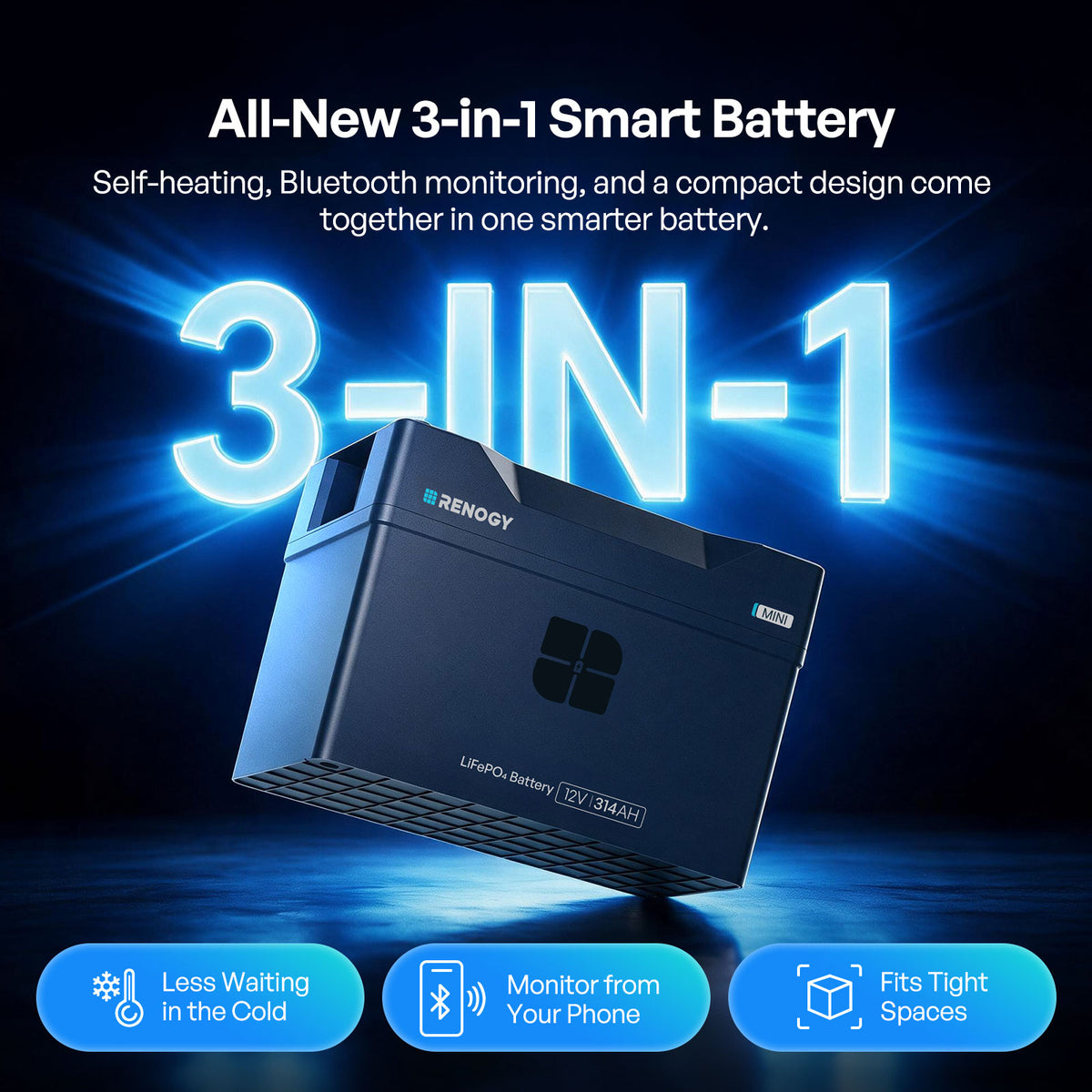

Reserve Mini Smart 314Ah&200Ah LiFePO4 Battery

Highlight Features

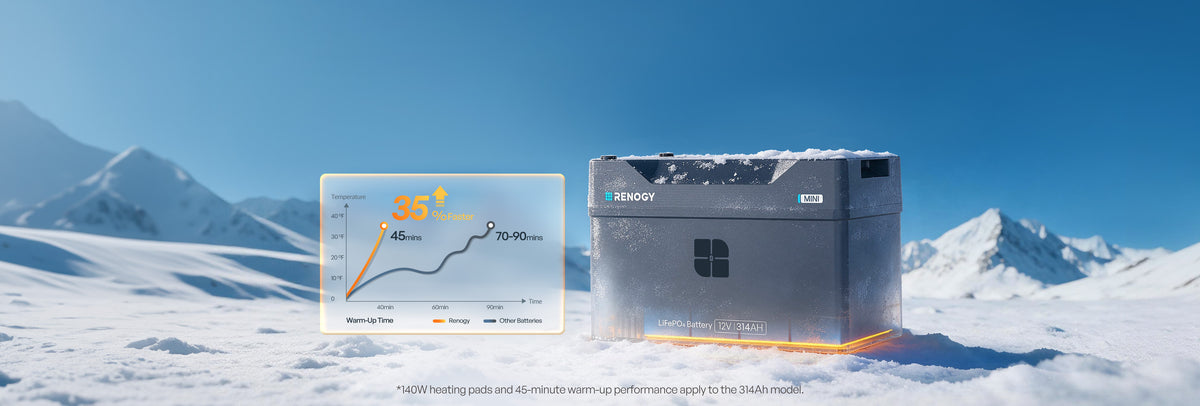

Resume Charging in Just 45 Minutes

With built in 140W heating pads, the Reserve Mini Smart 314Ah Battery helps reduce cold weather charging delays by warming the battery from 14°F to 32°F in as short as 45 minutes, so you can get back on the road sooner.

Low-Temp Cut Off Protection

In cold conditions, Low-Temperature Protection automatically pauses charging to help protect battery cells from potential damage.

Automatic Self-Heating

When charging is needed in cold weather, built-in 140W heating pad to warm the battery from 14°F to 32°F in as little as 45 minutes, helping bring it back to a charge-ready range.

Ready to Charge Faster in the Cold

When cold weather slows you down, Reserve Mini Smart 314Ah Battery helps you get charging again sooner, so you can get back on the road and spend more time enjoying the journey.

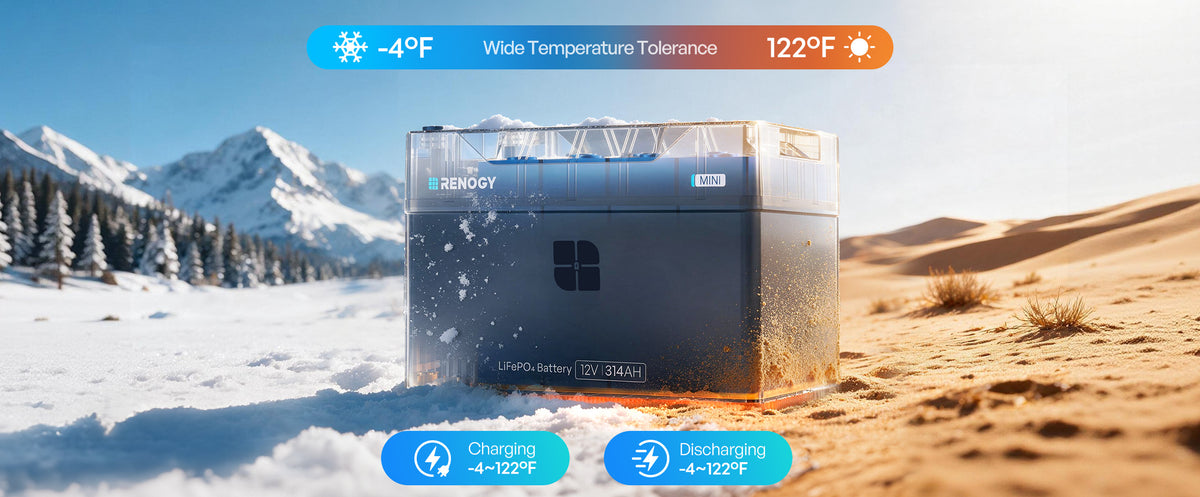

Stay Powered Through Temperature Changes

From freezing mornings to high-heat days, Reserve Mini Smart 314Ah Battery is designed to help keep your RV and Off-Grid systems powered through changing conditions.

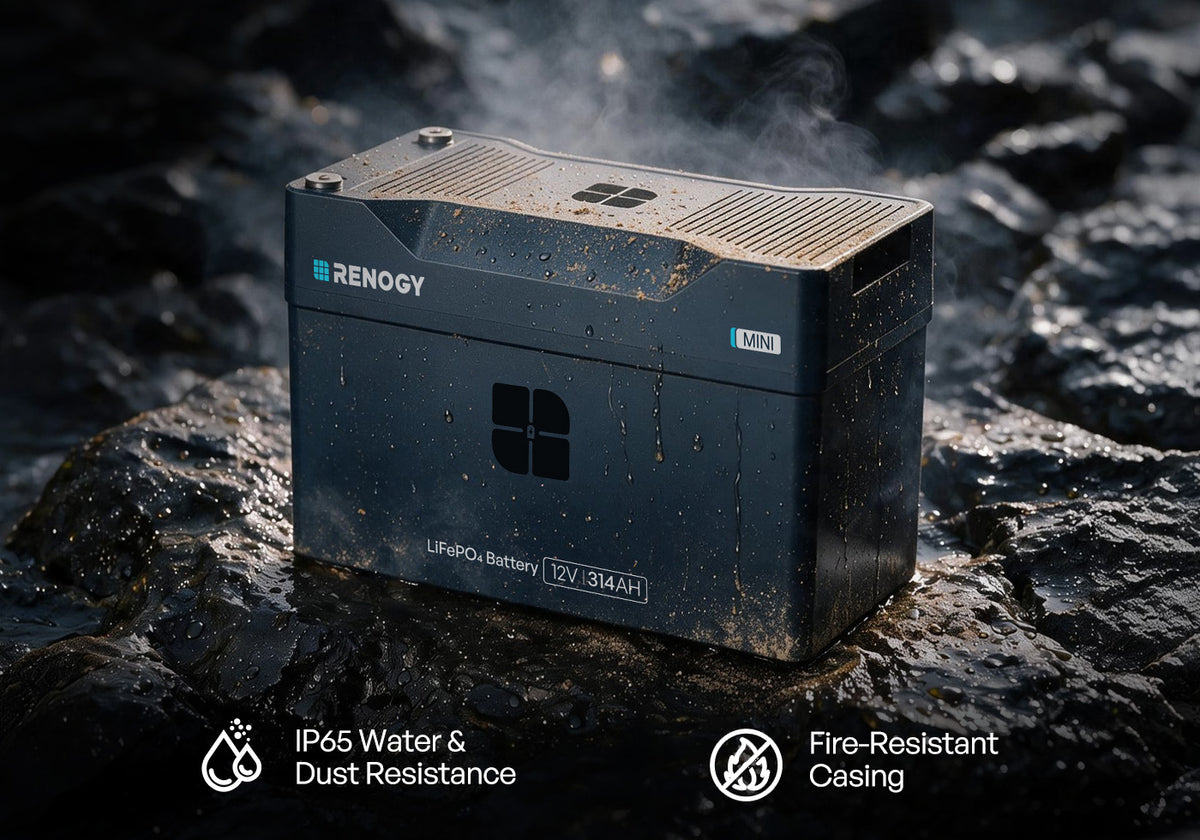

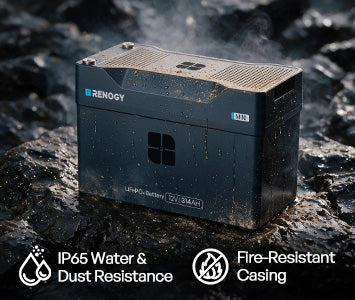

Durable Protection for Outdoor Use

Built to handle the outdoors, a durable IP65-rated enclosure and V-0 flame-retardant materials help protect against dust, water, and flame spread in demanding conditions.
Stay Powered Through Temperature Changes

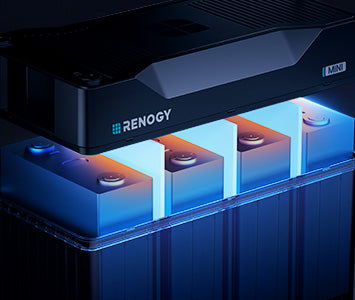

Multi Level BMS Protections for Years of Reliable Power

A smarter BMS with 60+ protections responds progressively to different levels of risk and pinpoints specific battery issues,
helping reduce unnecessary shutdowns under heavy system loads from multiple high demand appliances.

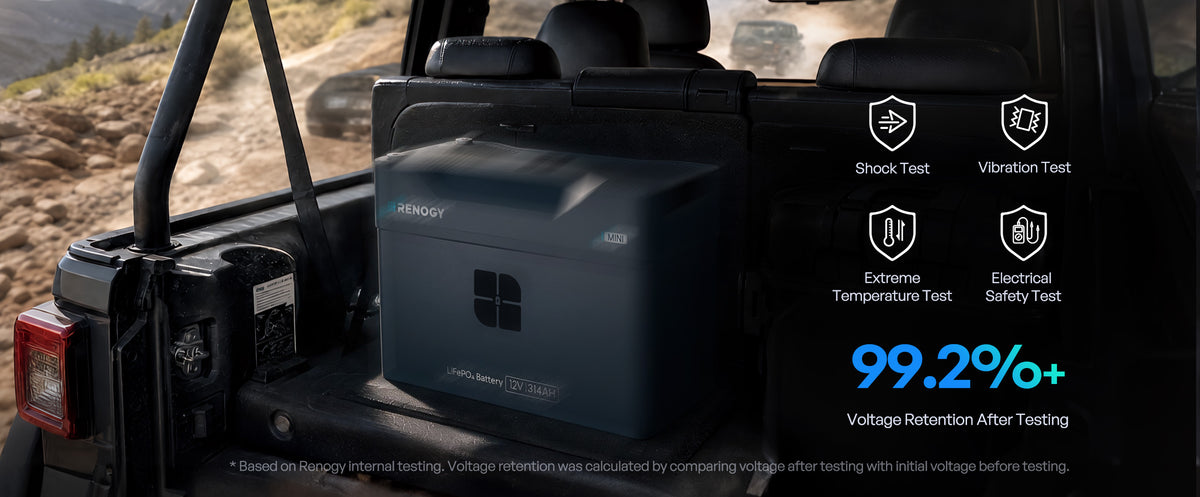

Proven Through Harsh-Condition Testing

Built to handle demanding mobile environments, Reserve Mini Smart 314Ah Battery retained ¹99.2%+ voltage after vibration, shock, and durability testing, helping deliver stable power through tough conditions.

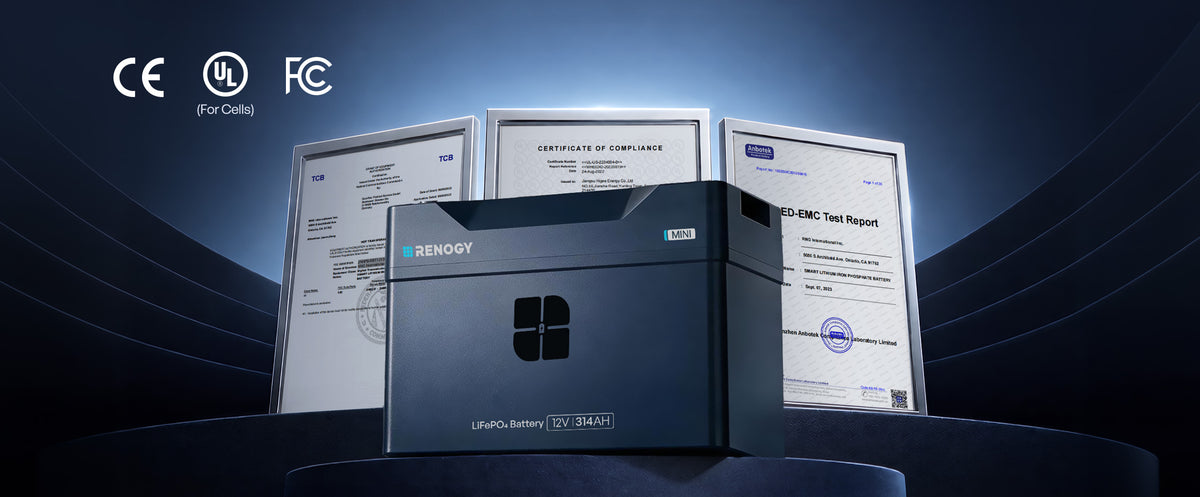

Certified for Trusted Quality

Backed by rigorous testing and certifications including UL, FCC, and CE, Reserve Mini Smart 314Ah Battery meets recognized safety and compliance requirements for confident use.
Multi Level BMS Protections for Years of Reliable Power

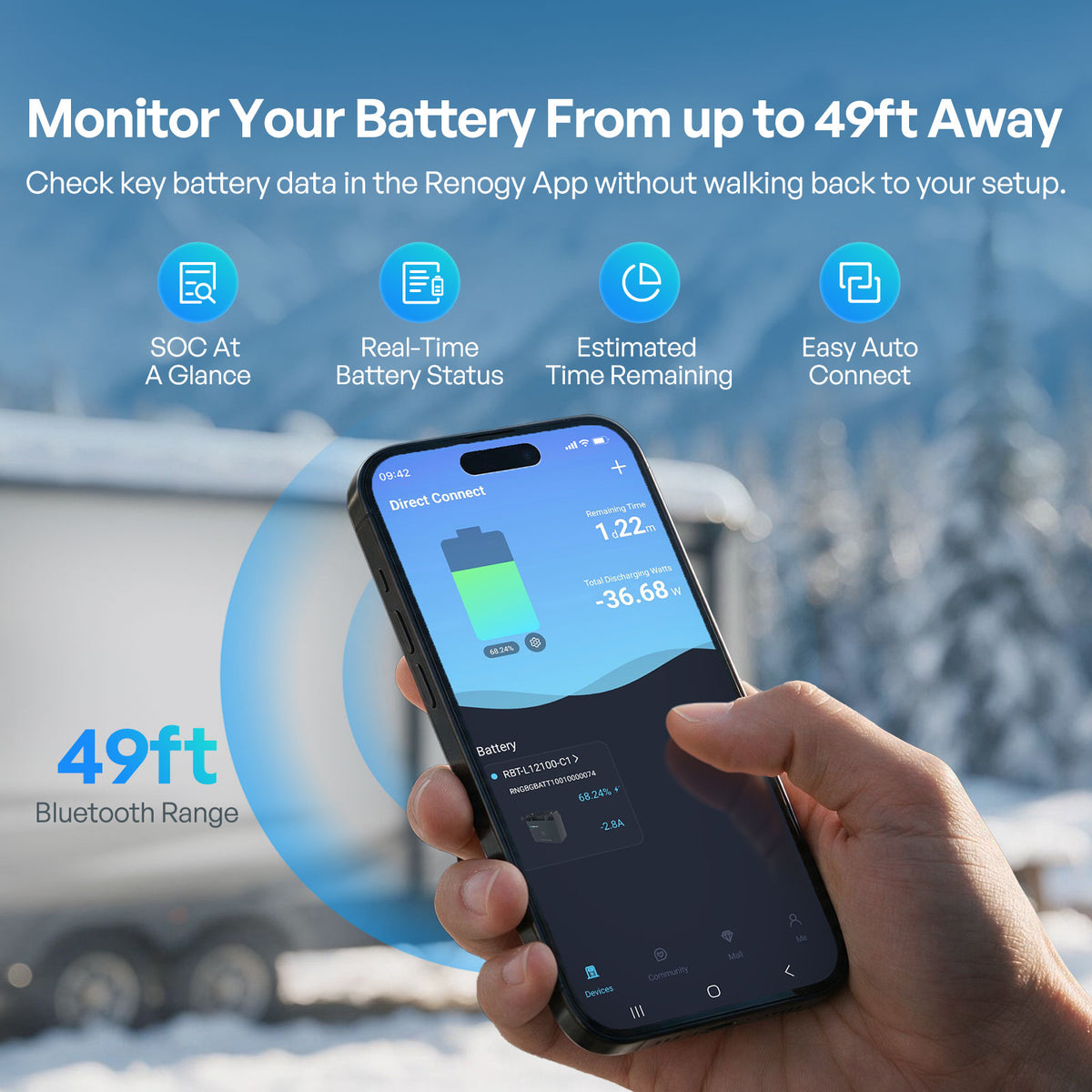

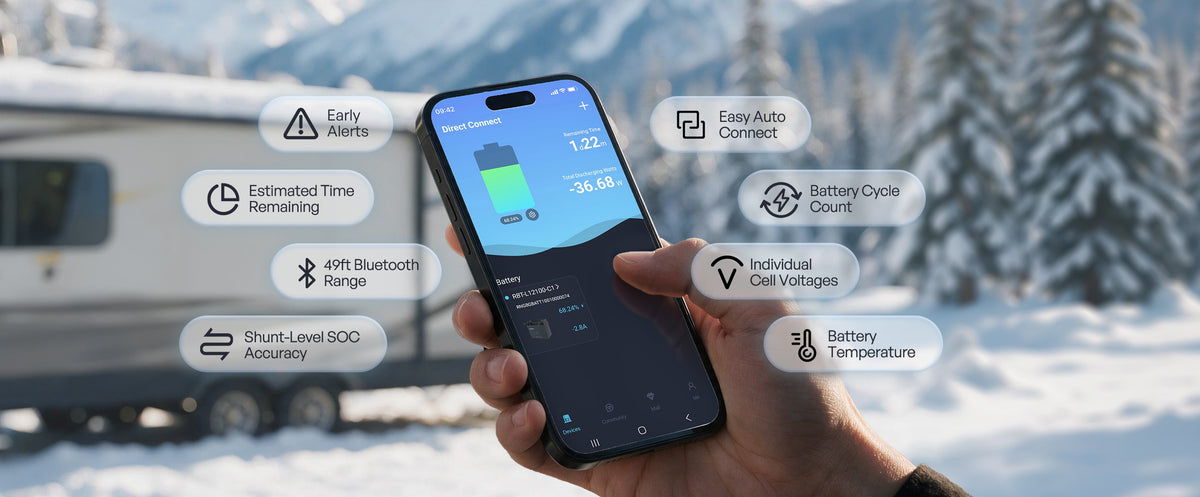

Real-Time Battery Insights, Right on Your Phone

With built-in Bluetooth, the Renogy App puts key battery information at your fingertips, helping you monitor status, track performance, and stay informed wherever you are within range.

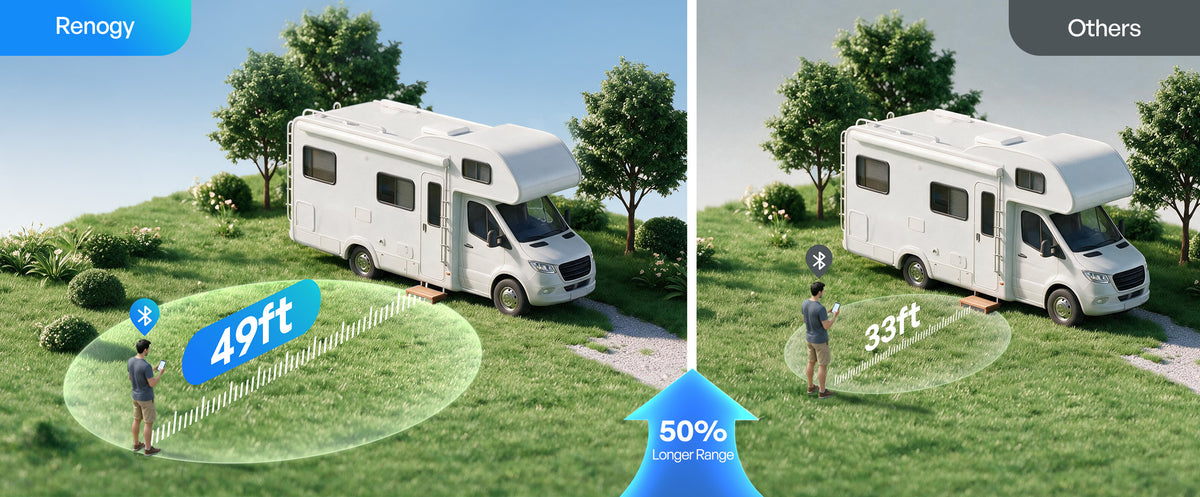

50% Longer Bluetooth Range for Easier Monitoring

Monitor battery status from up to 49ft away through the Renogy App, giving you more freedom to stay connected around your RV or Off-Grid setup.

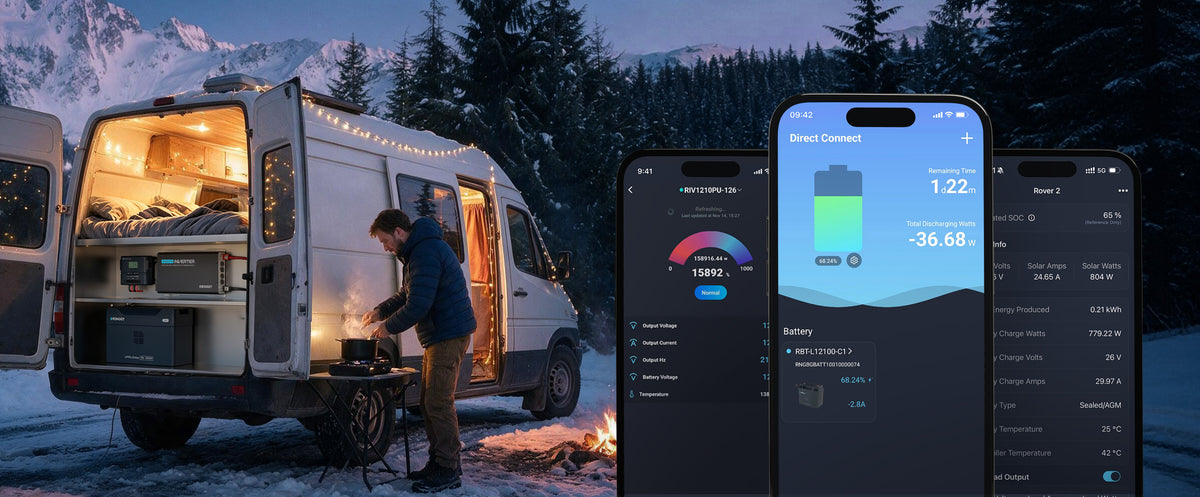

One App. Simplified Energy Management.

Connect your Reserve Mini Smart Battery and compatible Renogy devices in the Renogy App to monitor your entire setup from one place, making it easier to check system status and stay in control.
Real-Time Battery Insights, Right on Your Phone

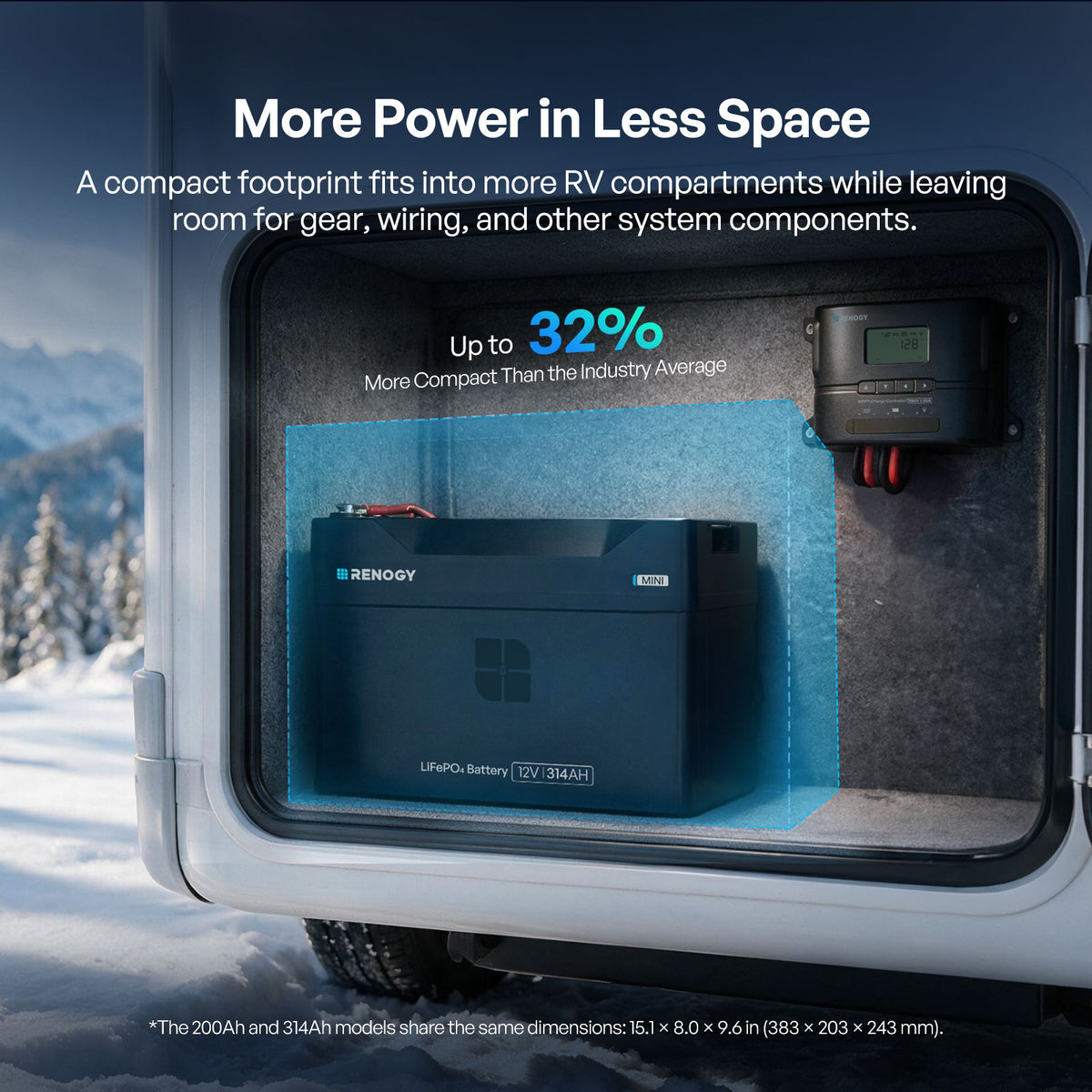

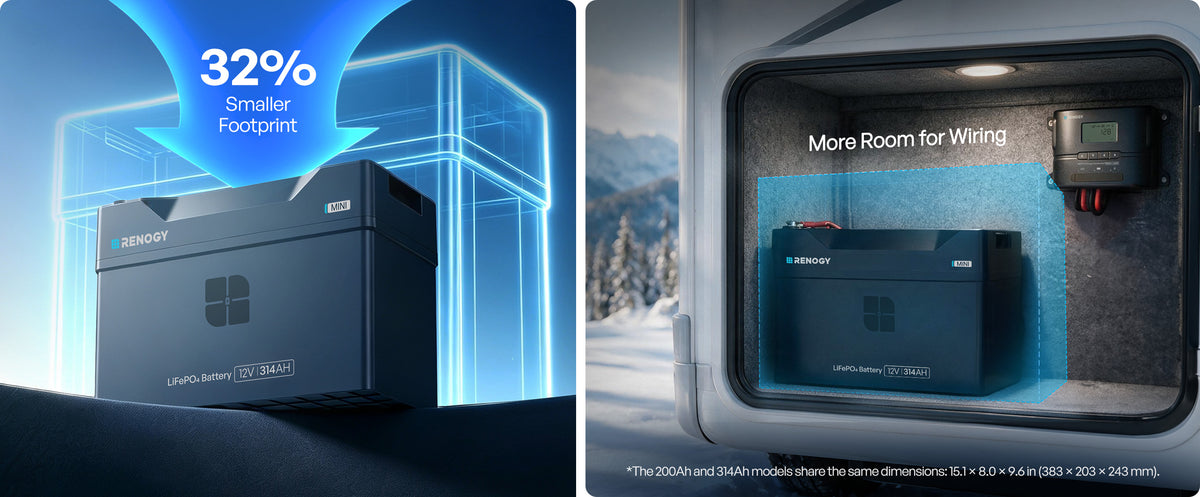

More Power in Less Space

A compact footprint makes it easier to add more battery capacity while leaving room for wiring, accessories, and other RV essentials.

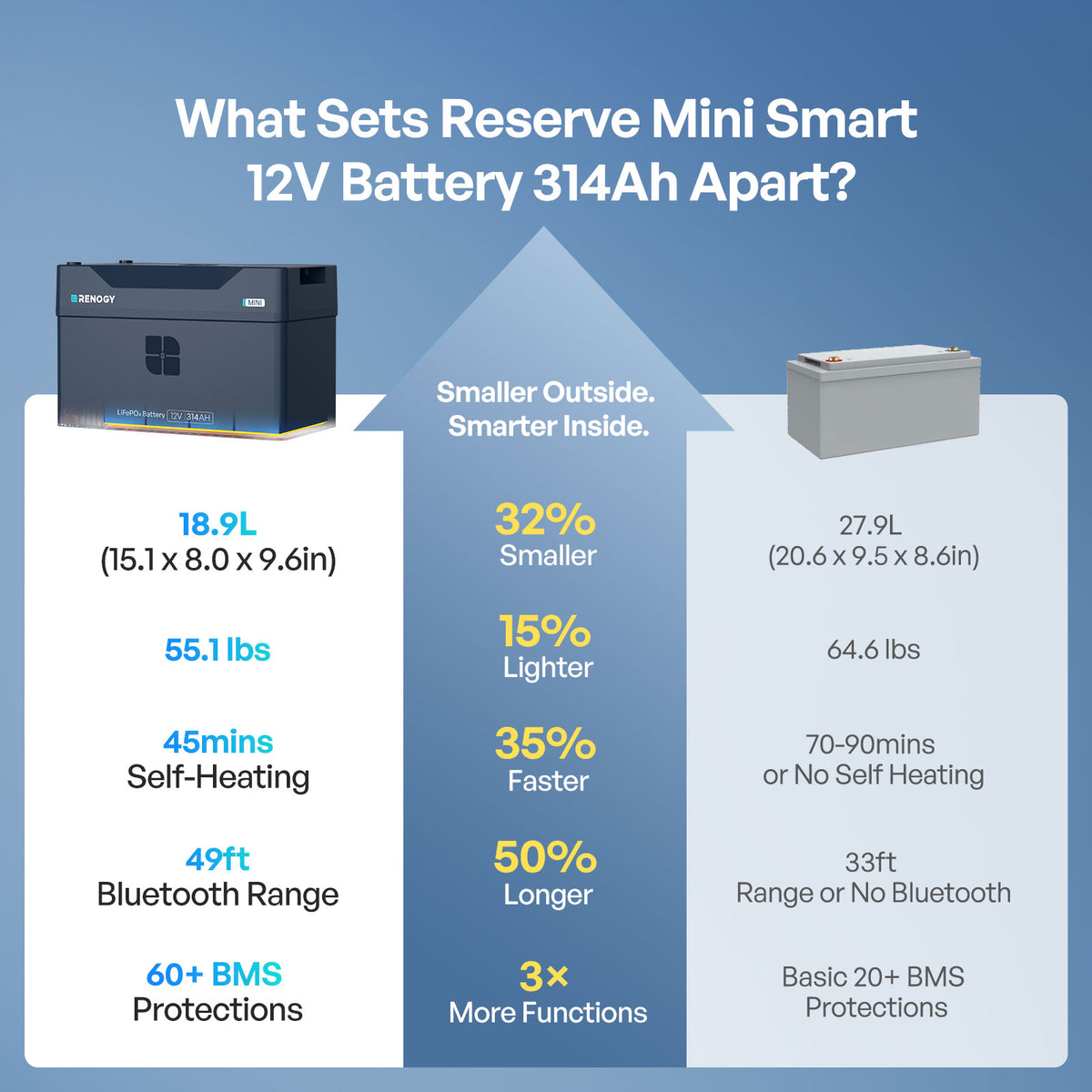

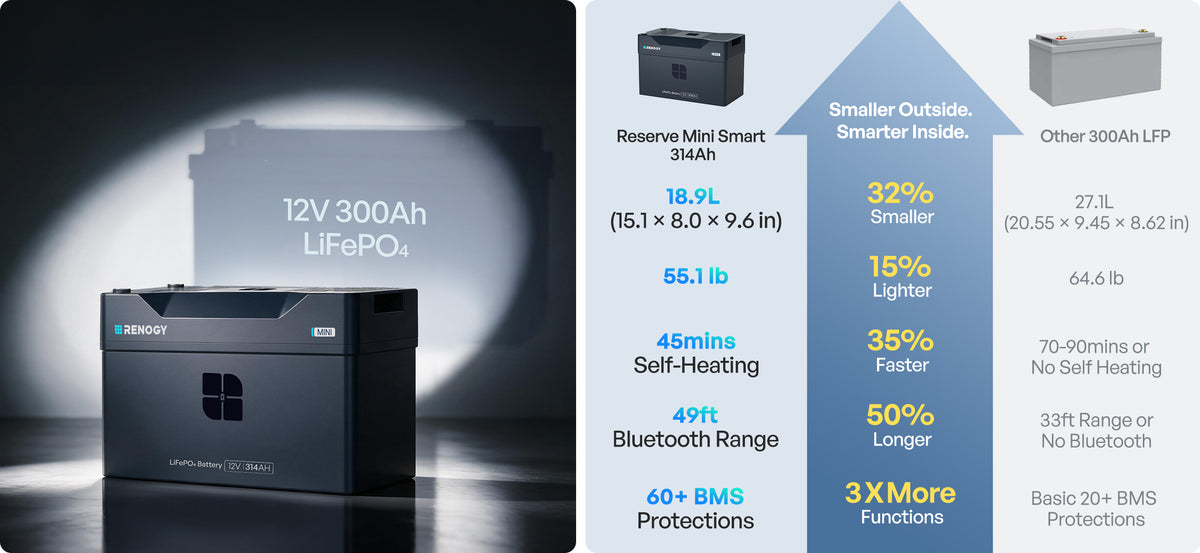

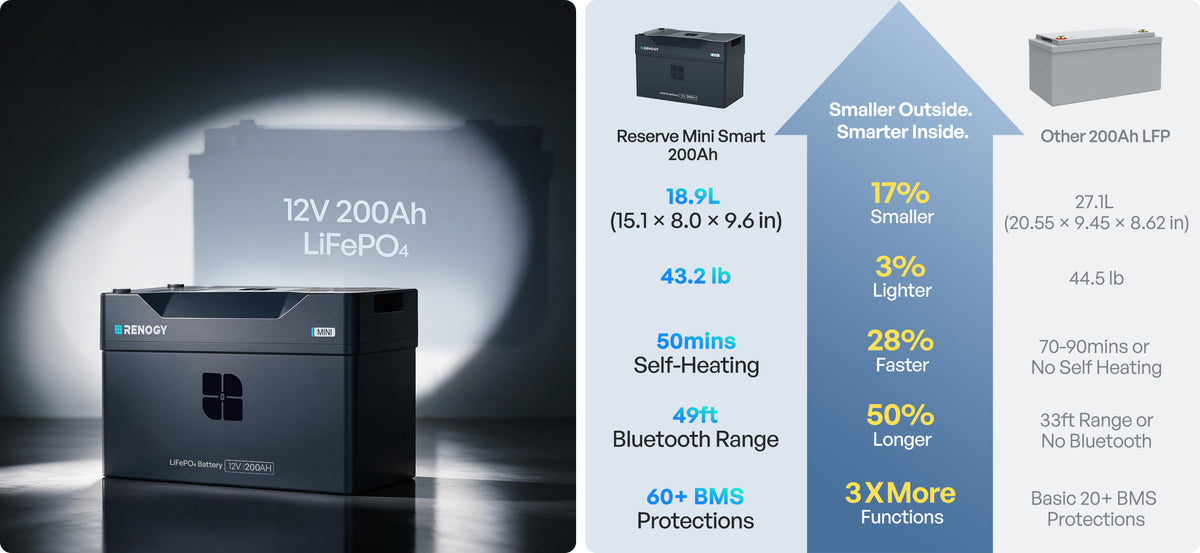

What Sets Reserve Mini Smart 12V Battery Apart?

What Sets Reserve Mini Smart 12V Battery Apart?

What Sets Reserve Mini Smart 12V Battery Apart?

One 314Ah Battery for Everyday RV Essentials

Keep daily comforts running for about 1.6 days, so you can stay off grid longer with fewer charging worries.

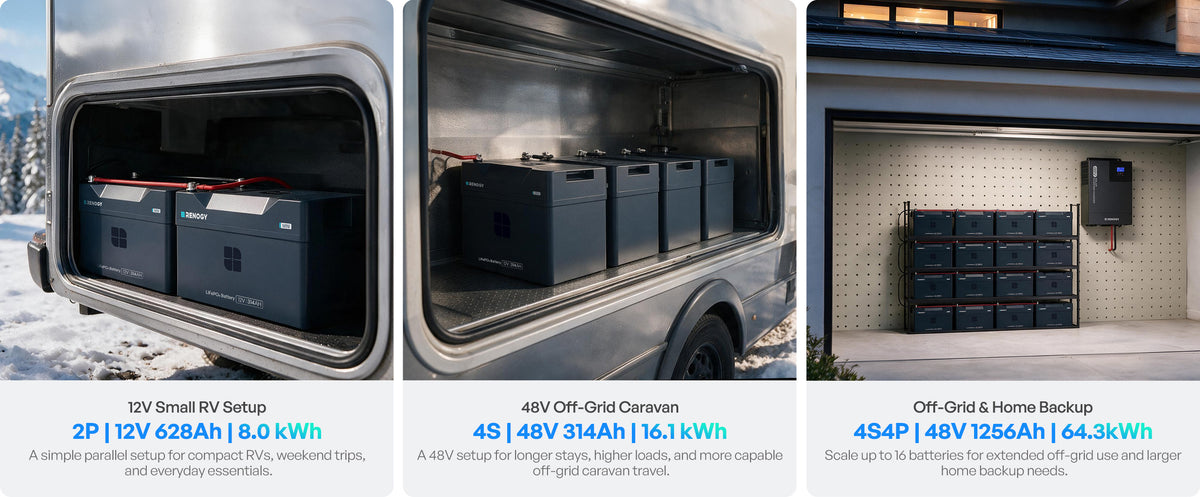

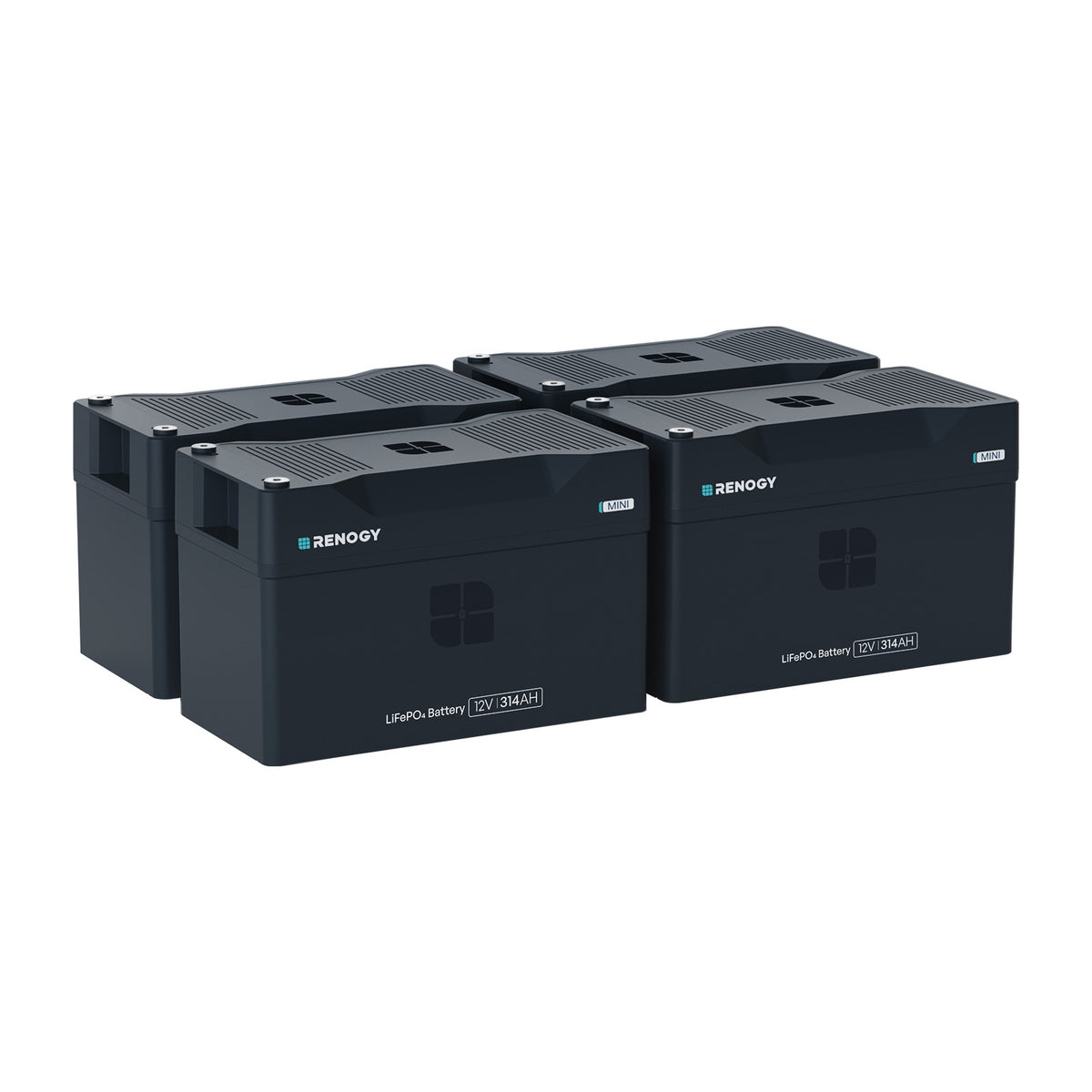

Expand in Series or Parallel for the Power You Need

From compact RV setups to 48V off grid caravans and whole home backup, Reserve Mini Smart 314Ah expands flexibly to match the way you travel and live.

Built for Wherever You Need Power

From weekend camping and home backup to off-grid cabins and marine systems, Reserve Smart Mini
delivers dependable power across a wide range of applications.
One 314Ah Battery for Everyday RV Essentials

Charge Your Way, Wherever You Go

Charge Your Way, Wherever You Go

From home to campsite to Off-Grid destinations, five charging options give you more flexibility to
keep your battery powered wherever your journey takes you.
From home to campsite to Off-Grid destinations, five charging options give you more flexibility to
keep your battery powered wherever your journey takes you.

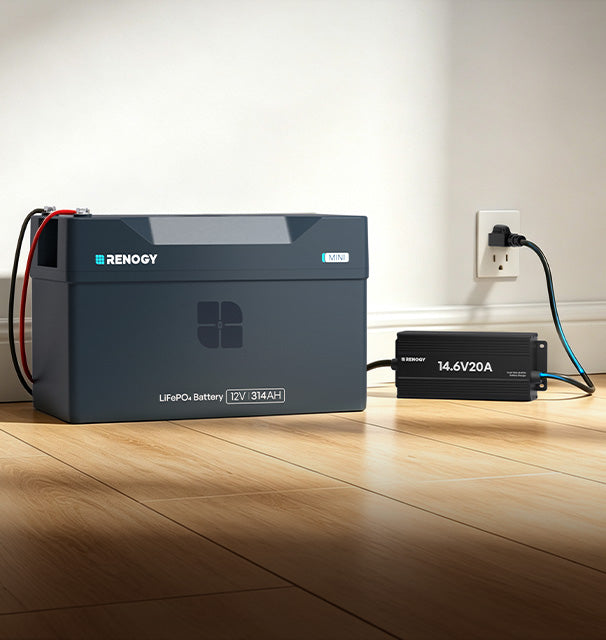

AC ChargingAC Charging
AC Charging

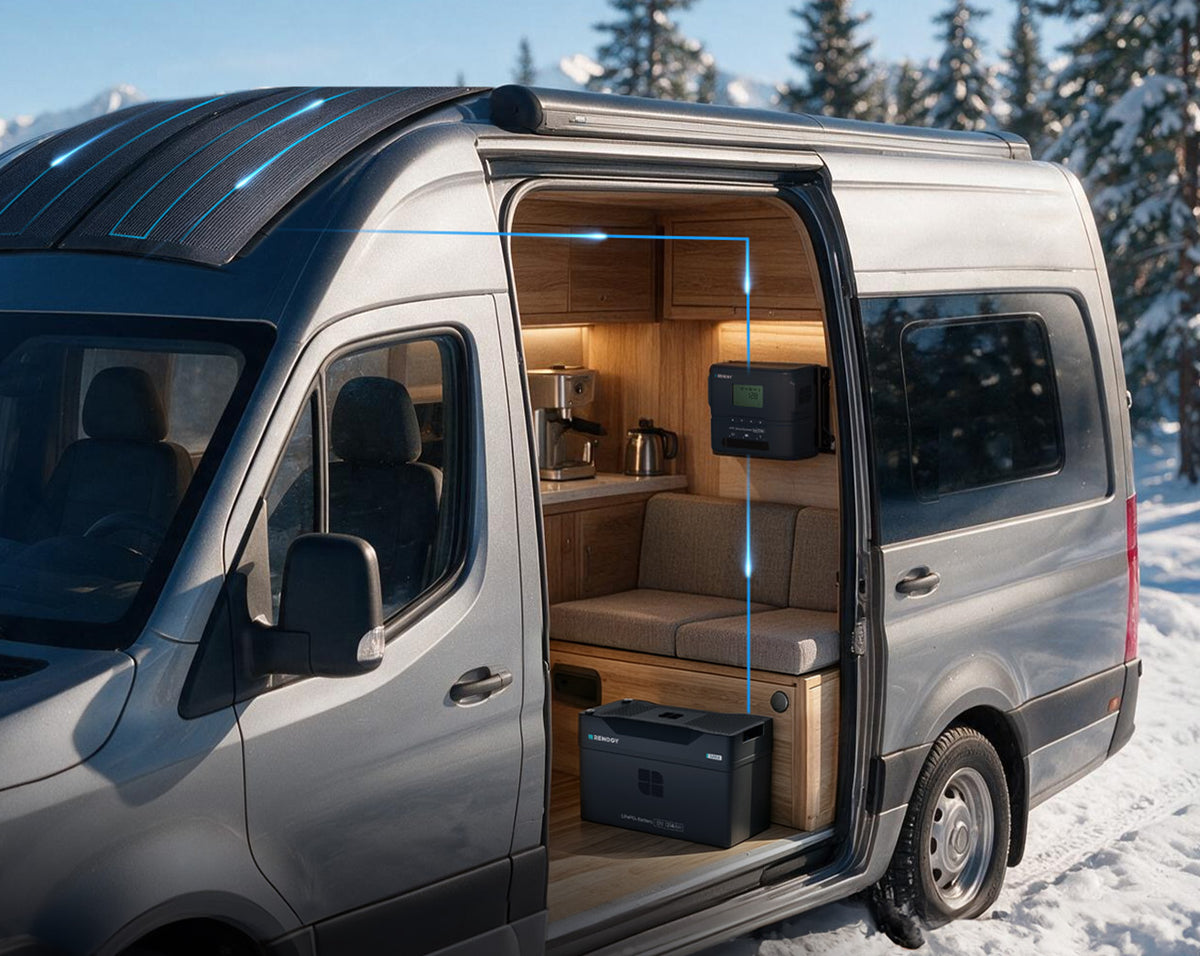

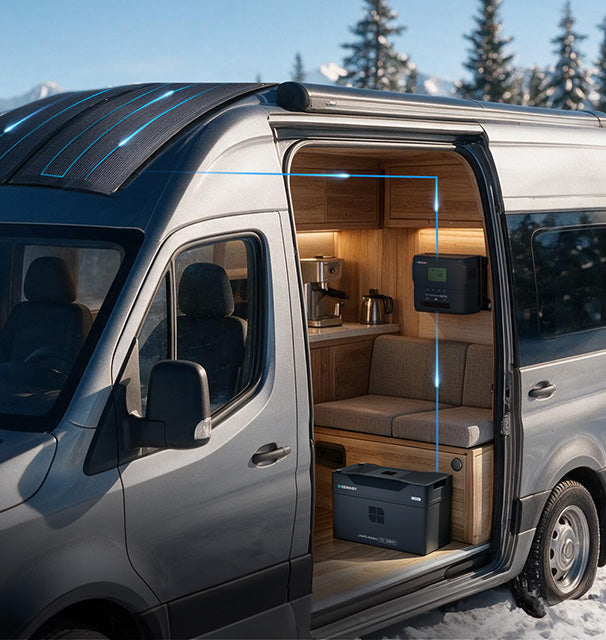

Solar + MPPTSolar + MPPT
Solar + MPPT

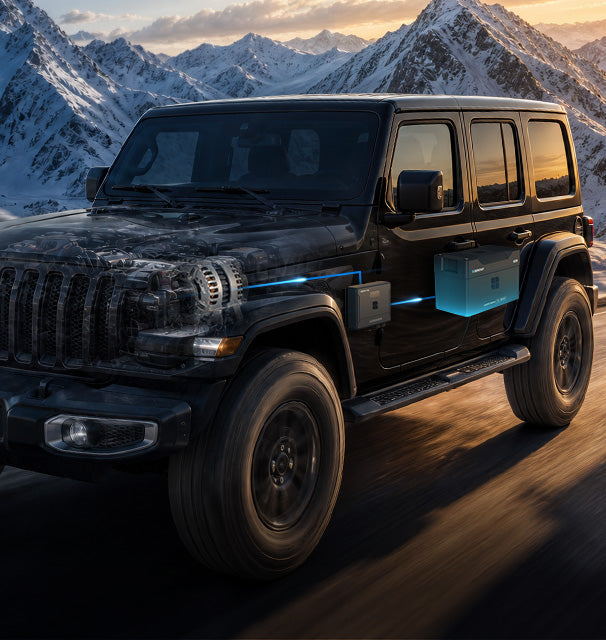

Alternator + DC-DC ChargerAlternator + DC-DC Charger
Alternator + DC-DC Charger

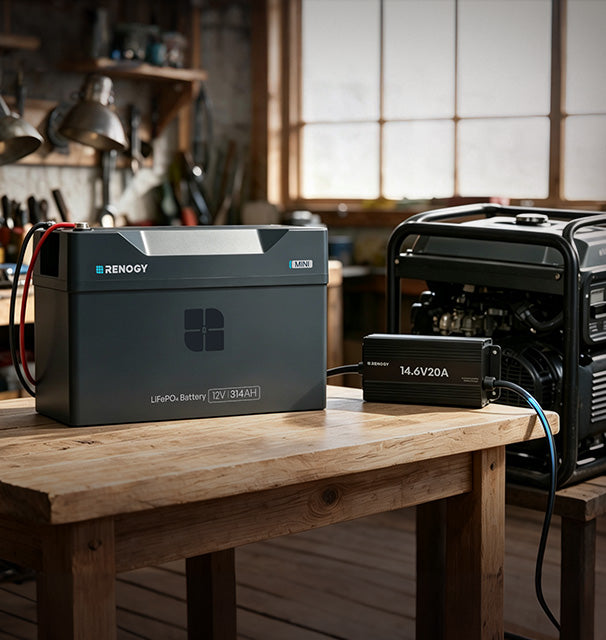

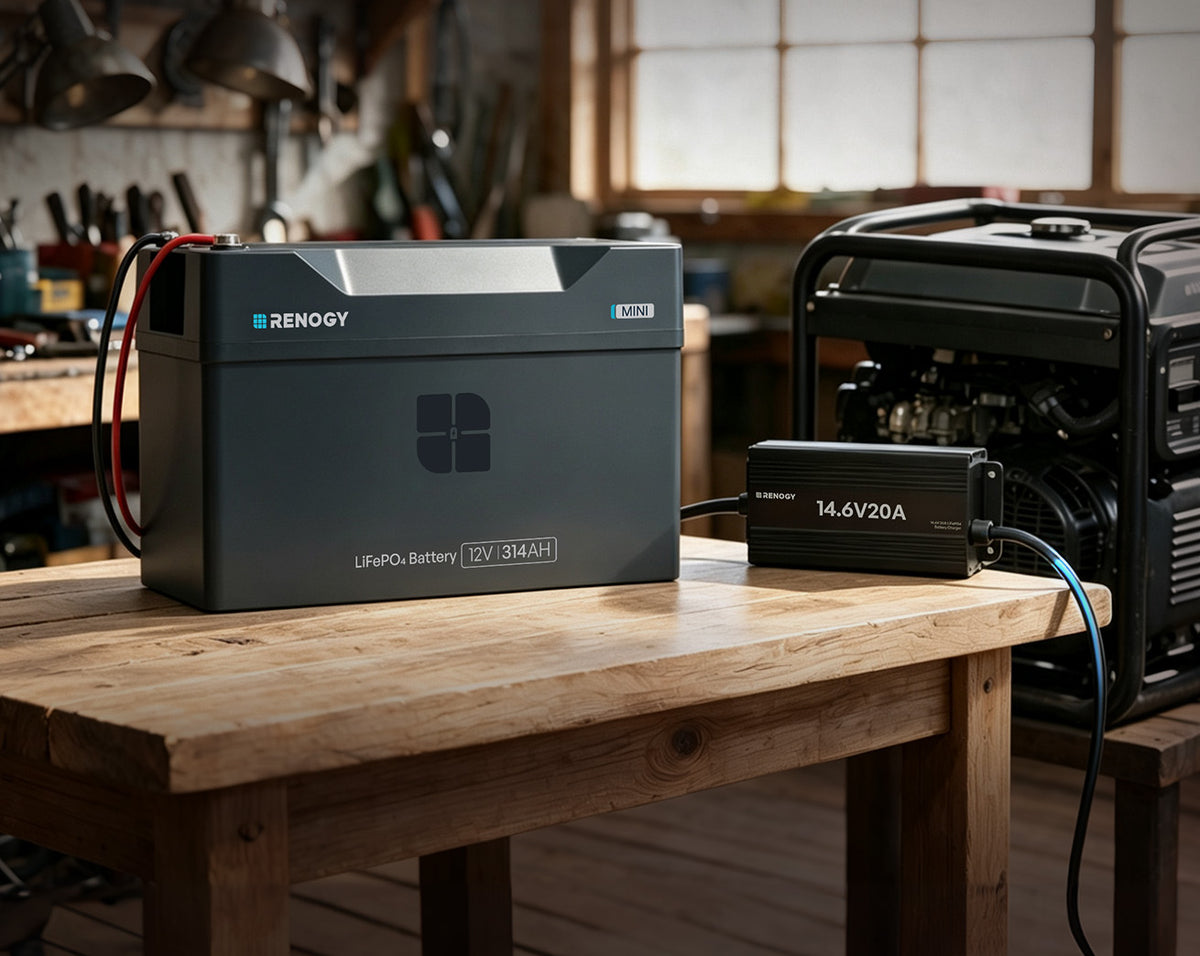

Generator + AC ChargerGenerator + AC Charger
Generator + AC Charger

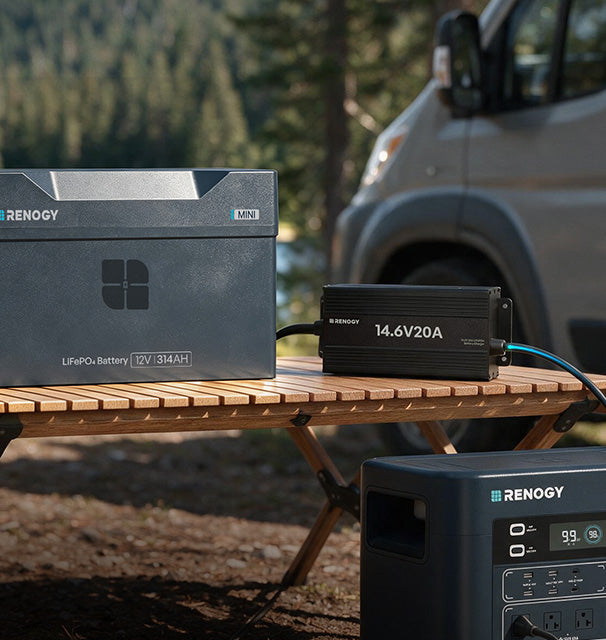

Portable Power Station + AC ChargerPortable Power Station + AC Charger
Portable Power Station + AC Charger
Global Partners

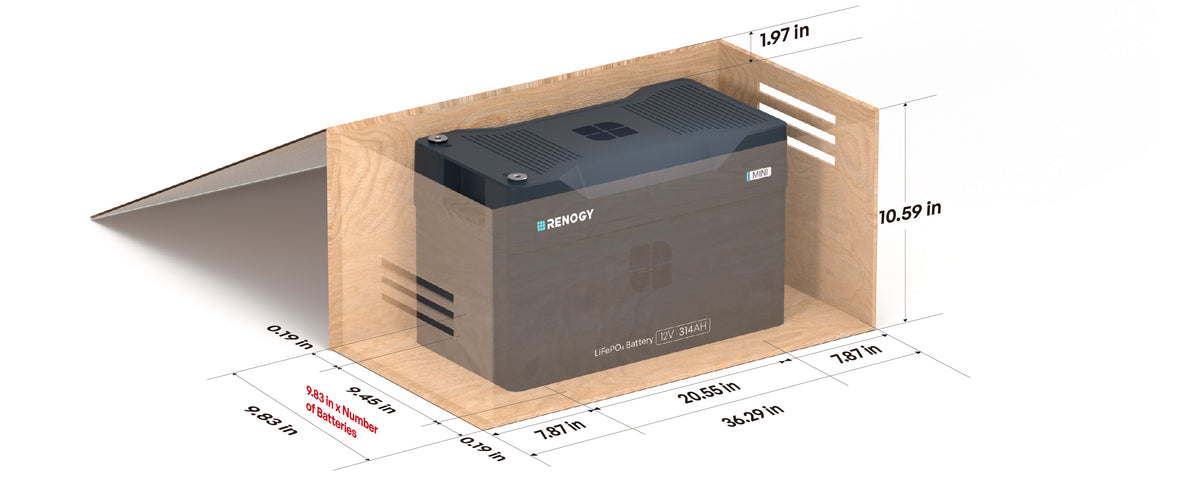

Dimensional Reference Guide

Before installing the battery, ensure a clearance of 1.97-3.94in (5-10cm) above the battery, and leave at least

7.87in (20cm) on the side with the busbars for optimal installation.

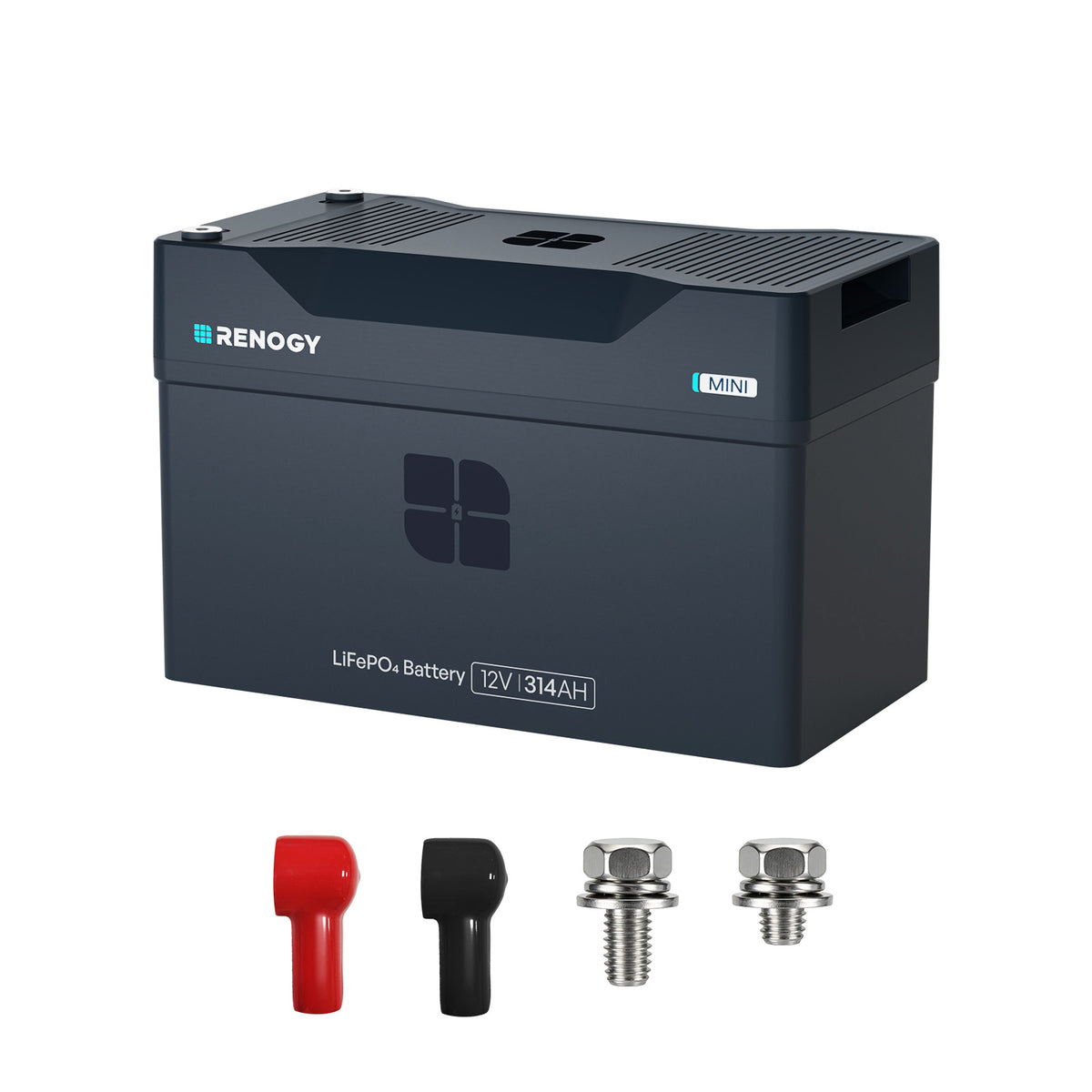

12V 3140Ah Package Includes

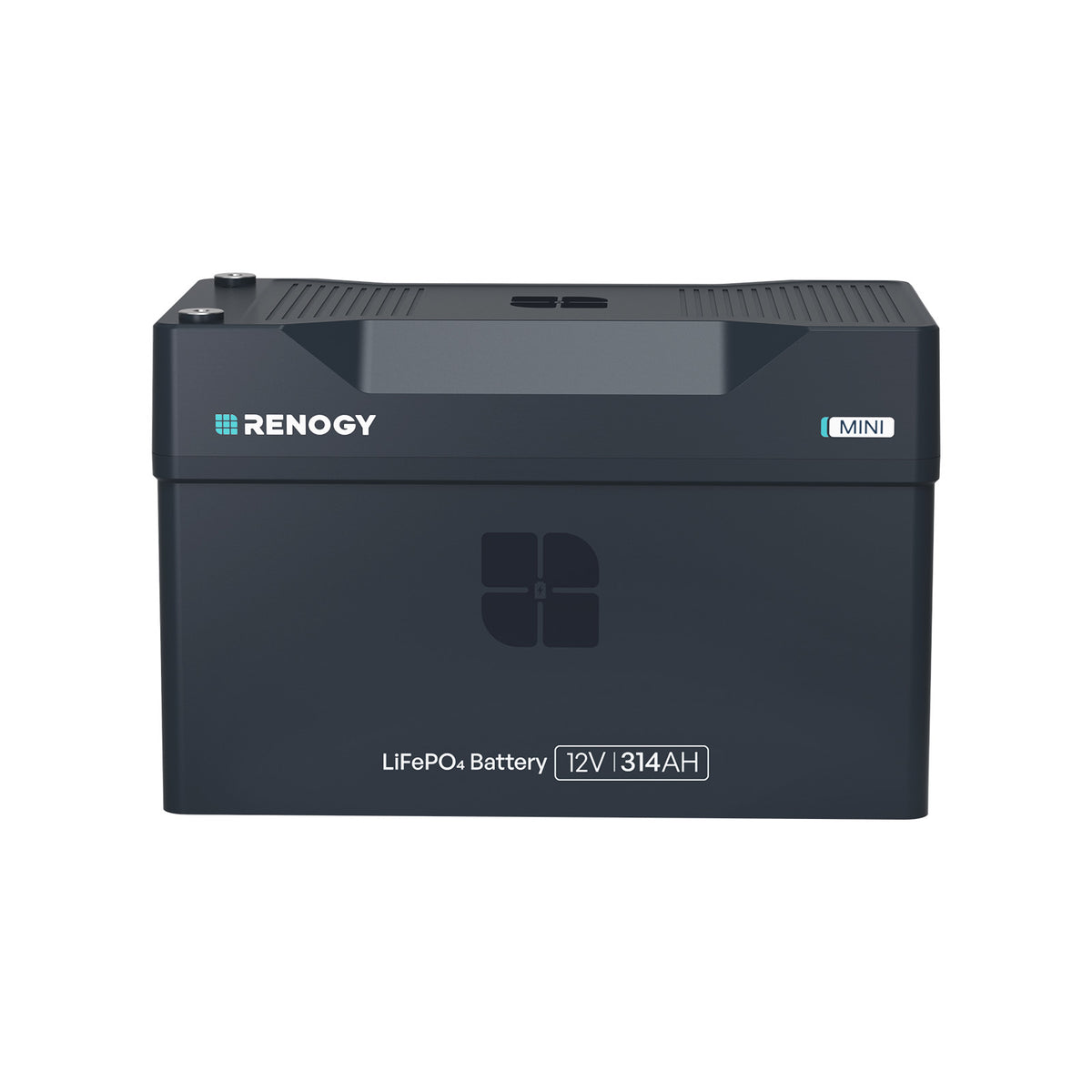

Reserve Mini Smart 12V 314Ah LiFePO4 Battery

Reserve Mini Smart 12V 314Ah LiFePO4 Battery

x 1

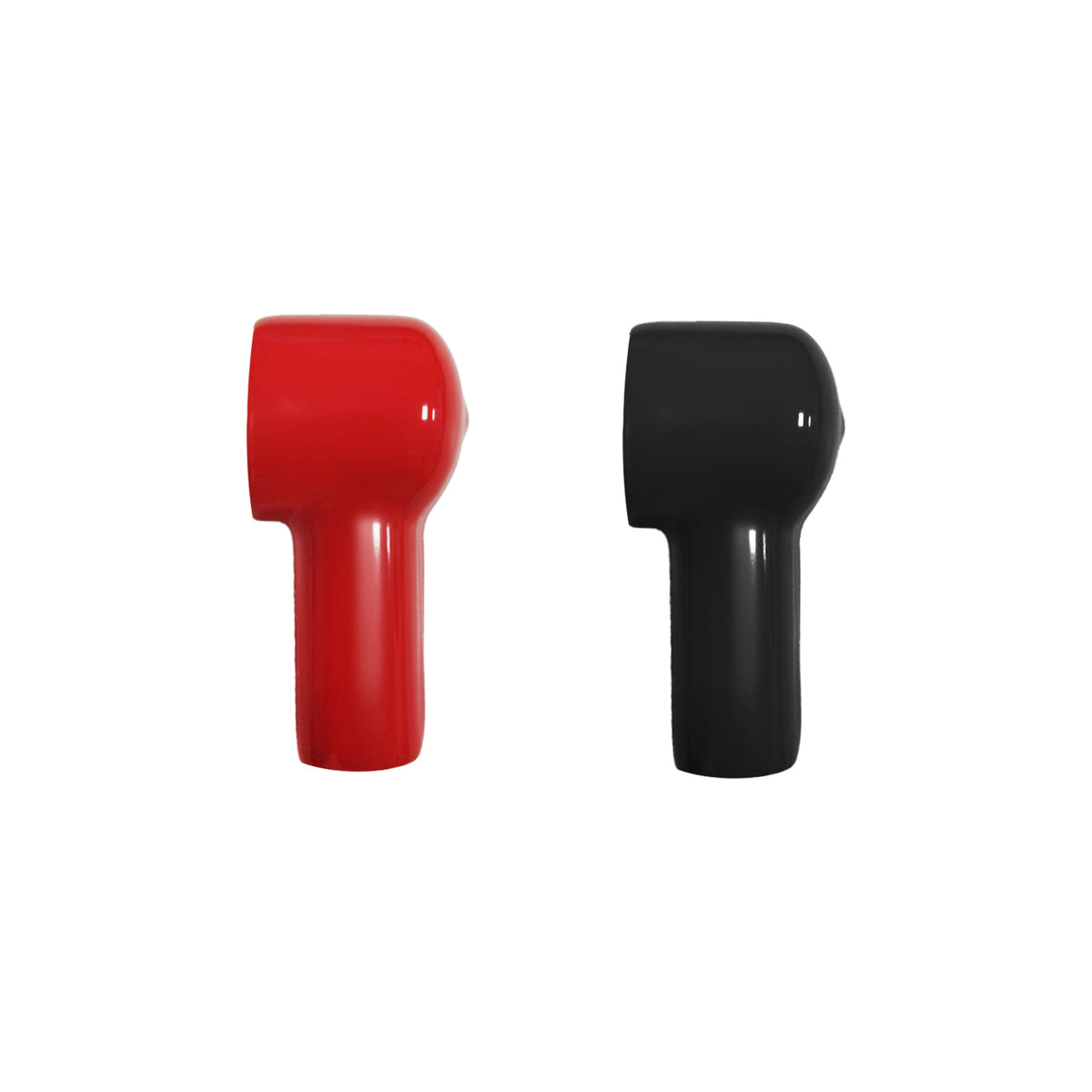

Insulation Sleeves

Insulation Sleeves

x 2
Long Terminal Bolts

Long Terminal Bolts

x 2

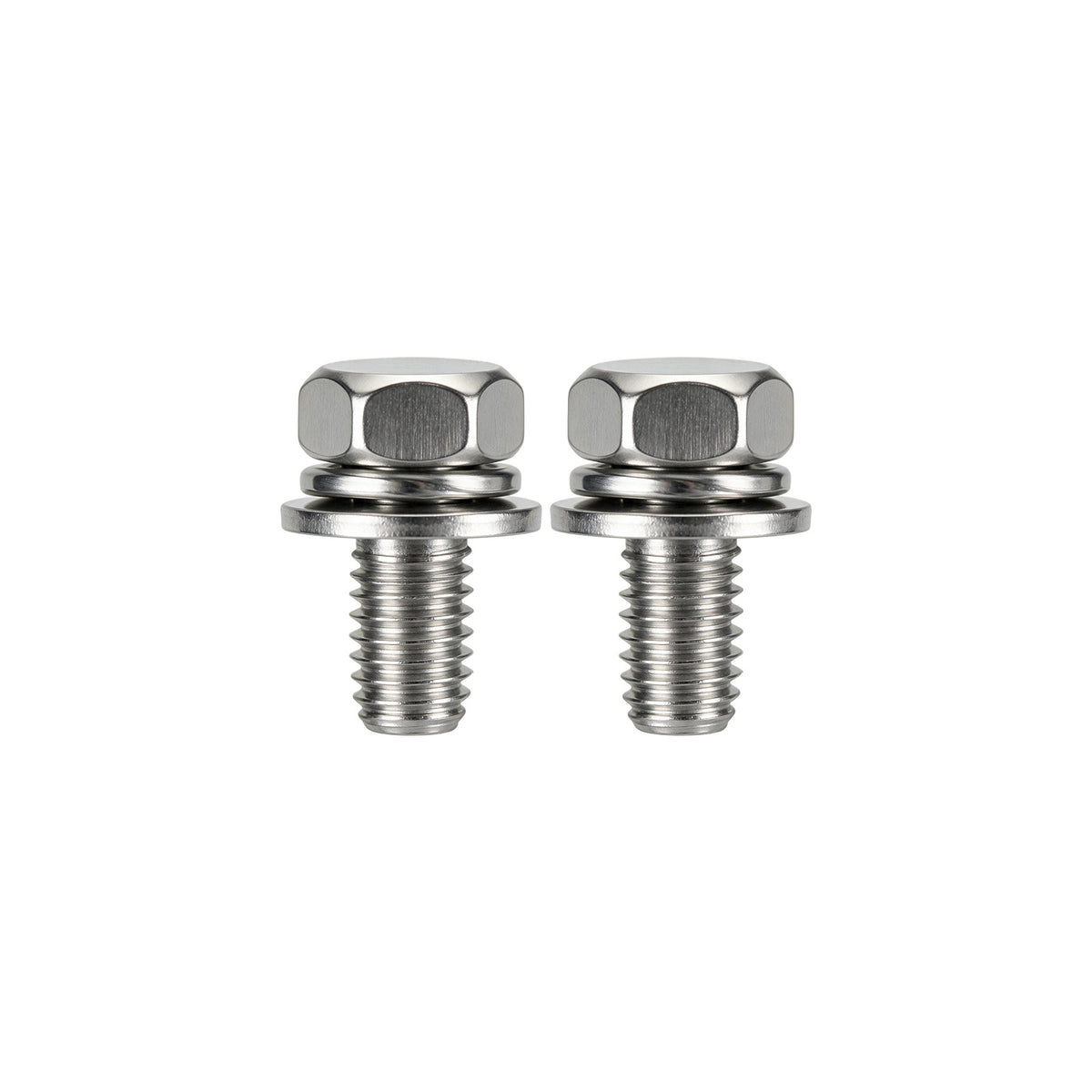

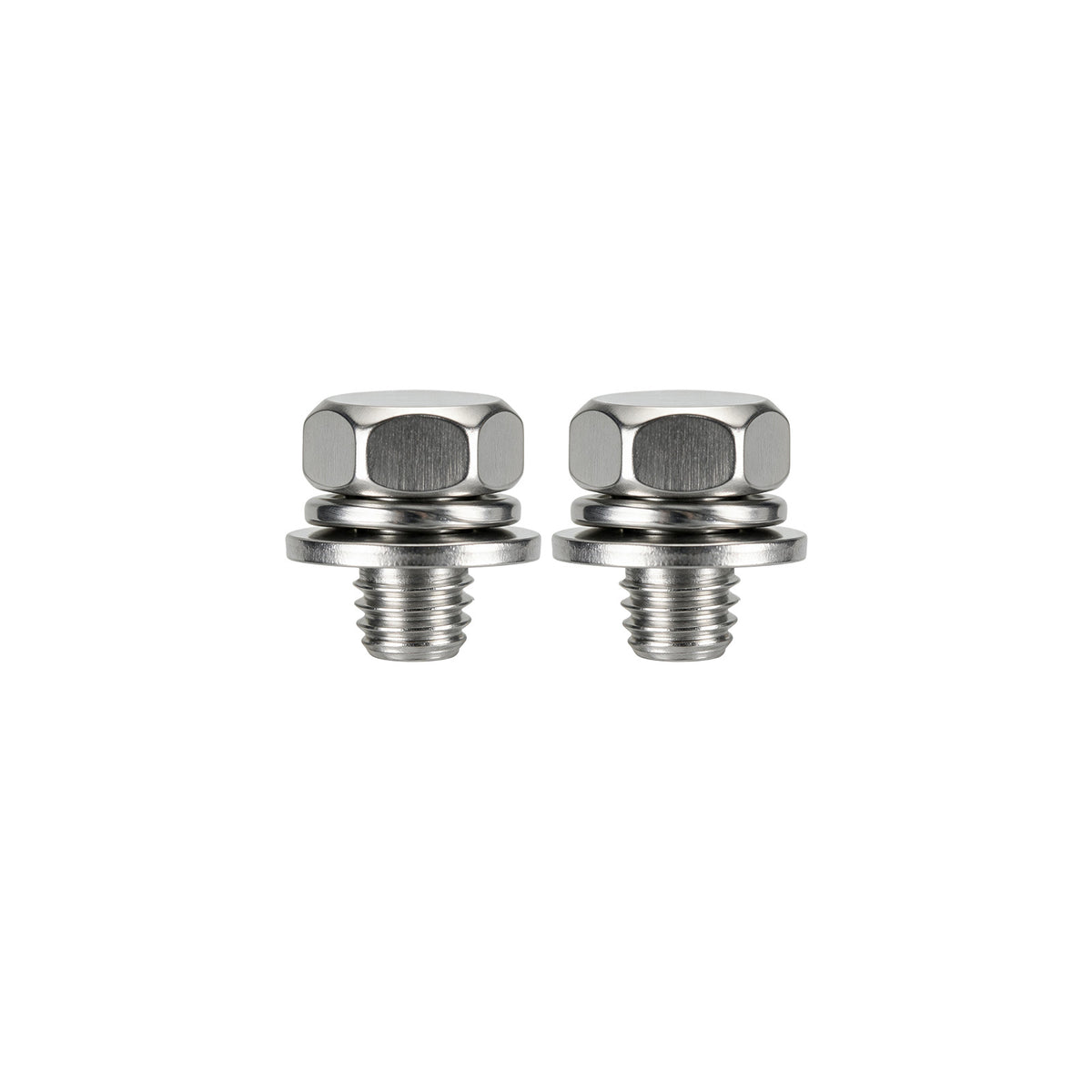

Terminal Bolts

Terminal Bolts

x 2

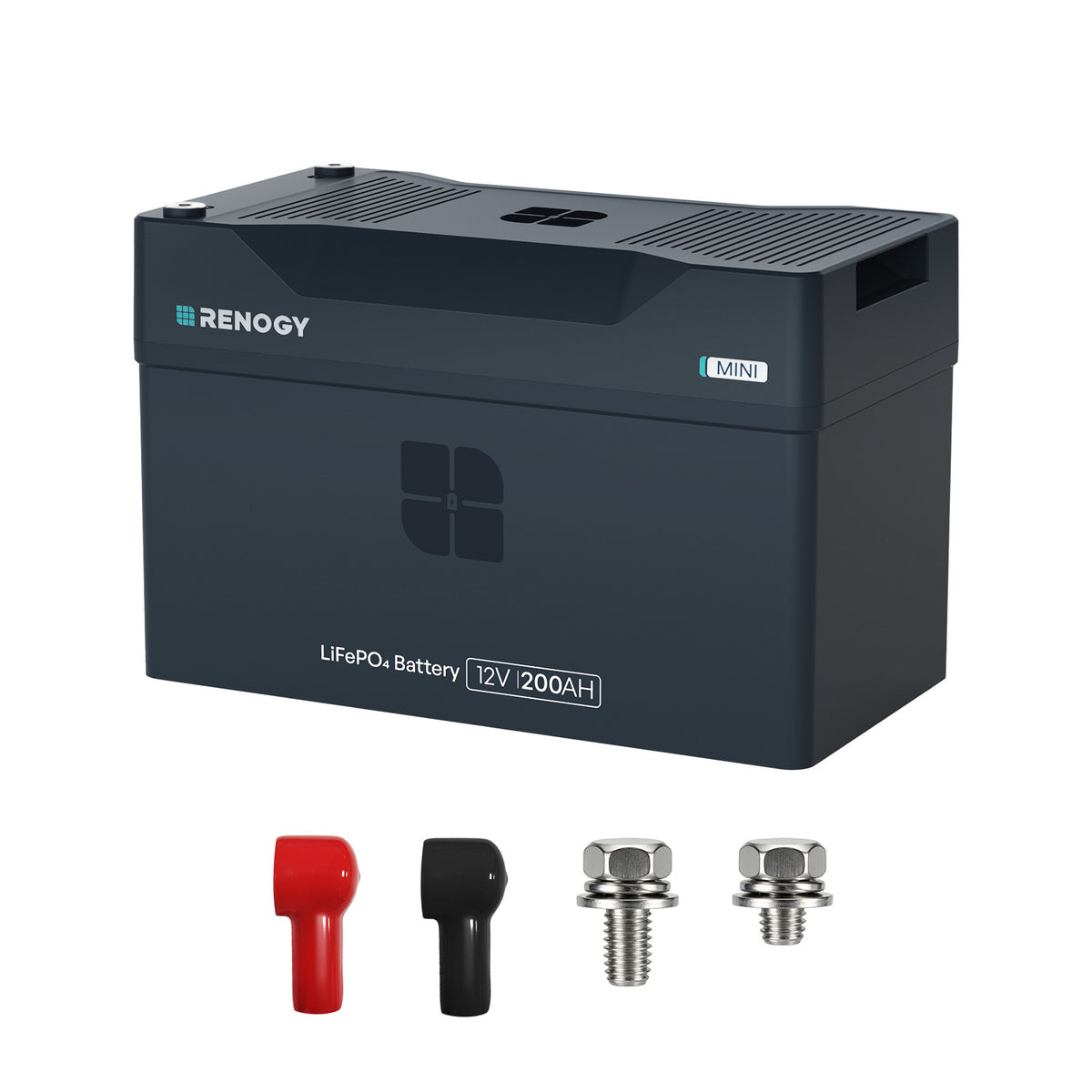

12V 200Ah Package Includes

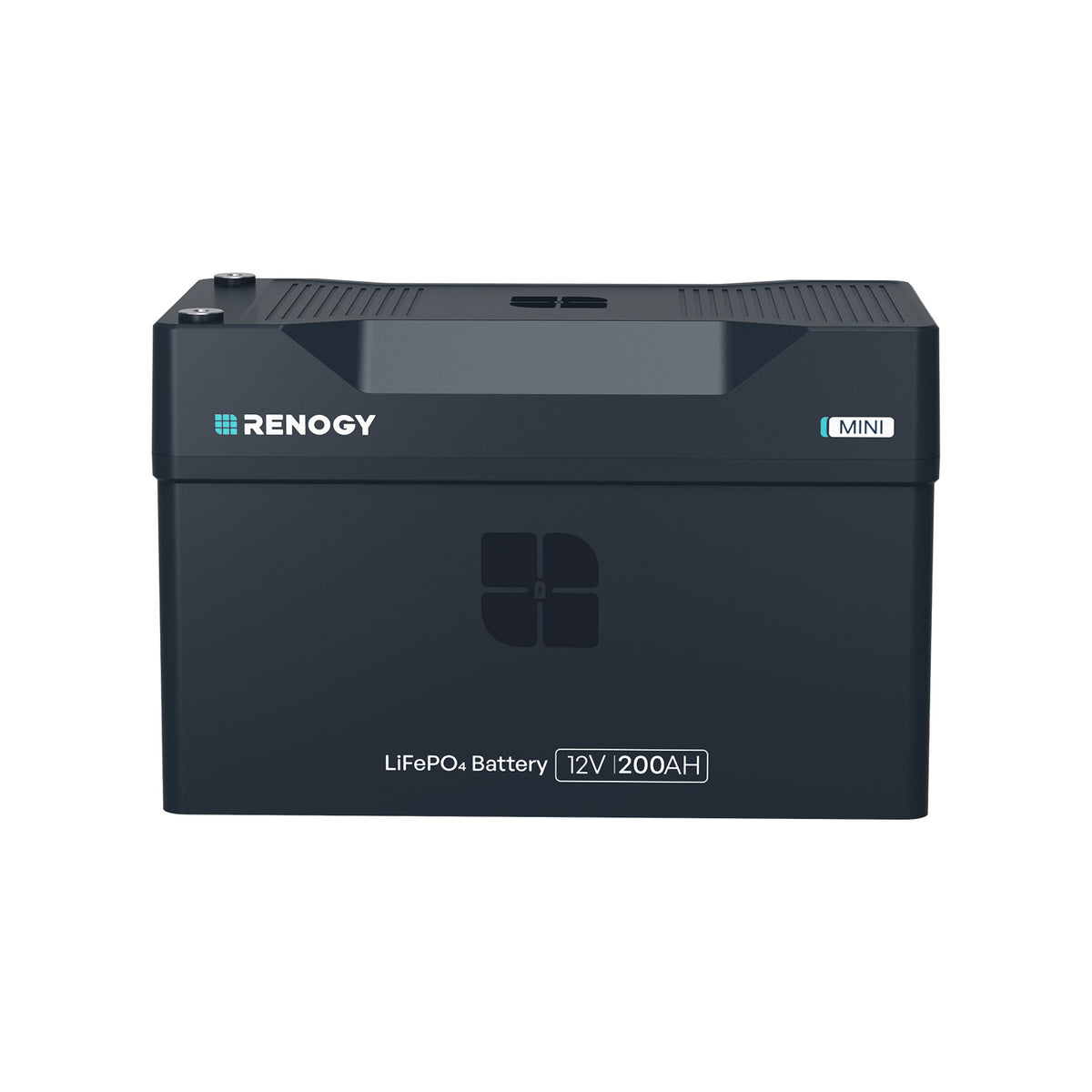

Reserve Mini Smart 12V 200Ah LiFePO4 Battery

Reserve Mini Smart 12V 200Ah LiFePO4 Battery

x 1
Insulation Sleeves

Insulation Sleeves

x 2
Long Terminal Bolts

Long Terminal Bolts

x 2
Terminal Bolts

Terminal Bolts

x 2

Specification

A table comparing the facets of 2 products
Facet
Reserve Mini Smart 12V 200Ah/300Ah LiFePO4 Battery | Renogy AU
Reserve Mini Smart 12V 200Ah/300Ah LiFePO4 Battery | Renogy AU
Product Name
Product Name Reserve Mini Smart 12V 314Ah LiFePO4 BatteryReserve Mini Smart 12V 200Ah LiFePO4 Battery
Cell Type
Cell Type Lithium Iron PhosphateLithium Iron Phosphate
Warranty
Warranty 5-year5-year
Cycle Life
Cycle Life >5000 cycles @ 80% DOD>5000 cycles @ 80% DOD
Nominal Voltage
Nominal Voltage 12.8V12.8V
Rated Capacity
Rated Capacity 314Ah200Ah
Energy
Energy 4,019Wh2,560Wh
Max. Expansion (Parallel & Series)
Max. Expansion (Parallel & Series) Series &Parallel (4S & 4P)Series &Parallel (4S & 4P)
Certifications
Certifications MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCAMSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Communication
Communication BluetoothBluetooth
Self-Heating Power
Self-Heating Power 140W80W
Self-Heating Speed
Self-Heating Speed 45min from -10°C to 0°C; 95min from -20°C to 0°C50min from -10°C to 0°C; 100min from -20°C to 0°C
BMS
BMS 220A205A
Max. Continuous Output Power
Max. Continuous Output Power 2,560W2,560W
Max. Continuous Charge Current
Max. Continuous Charge Current 215A165A
Max. Continuous Discharge Current
Max. Continuous Discharge Current 220A205A
Max. Discharge Current Peak
Max. Discharge Current Peak 400A@10s; 1,000A@1s400A@10s; 1,000A@1s
Charge Method
Charge Method CC-CV (Constant Current-Constant Voltage)CC-CV (Constant Current-Constant Voltage)
Charge Voltage
Charge Voltage 14.4V14.4V
Charge Temperature Range
Charge Temperature Range -4 to 122°F (-20 to 50°C)-4 to 122°F (-20 to 50°C)
Discharge Temperature Range
Discharge Temperature Range -4 to 122°F (-20 to 50°C)-4 to 122°F (-20 to 50°C)
Storage Temperature Range
Storage Temperature Range -4 to 140°F (-20 to 60°C)-4 to 140°F (-20 to 60°C)
Low-Temperature Protection
Low-Temperature Protection <32°F (0°C)<32°F (0°C)
Automatic Discharge Cut-Off
Automatic Discharge Cut-Off Yes (via BMS)Yes (via BMS)
Automatic Charge Cut-Off
Automatic Charge Cut-Off Yes (via BMS)Yes (via BMS)
Automatic Charge Recovery
Automatic Charge Recovery Yes (when temperature rises above 32°F/0°C)Yes (when temperature rises above 32°F/0°C)
Terminals Bolt Size
Terminals Bolt Size M8M8
Weight (Approx.)
Weight (Approx.) 55.1 lbs (25.0kg)43.2 lbs (19.6kg)
Dimension
Dimension 15.1 x 8.0 x 9.6 in (383 x 203 x 243mm)15.1 x 8.0 x 9.6 in (383 x 203 x 243mm)
Housing Material
Housing Material ABS+PC (V0 flame-retardant rating)ABS+PC (V0 flame-retardant rating)
Protection Class
Protection Class IP65IP65

Frequently Asked Questions

Will this battery fit in my existing RV battery compartment?

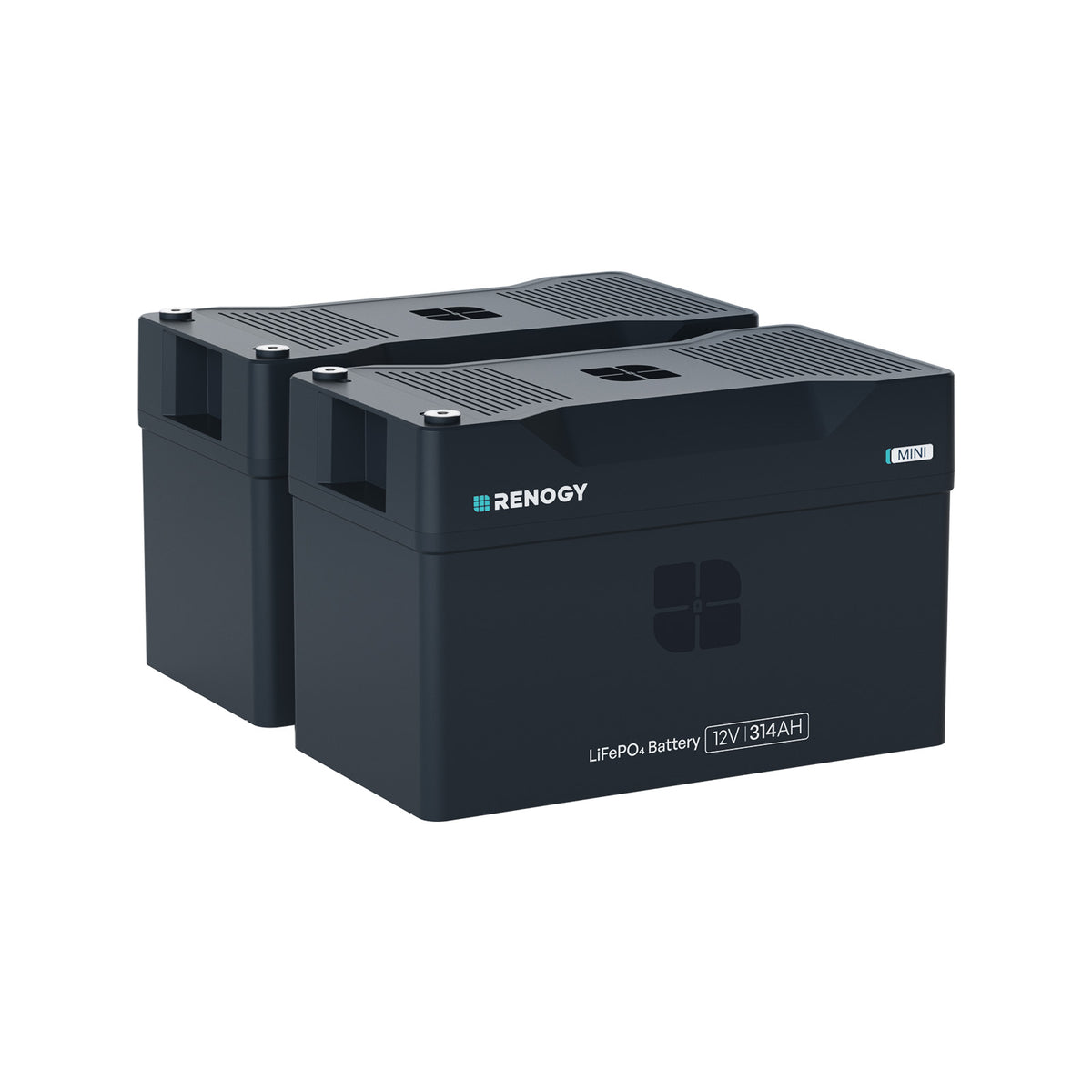

Reserve Mini Smart 314Ah Battery delivers 314Ah of capacity in a compact 15.1 x 8.0 x 9.6in footprint, helping you add more battery power in tight RV spaces. Before purchase, measure your battery compartment and leave enough clearance for wiring, terminals, and securing the battery.

What is the difference between the Reserve Mini Smart 200Ah and 314Ah Batteries?

Both batteries share the same compact size: 15.1 x 8.0 x 9.6in. The 200Ah model weighs 43.2 lbs, while the 314Ah model weighs 55.1 lbs and provides more capacity in the same footprint.

The models also use different self-heating systems. The 200Ah battery uses 80W heating pads, while the 314Ah battery uses 140W heating pads for faster cold-weather warm-up. Choose the 314Ah if you want maximum capacity in the same space, or choose the 200Ah if you want a lighter battery with the same compact fit.

What happens if I charge the battery in cold weather?

When the battery temperature drops below 41°F (5°C), self-heating can start automatically once stable charging is detected. This helps warm the battery so charging can resume safely in cold conditions.

Self-heating starts when the charge current reaches at least 15A and the charger voltage is at least 0.8V above the battery voltage. Heating stops automatically when the battery temperature rises above 50°F (10°C).

How long will the Reserve Mini Smart 314Ah Battery last?

The battery is rated for over 5,000 cycles at 80% DOD and is backed by a 5 year warranty, supporting years of regular RV and off grid use.

How can I tell how much battery I have left?

Built-in Bluetooth lets you check SOC, voltage, current, power, remaining time, and battery alerts directly in the Renogy App.

How can I charge this battery?

You can charge it with solar through an MPPT controller, a vehicle alternator through a DC to DC charger, shore or grid power through an AC charger, a generator through an AC charger, or a compatible portable power station through an AC charger.

Can I connect more batteries later if I need more capacity?

Yes. You can expand the system up to 4S4P, with as many as 16 matching Reserve Mini Smart 314Ah / 200Ah batteries.

Can the 314Ah battery handle high power appliances?

Yes. The 314Ah model supports up to 220A continuous discharge, with peak discharge capability of 1,000A for 1 second to help handle brief startup demands. Actual appliance support also depends on your inverter and overall system setup.
