Package Includes

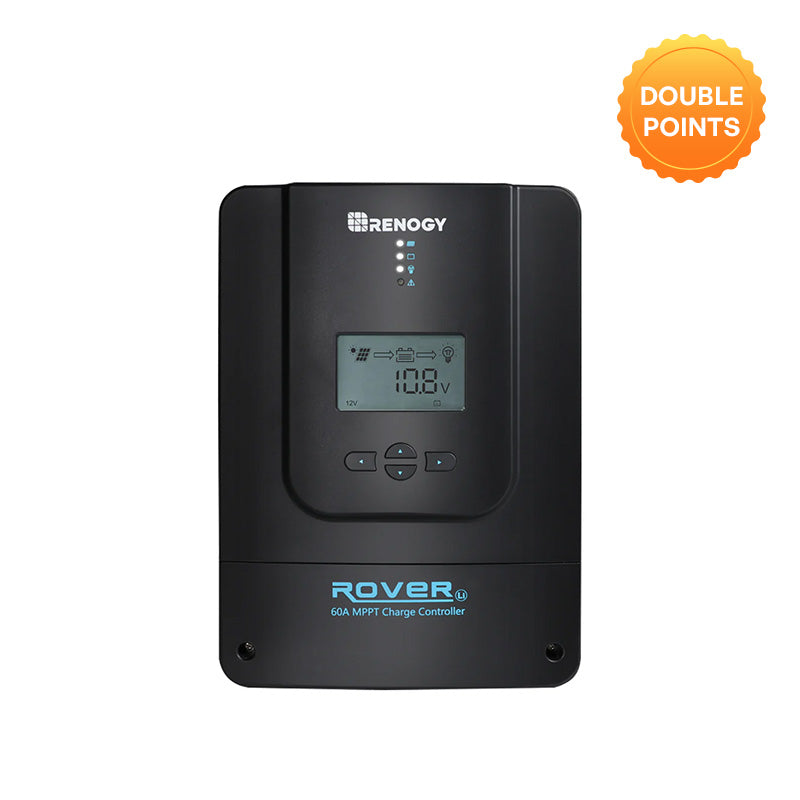

- 1 x Rover Li 60 Amp MPPT Solar Charge Controller
- 1 x Remote Temperature Sensor
- 4 x Mounting Brackets
- Option:1 x BT-1 Bluetooth Module
RENOGY ROVER 20 AMP MPPT SOLAR CHARGE CONTROLLER (RNG-CTRL-RVR20) | |||
---|---|---|---|
Electrical Parameters | Environmental Data | ||
Nominal System Voltage | 12/24V (Auto-Detect for Non-Lithium Batteries) | Protection Level | IP32 |
Rated Charge Current | 20A | Operating Temperature Range | -35°C to 45°C; -31°F to 113°F |
Max. PV Input Voltage | 100 VDC | Storage Temperature Range | -35°C to 75°C; -31°F to 167°F |
Max. PV Input Power | 12V/260W, 24V/520W | Operating / Storage Humidity | ≤ 90%, No Condensation |
Power Consumption | <100mA/12V; <58mA/24V | Temperature Compensation | -3mV/°C/2V |
Max Battery Voltage | 32V | Accessories | |
Ground Type | Negative | Temperature Sensor | 9.8ft cable length |
Electrical Protection | Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries. | Certifications | |
Mechanical Specifications | CE | YES | |
Dimensions |
210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in
|
FCC Class B Part 15 Compliant | YES |
Weight |
3.1 lbs / 1.4 kg
|
Warranty | |
Max. Terminals Size | 8 AWG 10mm2 | Material and workmanship warranty | 2 Year |
RENOGY BT-1 BLUETOOTH MODULE (RCM-BT1) | |||
Compatibility | Operation Specifications | ||
Compatible PWM Charge Controller |
RNG-CTRL-WND10/RNG-CTRL-WND30-LI/RNG-CTRL-ADV30-LI |
Communication Protocol | RS232 |
Compatible MPPT Charge Controller |
RNG-CTRL-RVR20/RNG-CTRL-RVR30/ RNG-CTRL-RVR40/RNG-CTRL-RVR60S/ RNG-CTRL-RVR100 |
Port Type | RJ12 |
Compatible App | Renogy DC Home App available in both the App Store and Google Play | Input Voltage | 5V |
Protection Grade | IP54 | ||
Standby Power Consumption | 0.04W | ||
Mechanical Specifications | Operating Power Consumption | 0.05W | |
Communication Range | ≤82ft (25m) | Serial Baud Rate | Fixed Baud Rate 9600bps |
Cable Length | 16.4 ft (5.00m ) | Certifications | |
Dimensions | 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) | FCC Class B Part 15 Compliant | YES |
Weight | 4.58oz (130g ) | Warranty | |
Operation Temperature | -4°F to 185°F (-20℃~85℃) | Material and workmanship warranty | 1 Year |
