Check for Compatibility
If you are considering expansion. Note that Generation 2 is compatible with Generation 1. If you're unsure about the version you have, our customer support team is ready to assist you.
Take a Closer Look
Our popular 12V 200Ah Core LFP Battery, now upgraded with Bluetooth for smart mobile monitoring.

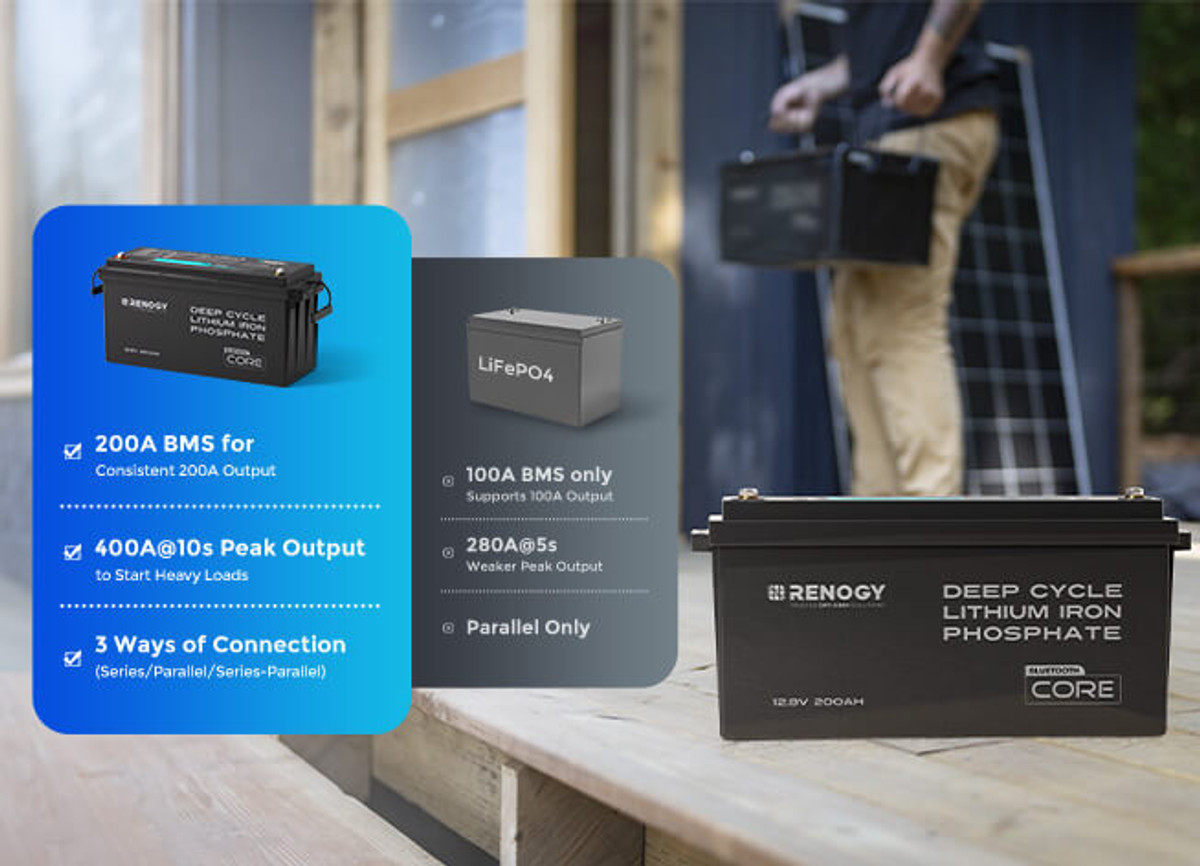

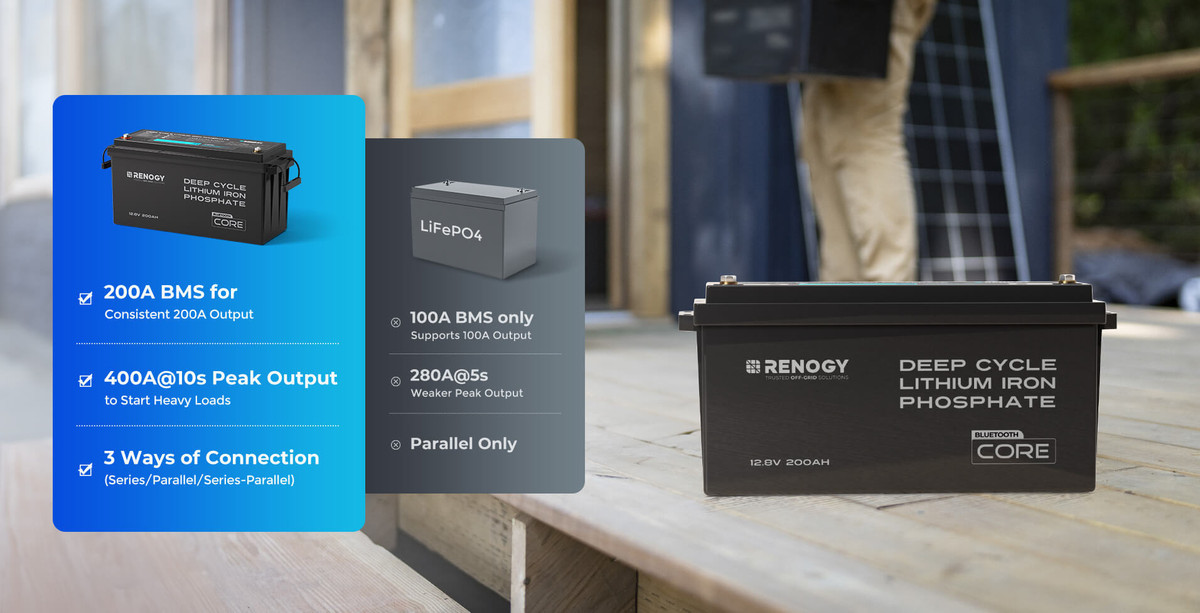

200Ah Core vs. Other LiFePO4
Unmatched performance for your most demanding energy needs.

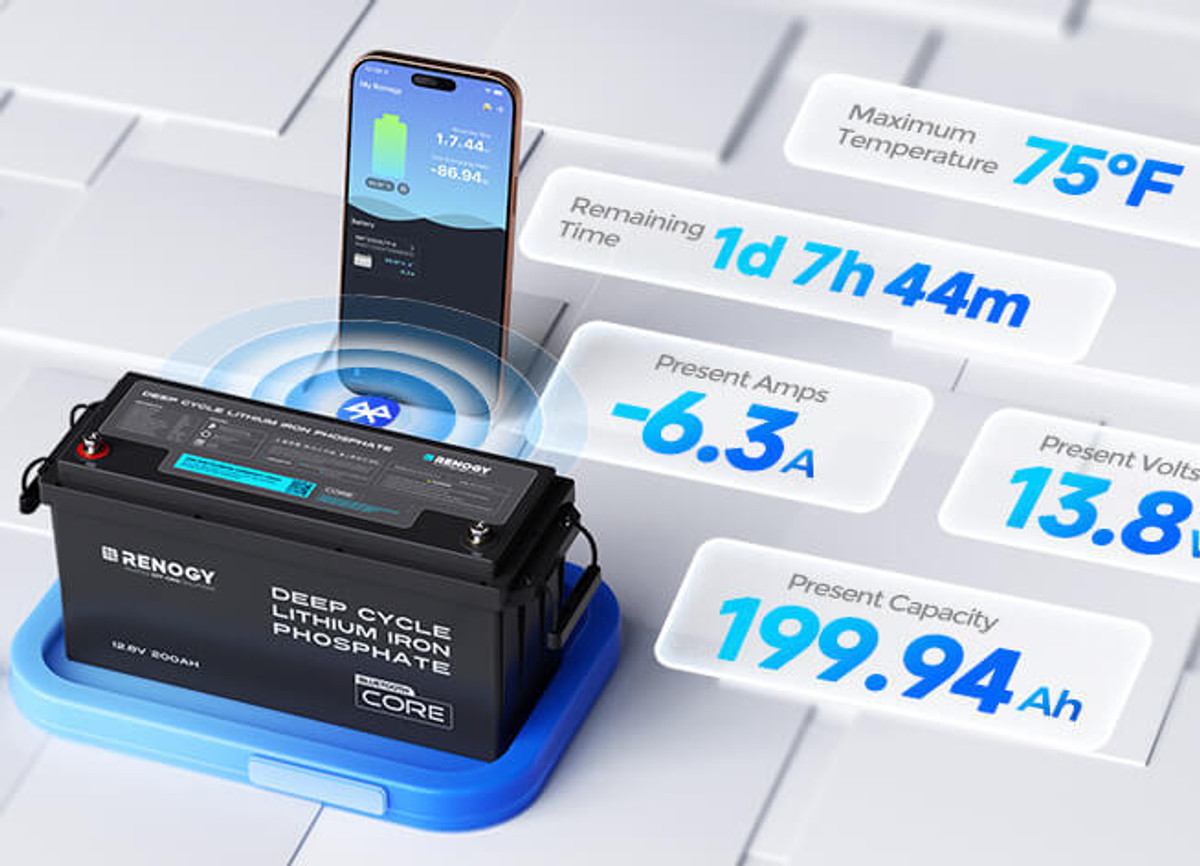

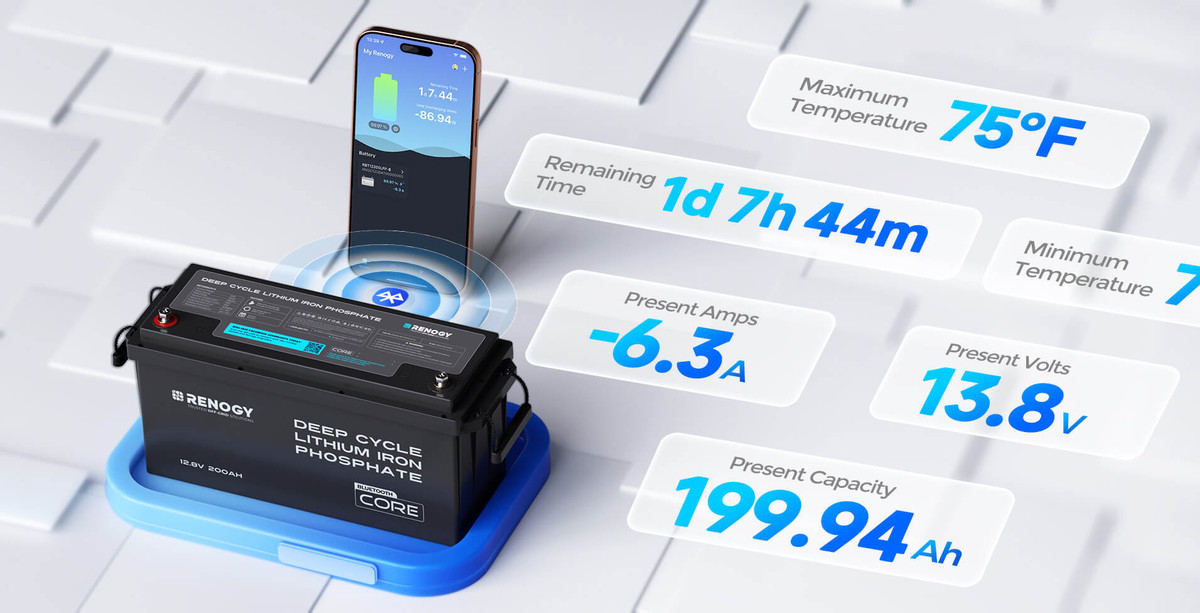

Real-Time Power at Fingertips
The all-new Renogy 12V 200Ah Core Battery with Bluetooth connectivity enables effortless monitoring via the Renogy app. Instantly track remaining power, voltage, current, and receive critical alerts for protection triggers—all from your smartphone. Stay informed and ensure optimal performance with seamless, real-time updates.
Max. 6% More Power
EV-grade Battery Cells
Peace-of-Mind Charging
Protections from Bumps
Extra Power. More Possibilities.
The Renogy 12V 200Ah Core delivers more than expected. With a max. 6% additional capacity, you’re ready for unexpected challenges like storms, hurricanes, wildfires, and more.
Powerful to the Core
Providing reliable power almost 10 times longer than standard lead-acid batteries, the Renogy 12V 200Ah Core LiFePO4 Battery is equipped with EV-grade cells for superior, lasting performance.
Year-round Protections

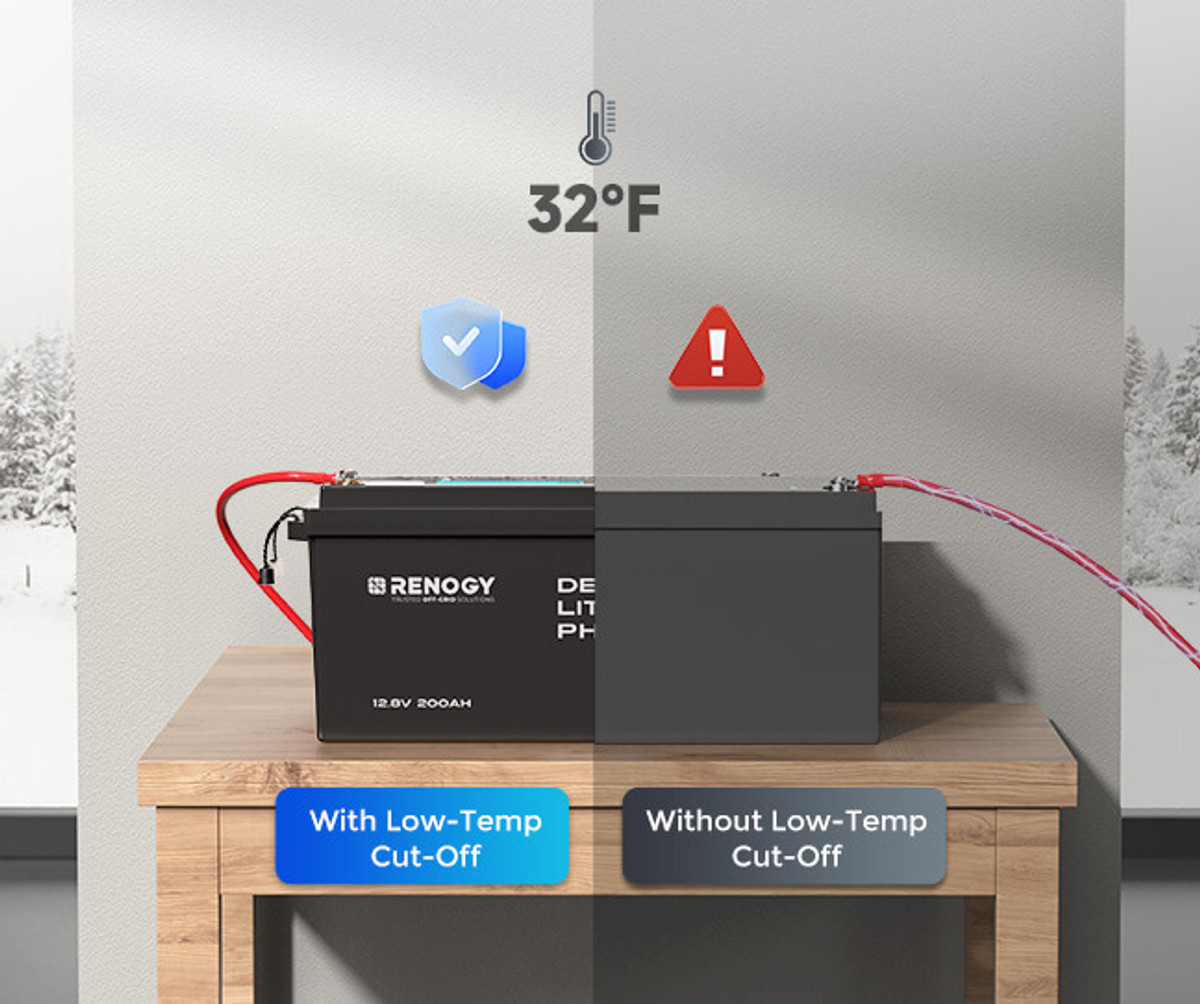

The built-in 200A battery management system (BMS) ensures peace of mind year-round. The low-temperature cut-off feature actively prevents charging when temperatures drop below 32°F.
Protections from Bumps
We understand the journey is often bumpy. That’s why the battery is designed with rugged protection to safeguard components from impacts on the road.
Connect in Series
Connect in Parallel
Connect in Series-Parallel
Connect in Series
Easily wire 12V 200Ah Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.

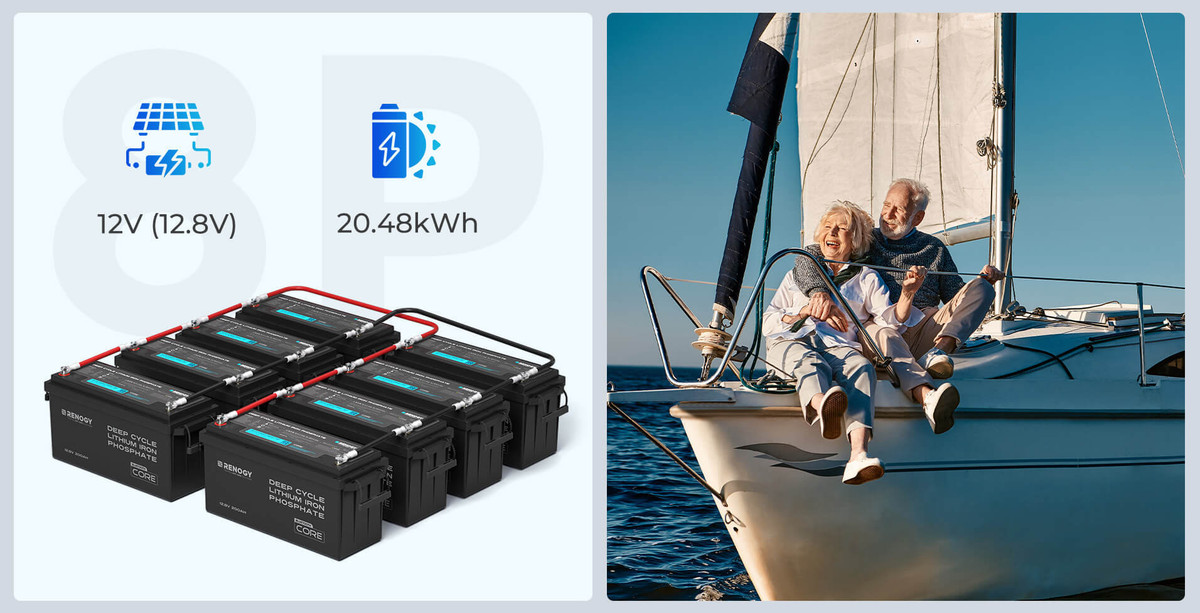

Connect in Parallel
Extend the runtime of your off-grid power system by connecting batteries in parallel. With 8 Renogy 12V 200Ah Core Series Batteries, you can achieve up to 20.48kWh of power.
Connect in Series-Parallel
Looking to boost both voltage and capacity? Try connecting sets of batteries in series-parallel to maximize your system's power and be ready for emergencies like outages and hurricanes.

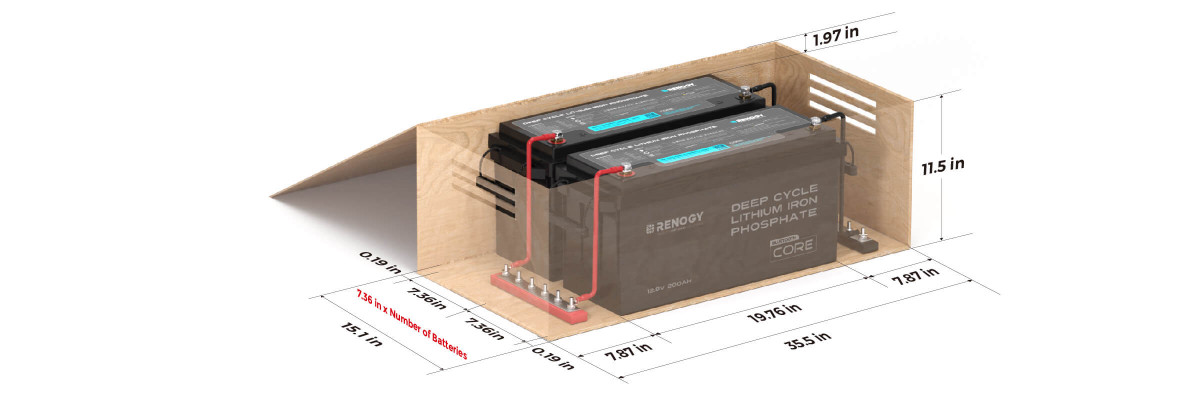

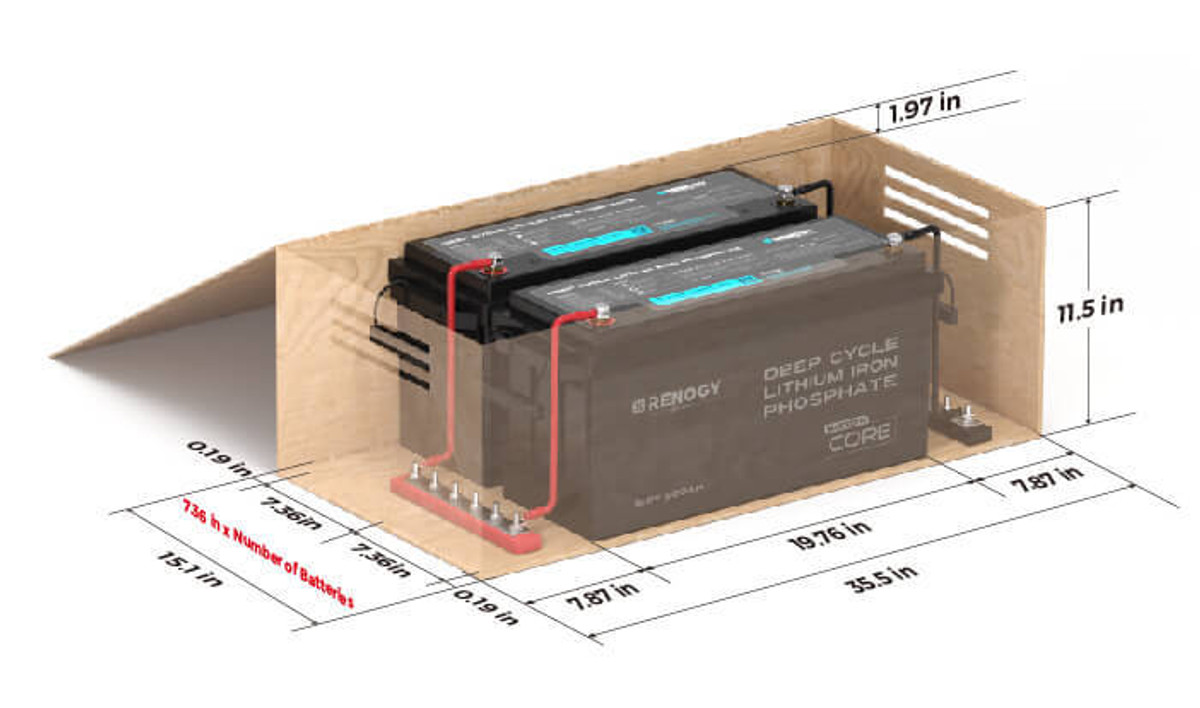

Dimensional Reference Guide
Easily wire 12Before installing the battery, ensure you leave 1.97-3.94 inches (5-10 cm) of space above the battery and at least 7.87 inches (20 cm) on the side with the busbars.V 200Ah Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.

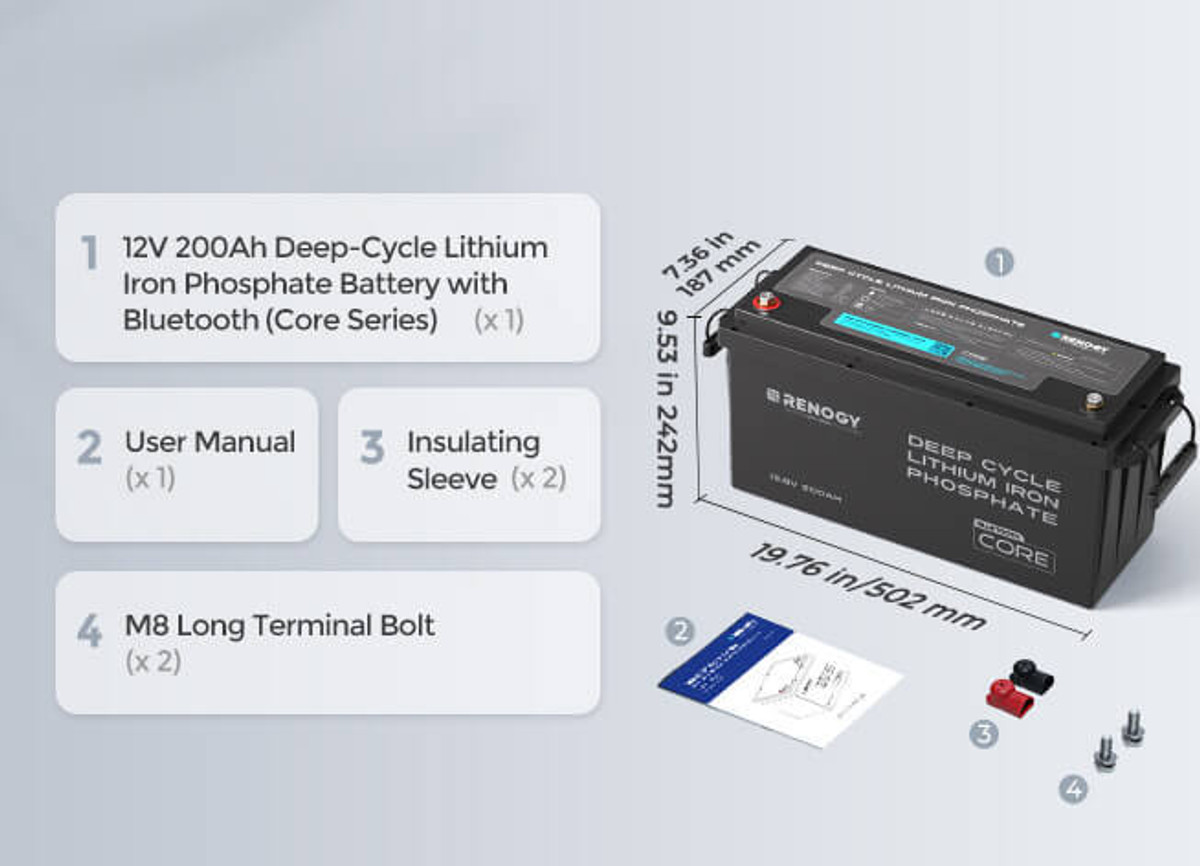

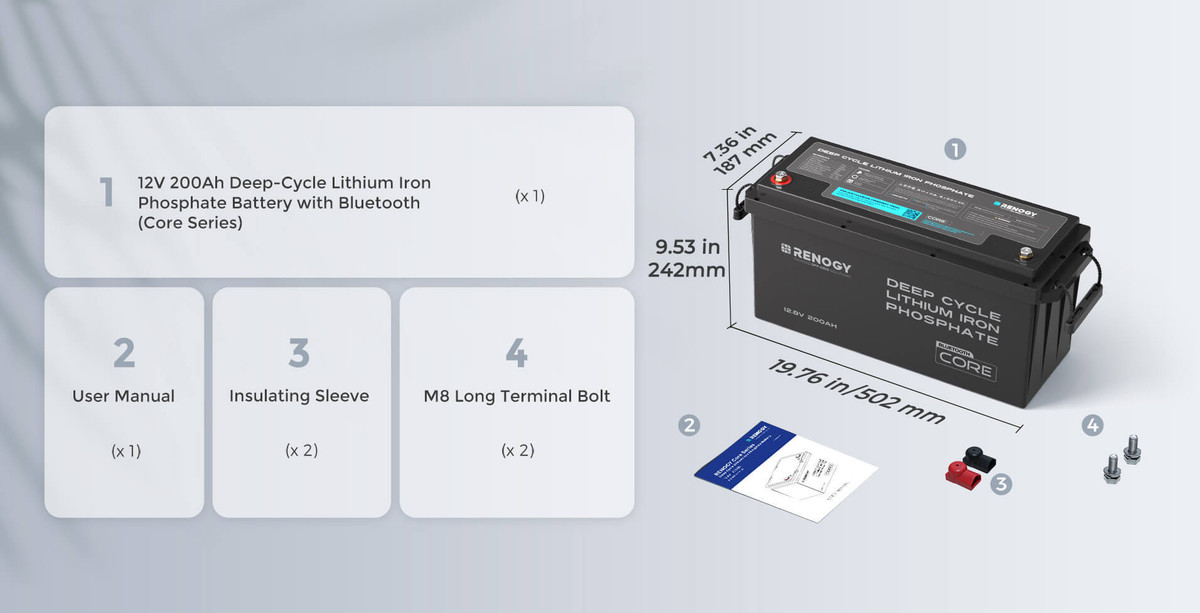

What's in the box
Package Includes
Battery
x 1
User Manual
x 1
Insulating Sleeve
x 1
M8 Long Terminal Bolt
x 2
Electrical Specifications
Rated Capacity (0.5C, 25°C)
200Ah
Nominal Voltage
12.8V
Voltage Range
10V to 14.8V
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Temperature Parameters
Storage Temperature Range
-4°F to 149°F / -20°C to 65°C
Operation Relative Humidity
10% to 95%
Operation Temperature Range
Charge: 32°F to 122°F / 0°C to 50°C
Discharge: -4°F to 131°F / -20°C to 55°C
Charging & Discharging Parameters
Charge Voltage
14.4V
Maximum Continuous Charge Current
200A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
400A@10s
Certifications & Warranty
MSDS, UN38.3, FCC, PSE, IC, RCM, RoHS, CE, and UKCA
YES
Warranty
5-year material warranty
Mechanical Specifications
Dimension (L x W x H)
19.76 x 7.36 x 9.53 in / 502 x 187 x 242 mm
Weight
44.53 lbs. / 20.2 kg
Terminal Bolt Size
M8 x 1.25 x 15 mm
Protection Rating
IP65
Frequently Asked Questions
Can I use this battery with Renogy app?
Yes. You can download the Renogy app and connect to your battery. Once connected, you can track present voltage, current, temperature, and more information right on your phone. If you have multiple Bluetooth-enabled devices from Renogy, Renogy ONE Core is highly recommended for easier energy monitoring and management.
Will this new Bluetooth version work with my old 12V 200Ah Core LiFePO4 Battery?
Yes, it is compatible with the last generation of 12V 200Ah Core Deep Cycle LFP RV battery. If you're unsure about the version you have, our customer support team is ready to assist you.
I have 4 Renogy 100W 12V solar panels. Will these work with this LiFePO4 battery or is that too much wattage?
Yes, but please make sure that your solar charge controller is capable of handling the power your solar panels can output. Do not connect solar panels directly to batteries without a solar charge controller. Feel free to contact us if you have questions about how to size the solar charge controller for your system.
Can this battery be used in series to build a 48-volt system？
Yes. Renogy 12V Core Series Batteries can be connected in series to ramp up voltage for a 24V, 36V, or 48V off-grid power system. You can also consider wiring batteries in series first and then wire sets of batteries (same models required) in parallel for maximum power up to 40.96kWh.
How many Renogy 12V 200Ah Core Series Batteries can I connect at most?
The Core Series batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 4 batteries in series, 8 in parallel, or 16 in the series-parallel connection. Batteries of the same model and similar capacity are required.
How to recharge my LiFePO4 batteries?
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with lithium iron phosphate batteries.
