Electricity Output Performance
Reliable Shading Performance
Stable Shading Conversion
Reliable Electricity Output Performance

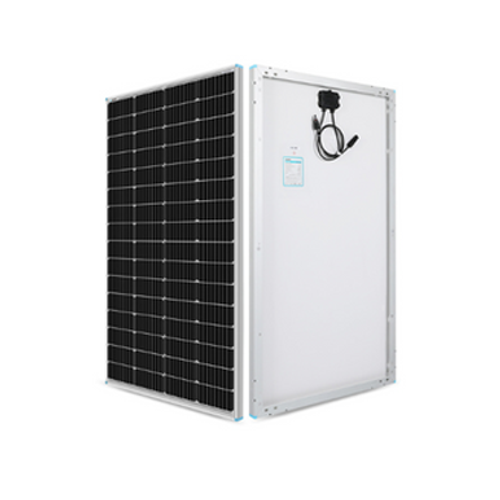

Renogy 200W Monocrystalline Solar Panel delivers up to 1000 Watt-hours of electricity per day with 5–6 hours of direct sunlight. It features a guaranteed positive output tolerance of 0%–3%, ensuring consistent and reliable performance.
Advanced Solar Cells for Enhanced Efficiency
Built with Grade A+ solar cells, this panel maximizes efficiency through 9 busbars for enhanced conductivity and PERC technology for improved light reflection.
Consistent Solar Conversion under Accidental Shading
Thanks to half-cut cells and bypass diodes, this panel maintains consistent solar energy conversion, even in conditions of accidental shading, while protecting against hotspot overheating.
Premium Quality
Powerful Performance
Proven Reliability
Premium Quality
Designed for durability, this panel is built to endure challenging environments, ensuring long-lasting and dependable use.
Powerful Performance
Engineered to excel in extreme weather conditions, this panel provides exceptional energy production for years to come.
Proven Reliability
Extensively tested and certified, the panel offers guaranteed quality for dependable and consistent power output.
Quick and Easy Mounting
Pre-drilled holes on the back of the panel enable fast installation and compatibility with various Renogy mounting systems, including Z-Brackets, Pole Mounts, and Tilt Mounts.
Sturdy and Reliable Packaging
Renogy panels are carefully packaged with extra-thick corrugated cardboard and foam L-brackets on all four corners for added protection during shipping.
Fast and Reliable Customer Support
Renogy offers professional sales and technical support through multiple channels, ensuring that your questions are answered within 24 hours.
Package Includes
200 Watt 12 Volt Monocrystalline Solar Panel
x 1
Max Power at STC
200W
Open Circuit Voltage
23V
Short Circuit Current
11.05A
Optimum Operating Voltage
19.2V
Optimum Operating Current
10.42A
Operating Temperature
-40°F~194°F / -40℃~90℃
Maximum System Voltage
600 VDC UL
Maximum Series Fuse Rating
20A
Output Cable
13 AWG 2.6 ft (0.9m) long
Dimensions
58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight
26.46 lb (12 kg)
Solar Cells
68 Cells (4*17)
Junction Box
IP65
Connectors
Solar Connectors
Module Efficiency
19.2%
Frame
Frame Anodized Aluminium Alloy
Panels
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate
10-year material and workmanship warranty
10-year material and workmanship warranty
Accessories
1-year material warranty
Frequently Asked Questions
How can I connect solar panels to my electrical circuit (series vs parallel)?
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demands.
In series: the operating voltage output adds up, while the system current output is the same as that of one panel.
In parallel: the operating current output will add up, while the system voltage output will be the same as the output of one solar panel.
To achieve optimum power output and system rating for your power system, you can use both parallel and series connections.
In series: the operating voltage output adds up, while the system current output is the same as that of one panel.
In parallel: the operating current output will add up, while the system voltage output will be the same as the output of one solar panel.
To achieve optimum power output and system rating for your power system, you can use both parallel and series connections.
How many solar panels do I need?
The best way to gauge how many solar panels you need is to understand the power load needed for your system.
Power is measured in watts, and the capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and then accordingly, decide how much input power and how many panels are needed.
Power is measured in watts, and the capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and then accordingly, decide how much input power and how many panels are needed.
Why is my solar panel under producing?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
Will this panel produce power in overcast conditions?
Yes, it will. Made of high-quality materials, this Renogy solar panel still works during cloudy weather conditions. But please note that the power conversion is not as high as on sunny days.
Why are my solar panels underproducing?
The performance of a solar panel may be hindered for a number of reasons. Most commonly environmental conditions, such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass, which can lead to a lower efficiency.
What does the 12V/24V in the product title of the solar panel mean? Why is it different from the value on the label/specification sheet of the solar panel?
The 12V/24V in product titles (ex. 150W 12V CIGS Solar panel) does not refer to the actual voltage (Voc or Vmp) of the solar panels, but rather to the voltage of the solar system or energy storage system to which the panel is best suited. The voltage of the solar panel must be higher than the solar system voltage.
