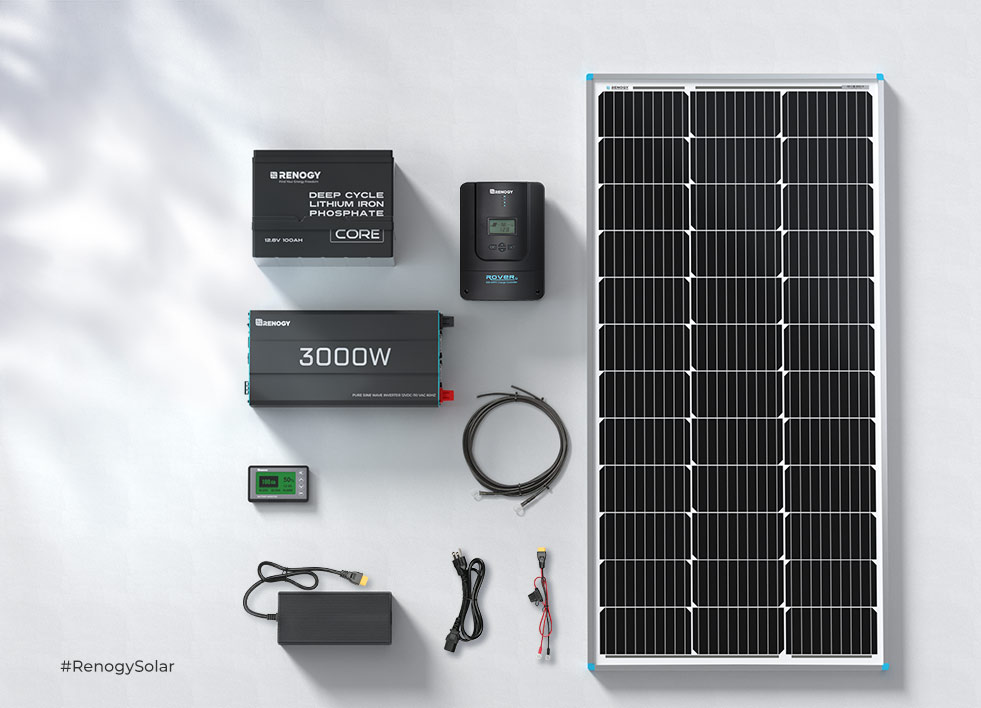

Meet Renogy 12V 100Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without compatibility issues.

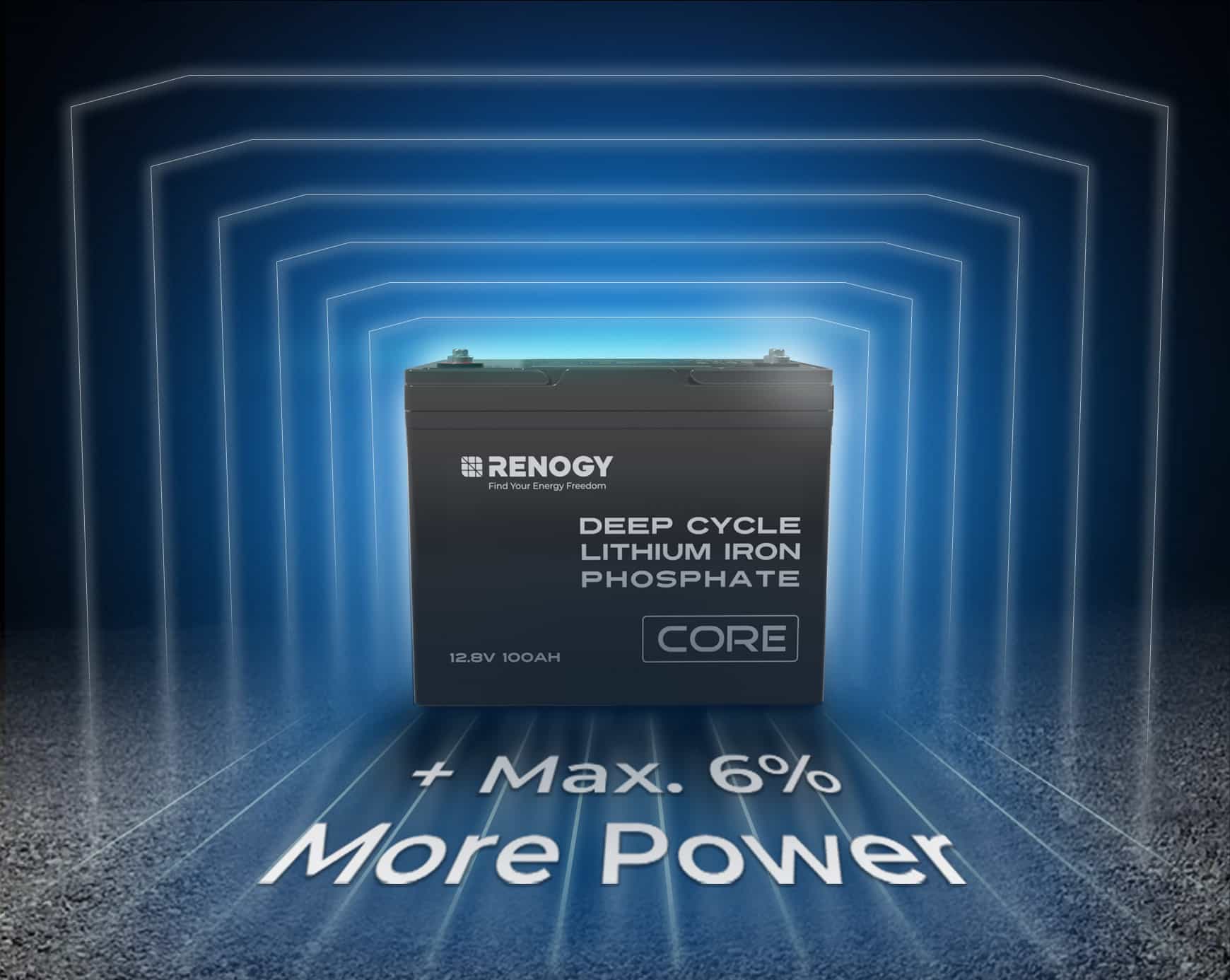

With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer and it can be used in trolling motor.
Off-grid living can be challenging, but the Renogy 12V 100Ah Core Battery offers a true 100A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.
Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 100Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way. If you have any questions regarding this product, please submit a case !
Easier & Faster in Just One Go
| Renogy 12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery | |||
|---|---|---|---|
| Electrical Specifications | Temperature Parameters | ||
| Rated Capacity (0.5C, 25°C) | 100 Ah | Operation Temperature Range | Charge: 32°F to 131°F / 0°C to 55°C |
| Nominal Voltage | 12.8 V | Operation Temperature Range | Discharge: -4°F to 140°F / -20°C to 60°C |
| Energy | 1280Wh | Storage Temperature Range | -13°F to 149°F / -25°C to 65°C |
| Cycle Life(0.5C/1C, 25℃) | 5000 Cycles (80% DOD 80% EOL) | Operation Relative Humidity | 10% to 95% |
| Charging Parameters | Mechanical Specifications | ||
| Charge Voltage | 14.4 V | Dimension (L x W x H) | 10.6 x 6.9 x 8.6 in / 260 x 169 x 211 mm |
| Maximum Continuous Charge Current | 100 A | Weight | 23.15 lbs. / 10.5 kg |
| Discharging Parameters | Terminal Bolt Size | M8 x 1.25 x 15 mm | |
| Maximum Continuous Discharge Current | 100A | Protection Rating | IP65 |
| Peak Discharge Current | 300A@10s | ||
| Certifications | Warranty | ||
| MSDS, UN38.3, FCC, PSE, CE, UKCA | YES | 5-year material Warranty | |
Yes. Renogy 12V Core Series Batteries can be connected in series to ramp up voltage for a 24V, 36V, or 48V off-grid power system. You can also consider wiring batteries in series first and then wire sets of batteries (same models required) in parallel for maximum power up to 40.96kWh.
The Core Series batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 4 batteries in series, 8 in parallel, or 16 in the series-parallel connection. Batteries of the same model and similar capacity are required.
No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt (sold separately) to keep track of battery status.
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with lithium iron phosphate batteries.
 |
 |
