Can this Power Management System work in regions outside Australia?

Yes, the AC input of the unit is 100-240VAC, 50/60Hz. This means you can plug it into most shore power supplies worldwide to recharge batteries. We will also include the correct AC input cable to match your local AC outlets for a secure connection.

Does Renogy Power Management System work with lithium batteries?

Yes. You can set charging parameters accordingly to match your batteries, including AGM, GEL, FLD, and LI (Default). In addition, you can customize charging settings based on your needs.

How many DC loads can be connected to the unit?

The system provides 14 fused output circuits for ventilation fans, car fridges, etc. Meanwhile, 7 output circuits feature independent switches, allowing you to precisely control DC-powered appliances. Among them, 3 are dedicated to LED lighting and allow you to dim lights smoothly.

Can water tank level sensors be added to this Power Management System?

Yes, the unit comes with 8 water tank level inputs, allowing you to connect up to four 2-wire tank level sensors and up to four 5-wire tank level sensors.

four in one

Renogy Power Management System

Hightlights

Why Renogy?

Success Stories

FAQs

Downloads

4-in-1 Integrated Design

All your Charging Needs. Now in One Case.

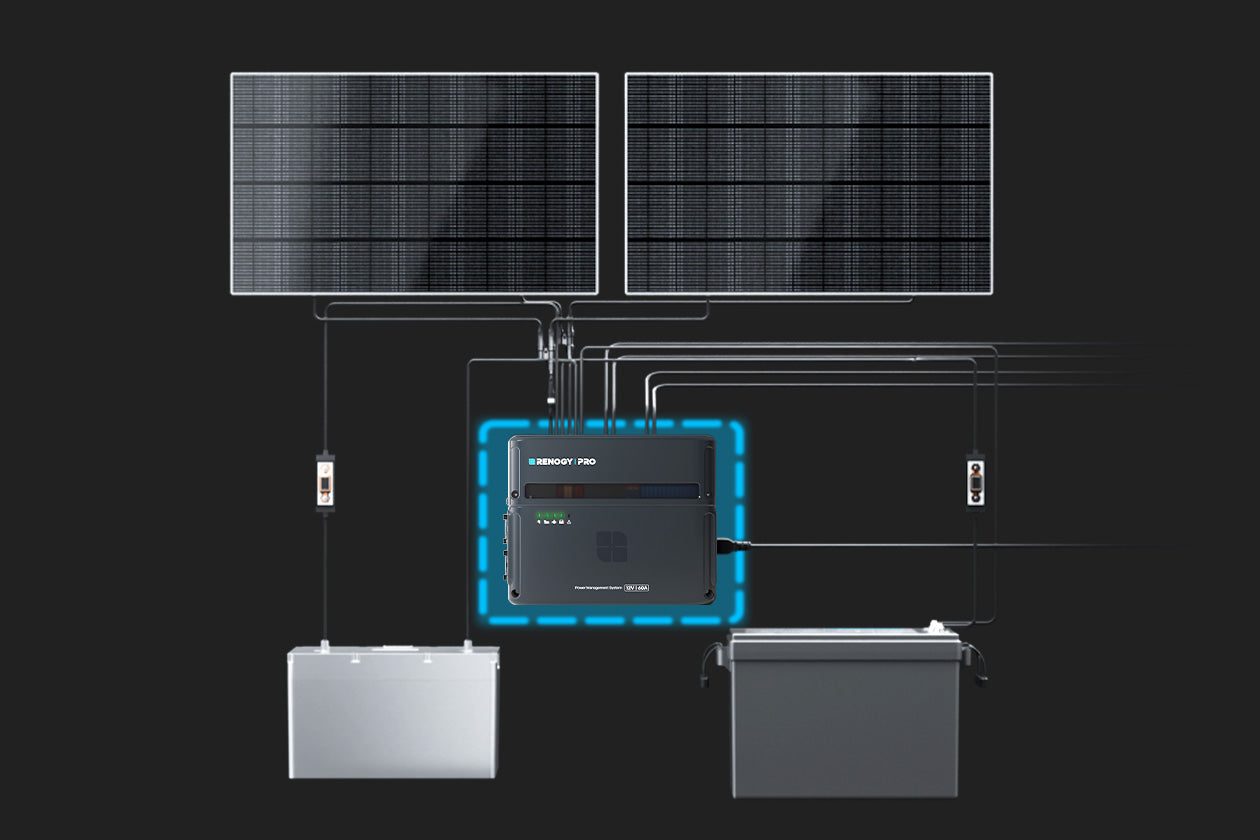

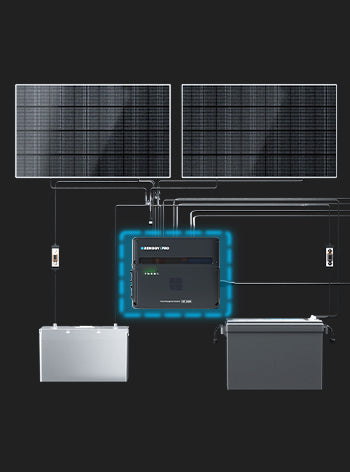

Renogy Power Management System brings solar, alternator, and shore-power charging together in one compact case, helping build a cleaner power setup with less space and reduced wiring to make your off-grid system easier to manage.

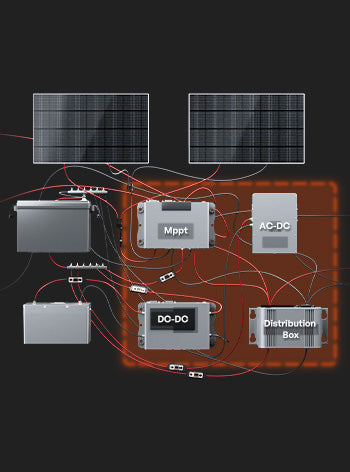

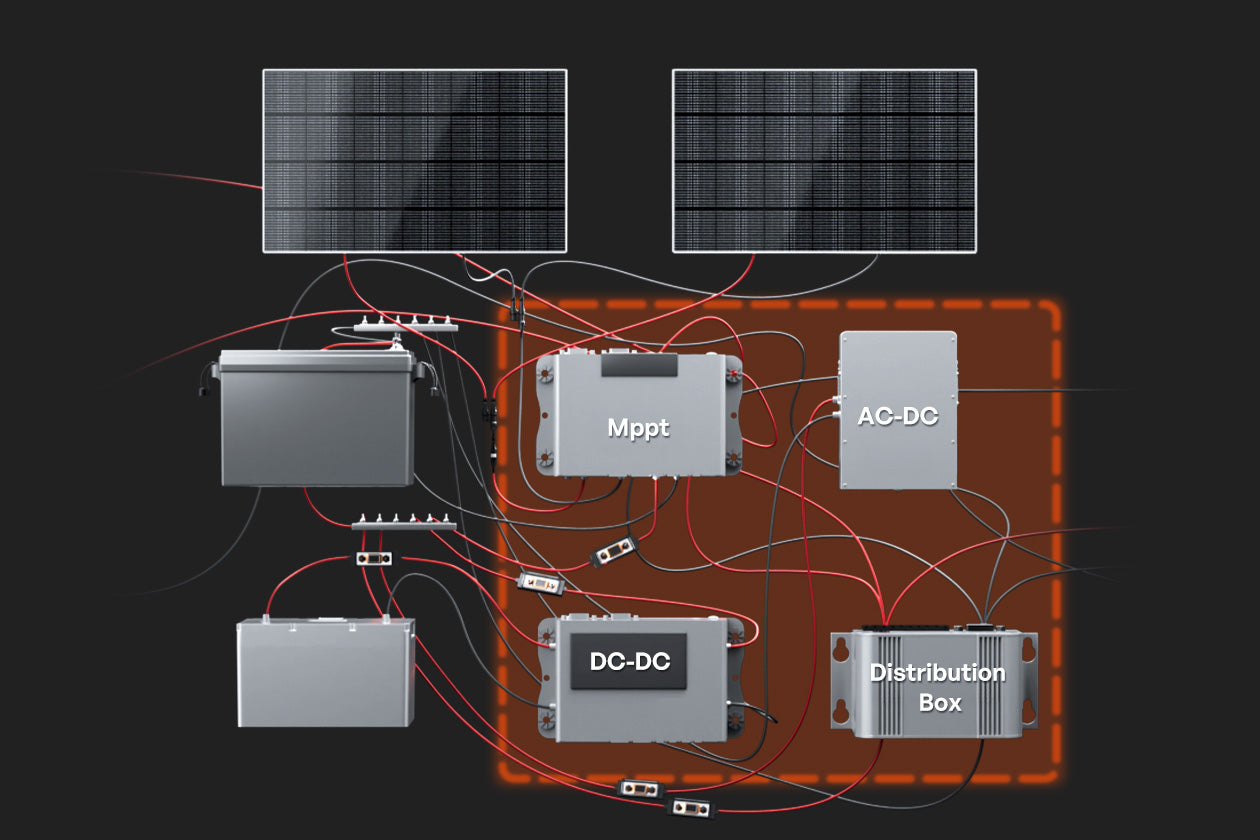

Takes up Large Storage Space

More Tangled Cables

Saves up to 50% Storage Space
Reduces Repetitive Wiring

Faster Charging

AC + Solar (AC Priority)

Solar + Alternator (Solar Priority)

AC + Alternator (AC Priority)

AC + Solar + Alternator (AC + Solar Priority)

DC-DC Charging

Turn Miles into Power

Works with Smart Alternators

Identifies the running status of traditional and smart alternators with the built-in IGN Mode, helping to prevent charging when the engine is off.

Easy-to-Configure Charging

Optional Voltage-Only Control Mode lets you configure charging based on your alternator type and starter battery voltage, helping simplify installation across different vehicle setups.

Reliable Backup for Starter Battery

Charge back to your flat starter battery with either shore power, solar, or your house battery when the house battery has sufficient power.

Works with Smart Alternators

Easy-to-Configure Charging

Reliable Backup for Starter Battery

Identifies the running status of traditional and smart alternators with the built-in IGN Mode, helping to prevent charging when the engine is off.

Optional Voltage-Only Control Mode lets you configure charging based on your alternator type and starter battery voltage, helping simplify installation across different vehicle setups.

Charge back to your flat starter battery with either shore power, solar, or your house battery when the house battery has sufficient power.

MPPT Solar Charging

Capture More Power from the Same Sun

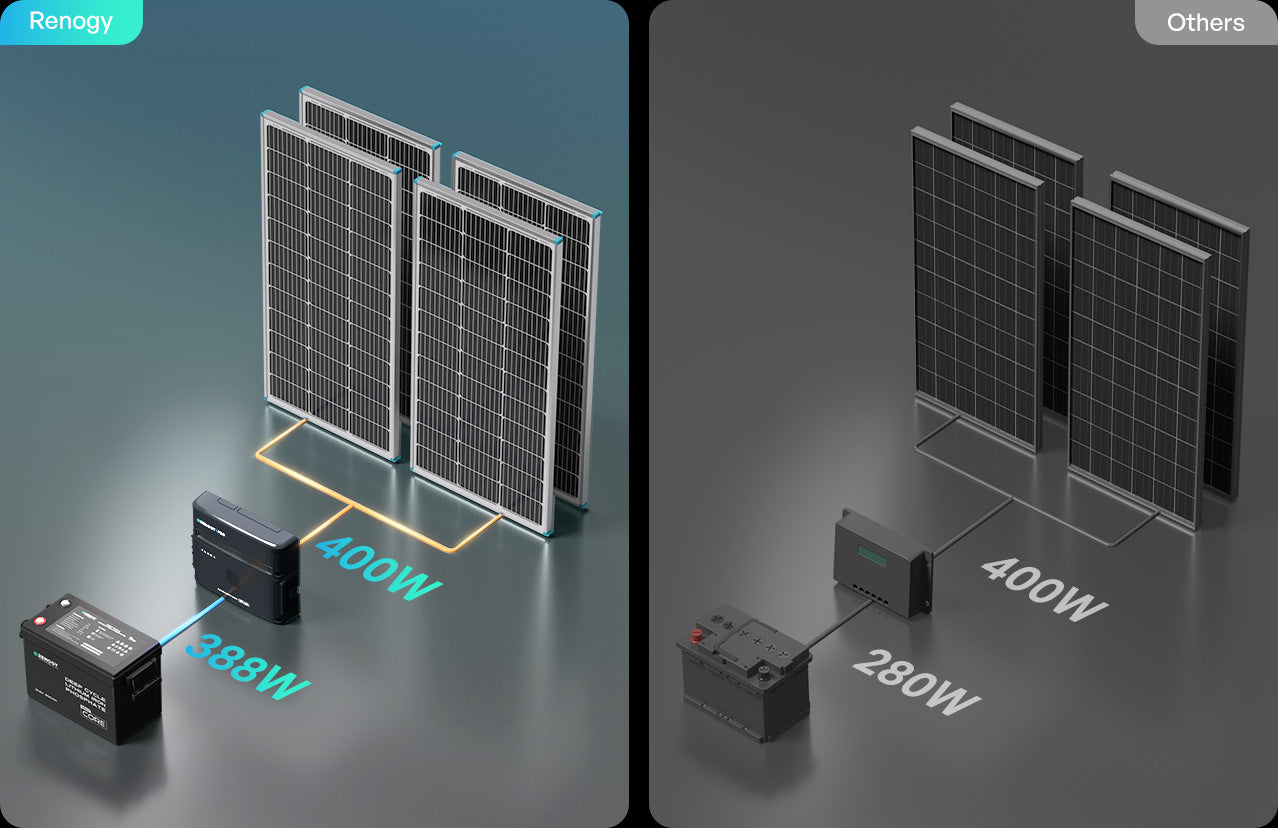

Increase Solar Yield by 30%

Get 30%⁴ or even higher solar yield from your panels with advanced MPPT solar charging algorithms to top up your auxiliary battery on the road.

Cost-Effective Wiring

Connect solar panels with more layout flexibility and reduce wiring cost with up to 60V³ solar input.

Increase Solar Yield by 30%

Cost-Effective Wiring

Get 30%⁴ or even higher solar yield from your panels with advanced MPPT solar charging algorithms to top up your auxiliary battery on the road.

Connect solar panels with more layout flexibility and reduce wiring cost with up to 60V³ solar input.

All-in-One Energy Hub

Unleash the Full Potential of RV Living

RV Monitoring Made Easy

Learn solar yield, power usage, and water tank level in real time from the Renogy App and Renogy ONE Core. To help you plan ahead, Renogy Portal offers detailed historical data with clear charts.

Feel More at Home on the Road

Use Renogy One Core with smart plugs and door/window sensors to manage daily routines and keep an eye on your mobile living space from one connected system.

Frequently Asked Questions

How many solar panels can be connected to Renogy Power Management System?

It depends on actual needs. Please make sure the maximum solar input power does not exceed 800W. Meanwhile, for models in Australia/the UK, the PV input voltage should not exceed 42V. For models in the US/Japan, the PV input voltage should not exceed 60V.

What kind of solar regulator is used in this unit? PWM or MPPT?

An MPPT solar charging module (97%-98% efficiency) is built into the Renogy Power Management System. Compared with a PWM solar charge controller, our unit can get up to 30% more power from solar panels to recharge batteries.

How to connect solar panels to Renogy Power Management System?

Use a wire stripper to remove the insulation from the leads of solar panels. Then, attach ferrules to bare wires and use a crimper to secure the connection. Next, connect the positive and negative leads to the solar positive and negative inputs on your Renogy Power Management System.

Does Renogy Power Management System work with vehicles with Euro 5/6 engines?

Yes. Renogy Power Management System comes with "IGN Signal Control Mode" and "Voltage-Only Control Mode" to be compatible with vehicles with Euro 5 or 6 smart alternators. You can set the alternator type first via Renogy ONE Core or the Renogy App.

For "IGN Signal Control Mode (Default)", the system requires the IGN wire to detect the engine running status. If a 12V signal is received and the starter battery voltage is over 12V for 15s, the unit will start charging the house battery.

In "Voltage-Only Control Mode", the unit relies on voltage changes in the starter battery to control charging. This mode does not require an IGN signal wire and is ideal when the IGN terminal is difficult to access.

Will Renogy Power Management System recharge the starter battery?

Yes, the unit will evaluate the status of your house battery and starter battery. If the starter battery runs low while the house battery is healthy, the system automatically prioritizes charging the starter battery using shore power, solar input, or the house battery itself to prevent it from draining.

Are there any limits to the battery I can use with this unit?

Renogy Power Management System is compatible with 12V batteries from Renogy and third parties. Before connecting, please ensure your batteries are rated to handle a maximum charge current of at least 60A.

Can I connect an inverter to Renogy Power Management System?

No. You can connect an inverter directly to the house battery to power up AC appliances.

Is this hub compatible with the Renogy App?

Yes, you can monitor power status and change charging settings using the Renogy App. The app will also send notifications with troubleshooting tips if built-in protections are triggered.

Will Renogy Power Management System work with third-party devices?

Yes, the system can connect with Dometic air conditioners, Truma heaters, and other third-party appliances. Please contact us for more details.

Explore More Details

First Name

Last Name

Work Email

Phone Number

Country

Company Name

Company Size

How did you hear about Renogy Power Management System?

Comments (Optional)

1. Contact us for more details if you plan to add third-party devices to your system.

2. Wi-Fi is only available on Renogy ONE Core, helping upload energy data to the cloud.

3. 60V PV input is available in the US/Japan. The AU/European version comes with max. 42V solar input.

4. Compared with selected PWM chargers.

Renogy Power Management System

Where Efficiency Meets Everyday Comfort

All your Charging Needs. Now in One Case.

Faster Charging. Less Downtime.

Faster Charging

AC + Solar (AC Priority)

Solar + Alternator (Solar Priority)

AC + Alternator (AC Priority)

AC + Solar + Alternator (AC + Solar Priority)

Turn Miles into Power

Works with Smart Alternators

Easy-to-Configure Charging

Reliable Backup for Starter Battery

Works with Smart Alternators

Easy-to-Configure Charging

Reliable Backup for Starter Battery

Capture More Power from the Same Sun

Increase Solar Yield by 30%

Cost-Effective Wiring

Increase Solar Yield by 30%

Cost-Effective Wiring

Unleash the Full Potential of RV Living

RV Monitoring Made Easy

Feel More at Home on the Road

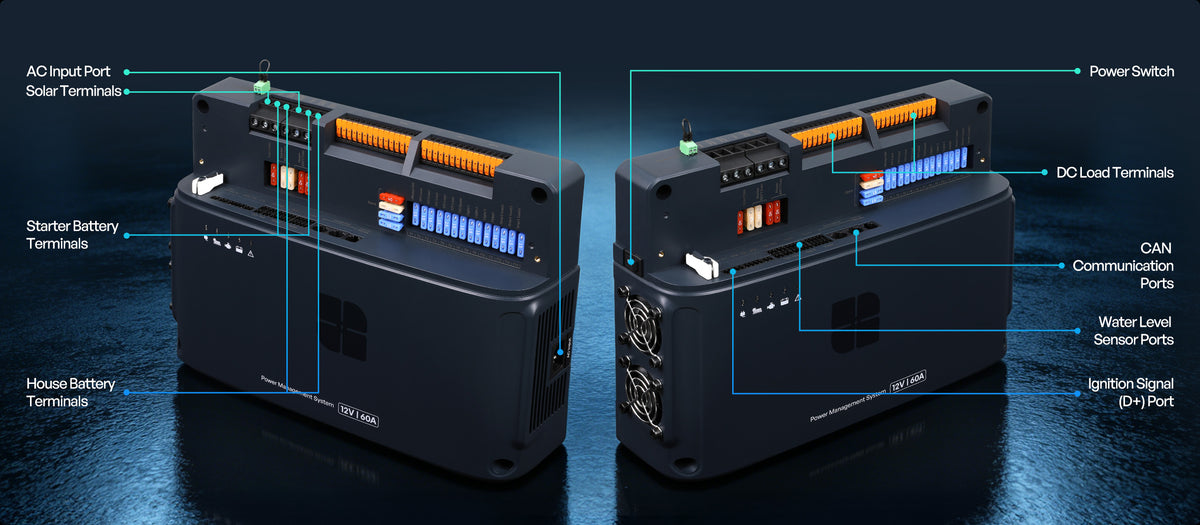

Take a Closer Look

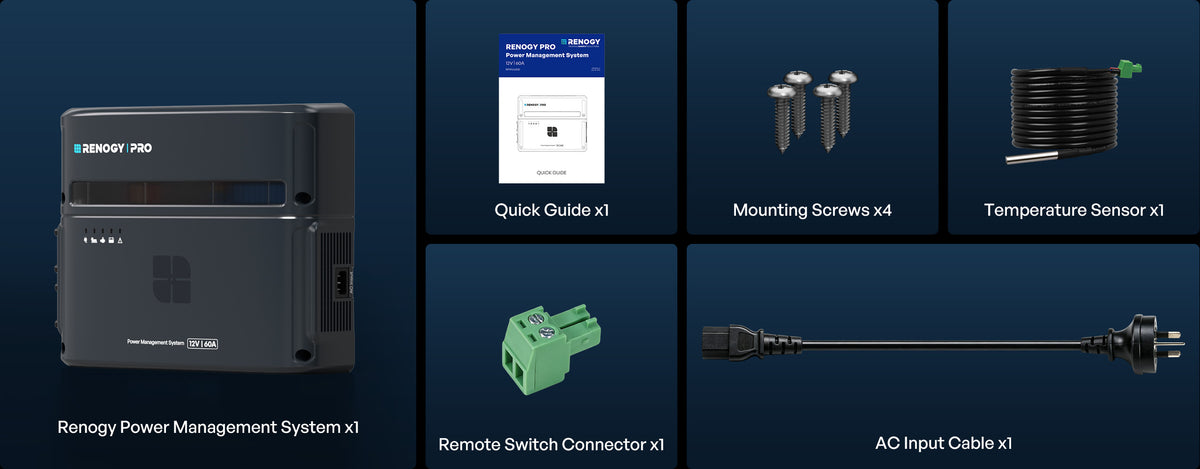

What's in the Box
