3000W 12V Pure Sine Wave Inverter Charger w/ LCD
SKU:
R-INVT-PCL1-30123S-AU
AUD$859.99
AUD$1,299.99
Unit price
/
Unavailable
34% off
Tax included.
3000W 12V Pure Sine Wave Inverter Charger w/ LCD is backordered and will ship as soon as it is back in stock.
Enjoy payments with
Return & refund policy
Request Bulk Purchase Prices
Frequently bought together
This Item

Add
changeBundleNum(e, 'main_product')" type="number"
class="qty-input__input input"
id="quantity-template--18593840037981__main"
name="quantity"
min="1"
value="1"
>
Frequently Bought With
Total Bundle Price
Compatible with diverse battery types.
9000W peak output with >90% conversion efficiency.
Pure Sine Wave technology safeguards delicate appliances.
4-Stage battery charging for optimal performance.
Multiple electrical protections for enhanced safety.
3000W 12V Pure Sine Wave Inverter

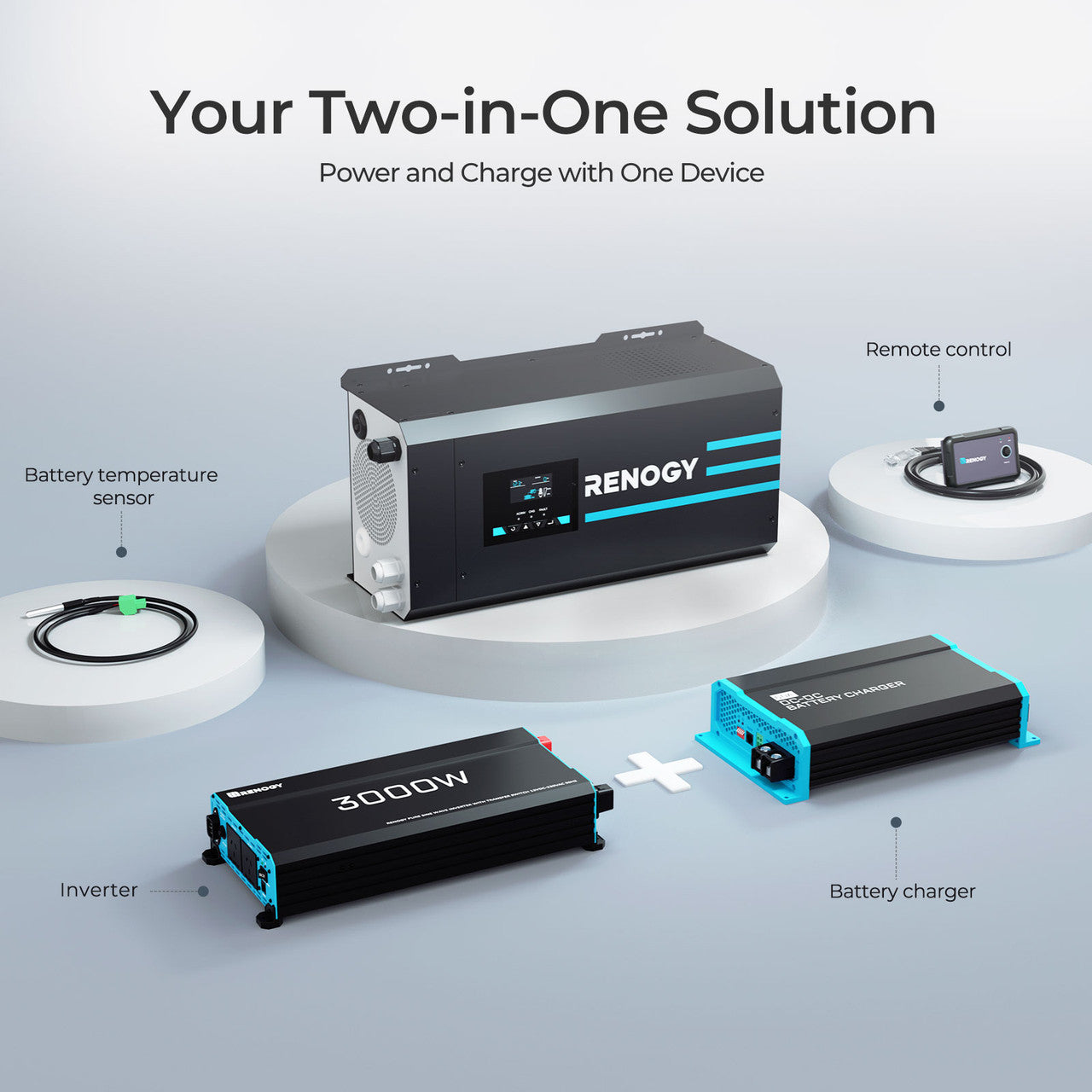

Redefine your power solutions with a versatile dual-purpose dynamo.


Effortless Surge Handling
Capable of powering 1.5kW air conditioners, motors, refrigerators, and washing machines.

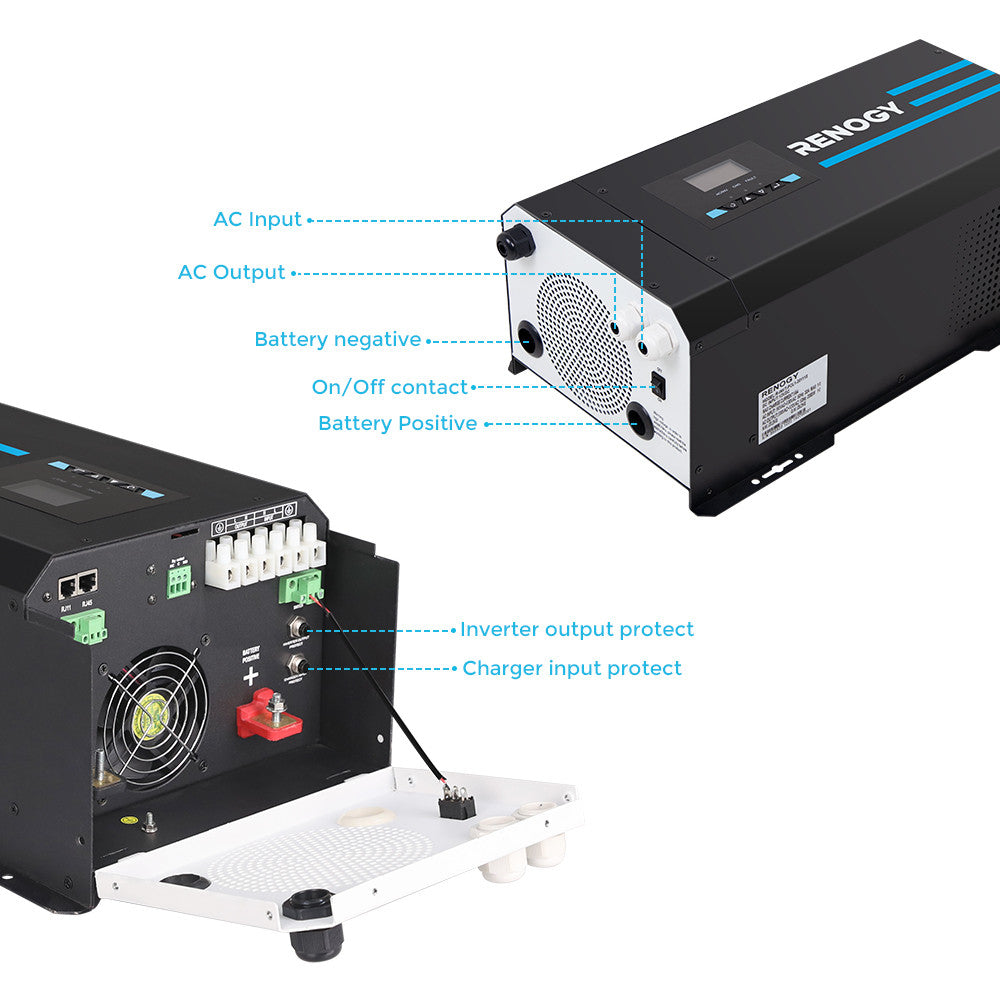

Explicit Side Panel Design
The terminals are neatly organized for easy installation.


Efficient and Fast Charging
Unlock the full potential of rapid charging, automatically optimizing charging to 100% battery capacity.


Pure Sine Wave Technology
Advanced pure sine wave output ensures protection for sensitive appliances and quieter operation.


Excellent Performance in Extreme Temperatures
Experience unwavering performance in the harshest winters and hottest summers.

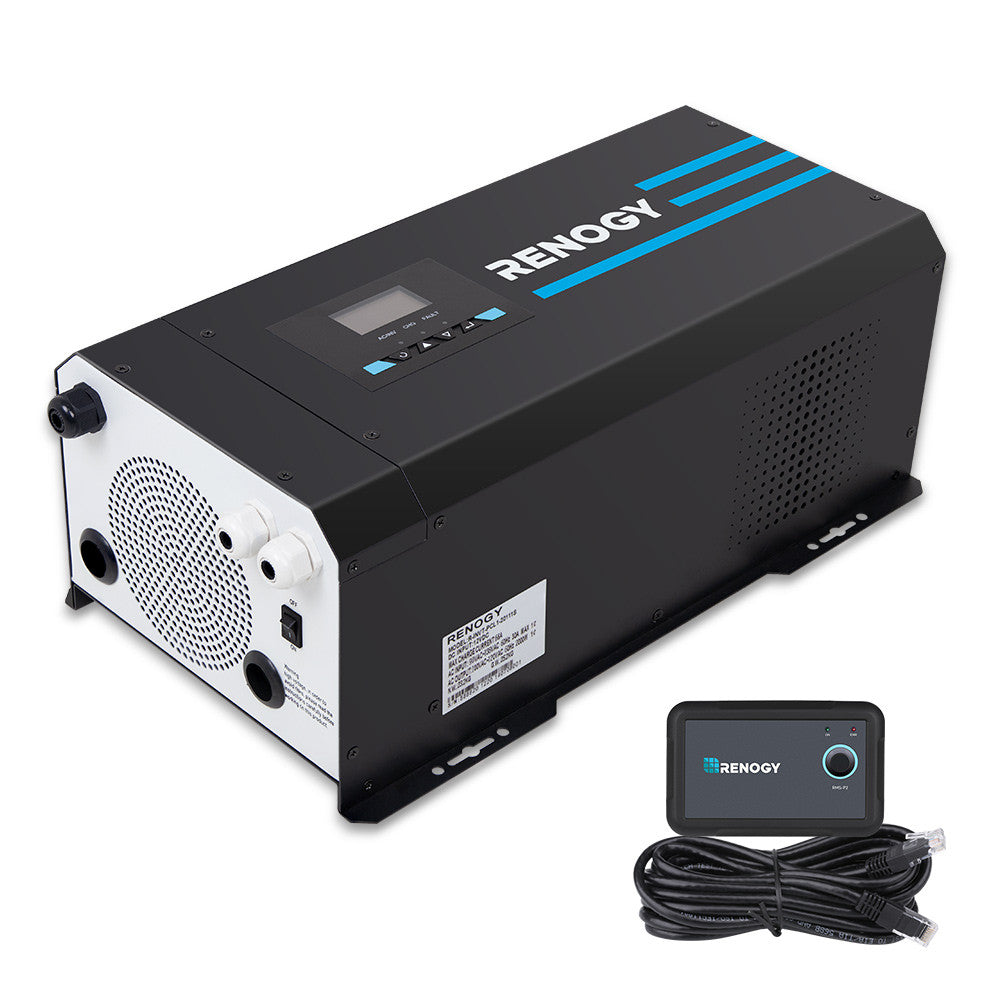

Inverter Wired Remote Control
For off-grid convenience, this all-in-one inverter charger includes a remote control switch and a 16.4 ft cable, allowing you to control your system remotely and enjoy flexible installation options.

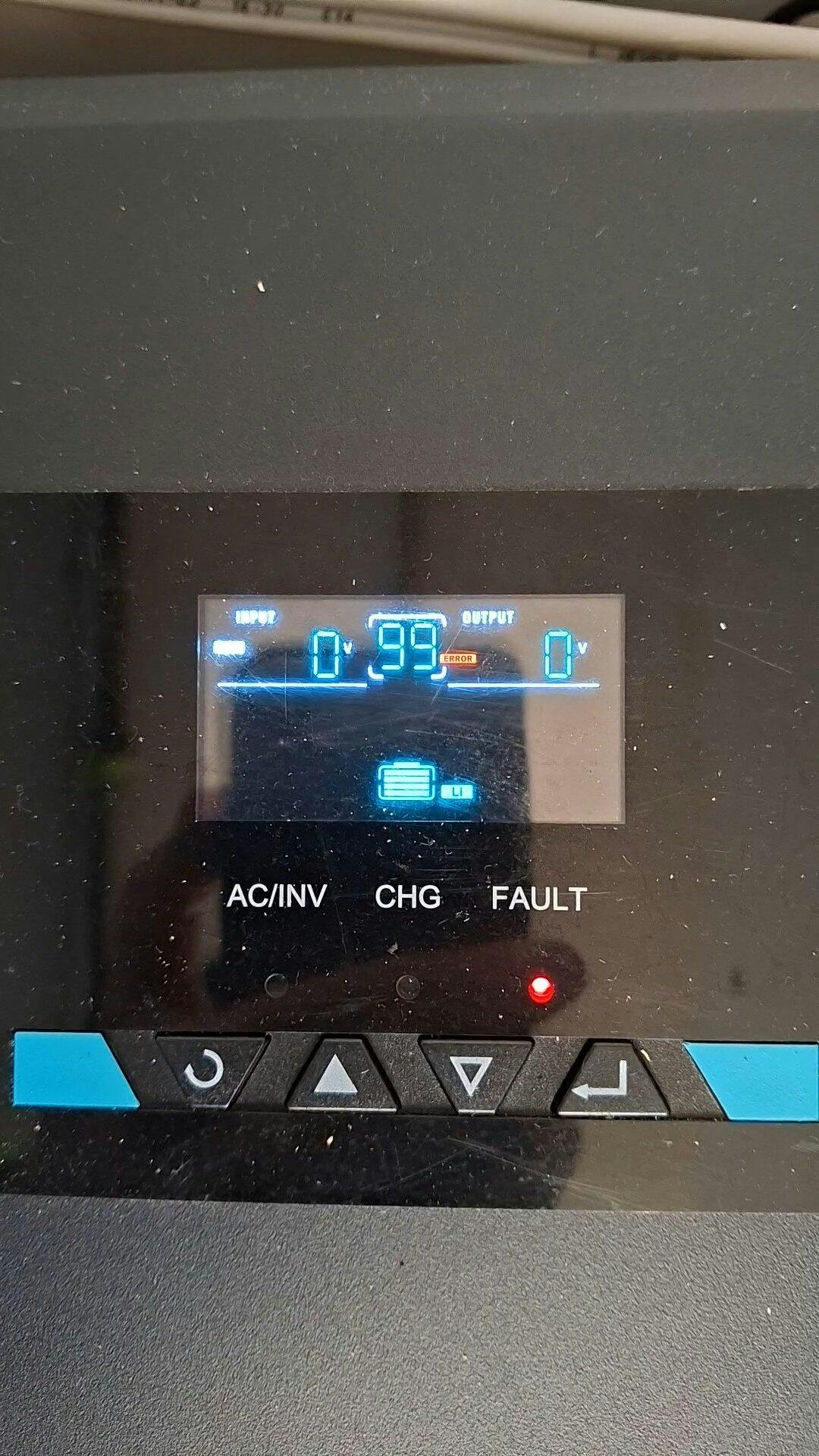

Intelligent LCD Display Panel
Stay informed about system status and input/output power details, ensuring optimal energy management and a seamless off-grid experience.
Compact Size for RV


Learn more

Connect with Renogy customers.
Go to Power Plus Community

Still have questions?
Ask our specialist
NOTE:
- Do not over-torque or over-tighten the terminals. Over-tightening could potentially damage the unit.
- Be mindful of the positive and negative poles. Reversing the poles may cause permanent damage to the inverter and will likely blow the internal fuse.
- Avoid switching on the inverter with the load (electronic devices) already powered on. Some electronic devices have a high initial power surge when starting, which could trigger an overload.
- When turning off the inverter, switch off the electronic devices first. Although the inverter is off, the capacitors may still hold a charge. Ensure the DC and AC terminals are disconnected if altering the circuitry.
3000W 12V Inverter Charger 1 x
|
Battery Temperature Sensor 1 x
|
Inverter Wired Remote Control 1 x
|
3000W 12V Pure Sine Wave Inverter Charger | |
---|---|
ELECTRICAL SPECIFICATIONS
|
|
Rated Output Power: 3000W | Surge Power (Peak Power): 9000W |
Nominal Output Voltage RMS: 230VAC (200~240VAC, 10V interval) | Output Frequency (Nominal): 50 Hz |
Nominal Efficiency: 90% Peak | No Load Power Consumption: Normal: <30W; Power Saving: <15W |
Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER | Operating Temperature: 0 ~ 40°C / 32 ~ 104°F |

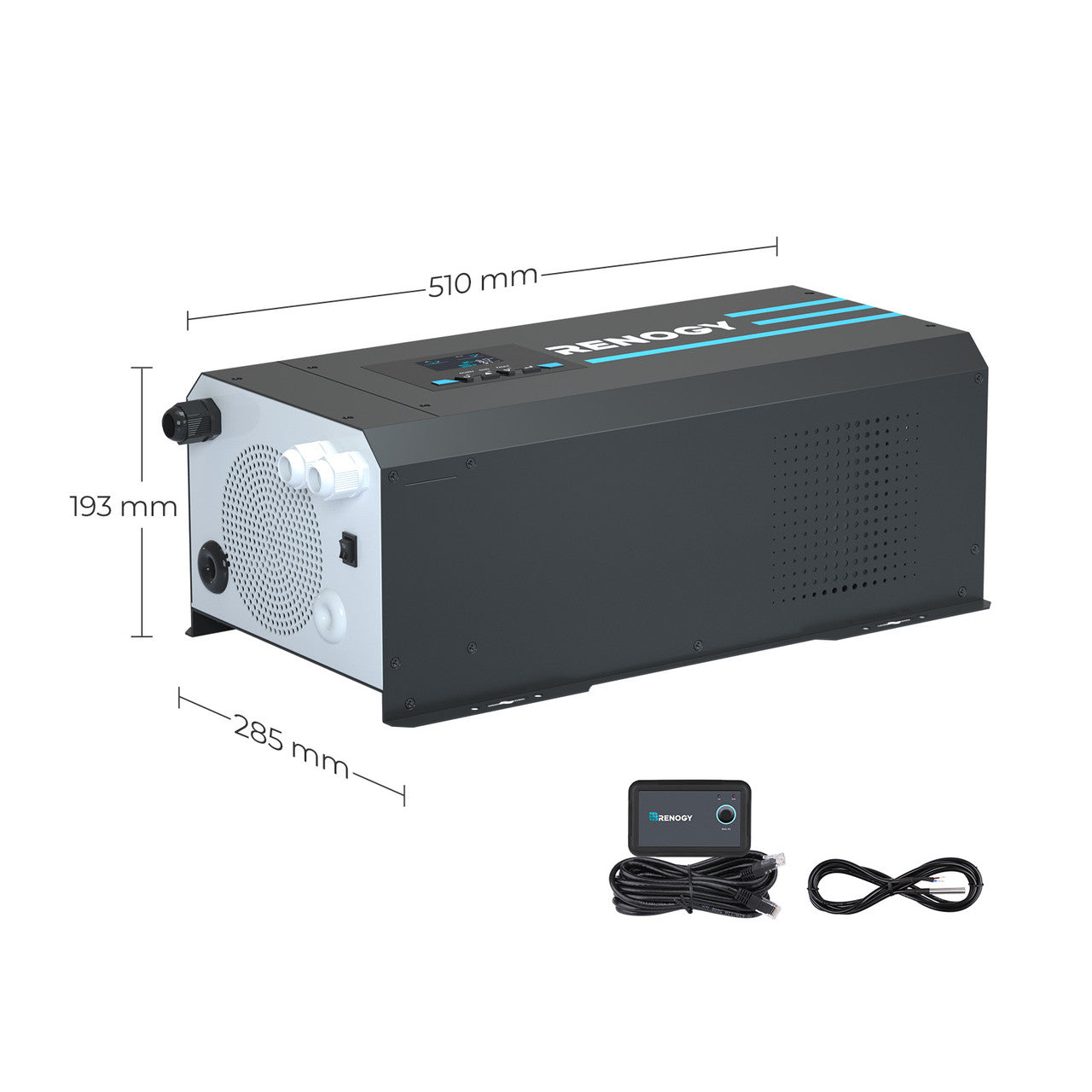

Dimensions: 510 x 285 x 193 mm / 20.1 x 11.2 x 7.6 in | Weight: 28.8 Kg / 63.5 lbs |
Output Current: 5-75A; configurable, 5A intervals | Optimal Efficiency: >85%C |

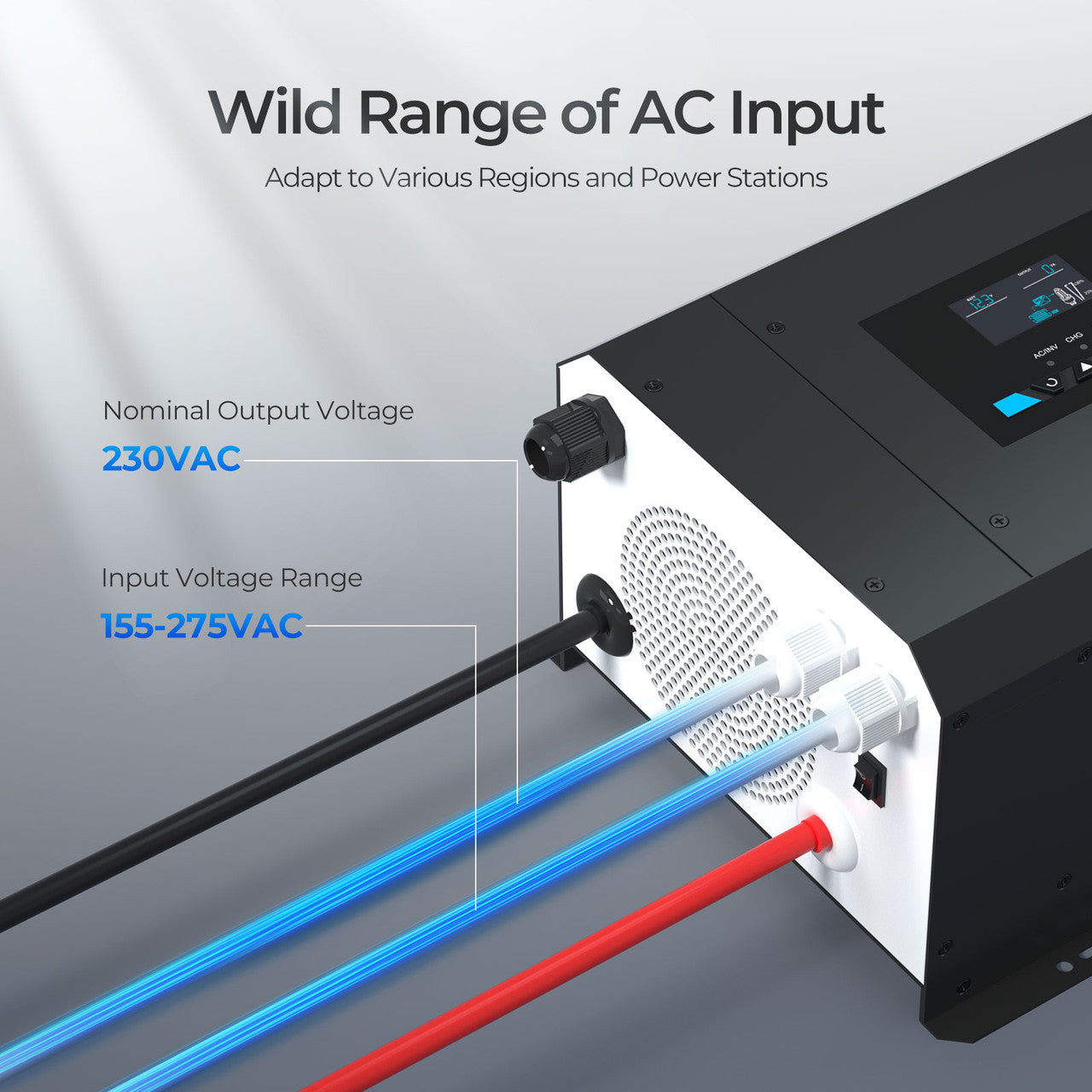

Nominal Input Voltage: 230 VAC | Input Voltage Range: 155-275 VAC |
Input Frenquency Range: 40Hz - 70Hz | Input Wave Form: Pure Sine Wave (Utility or Generator) |
Transfer Time: ~ 10ms | Transfer Relay Rating: 30A |
Certifications: CE |
Package Includes
The First Option: inverter charger x1, remote control x 1 |
Material and Workmanship Warranty
Warranty Period: 1-year |
1. What's the difference between an inverter charger and an inverter?
The Inverter acts as a DC to AC converter that allows you to power your household appliances. The Inverter charger not only acts as a DC to AC converter that allows you to power your household appliances but also charge and maintain a battery bank when connected to shore power.
2. Can I use the inverter with a 24V system?
No. This model can only work with a 12V battery system.
3. What's a battery temperature sensor?
The charger needs to select the charging mode according to the battery voltage. The Temperature Sensor can compensate the battery voltage affected by temperature so that the charger recognizes the voltage more accurately and assures stable and constant charging to the battery, Prolong battery lifespan.
Note: The DC-DC Temperature Sensor cannot use with Lithium batteries.
Note: The DC-DC Temperature Sensor cannot use with Lithium batteries.
4. What size inverter should I buy?
1. Sizing the right power output.
Inverters will be rated by a wattage value, telling you how many watts they can run at one time. For example, imagine you had a 500 Watt Fridge and 800 Watt Air Conditioning. These two items would be 1300 Watts and would require an inverter with a higher wattage than 1300W. Renogy 2000W and 3000W inverter will meet your power needs.
2. Check your battery voltage.
The DC voltage rating on the inverter will tell you what battery bank it is compatible with. For example, a 12V battery bank will require an inverter that is compatible with 12V DC input.
3. Size your installation spaces.
What area or space will you set your inverter? Make sure the inverter will fit in the space you have in mind with enough room around it for proper ventilation and no fire hazards.
4. Remote operation is important.
Renogy pure sine inverters come with convenient remote control and DC HOME APP options so that you can operate the unit from afar.
Inverters will be rated by a wattage value, telling you how many watts they can run at one time. For example, imagine you had a 500 Watt Fridge and 800 Watt Air Conditioning. These two items would be 1300 Watts and would require an inverter with a higher wattage than 1300W. Renogy 2000W and 3000W inverter will meet your power needs.
2. Check your battery voltage.
The DC voltage rating on the inverter will tell you what battery bank it is compatible with. For example, a 12V battery bank will require an inverter that is compatible with 12V DC input.
3. Size your installation spaces.
What area or space will you set your inverter? Make sure the inverter will fit in the space you have in mind with enough room around it for proper ventilation and no fire hazards.
4. Remote operation is important.
Renogy pure sine inverters come with convenient remote control and DC HOME APP options so that you can operate the unit from afar.
5. Do I need a Modified Sine Wave or Pure Sine Wave inverter?
Modified sine wave inverters are older technology and generally less expensive. They can be used for many standard appliances but may cause issues with delicate electronics or audio equipment. Some devices may work but may run hotter than usual. Pure sine wave inverters are a bigger investment but are far more versatile. a) The output voltage waveform is a pure sine wave with very low harmonic distortion, providing clean power similar to utility-supplied electricity. b) Inductive loads, such as microwave ovens and motors, run faster, quieter, and cooler. c) Reduces audible and electrical noise in fans, fluorescent lights, audio amplifiers, TVs, game consoles, fax machines, and answering machines. d) Prevents crashes in computers, printing errors, and glitches or noise in monitors.
6. Can I use the Bluetooth Module to monitor this inverter charger from my phone? Which Bluetooth Module should I buy?
We apologise, but there is no Bluetooth module compatible with this inverter.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
