Experience Our Most Compact 100Ah Battery

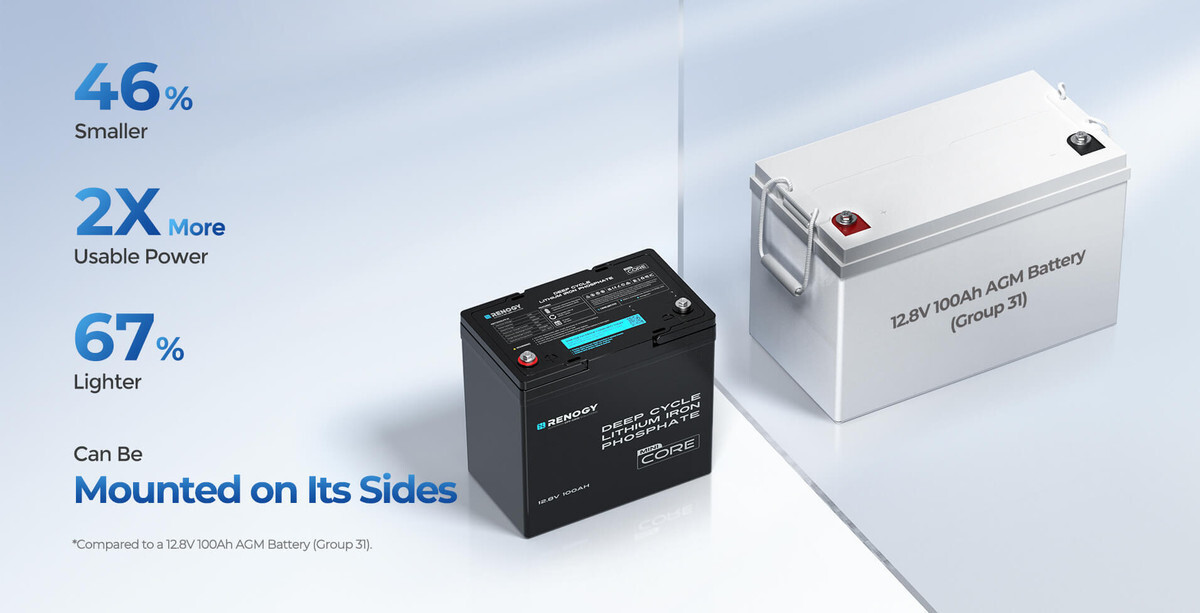

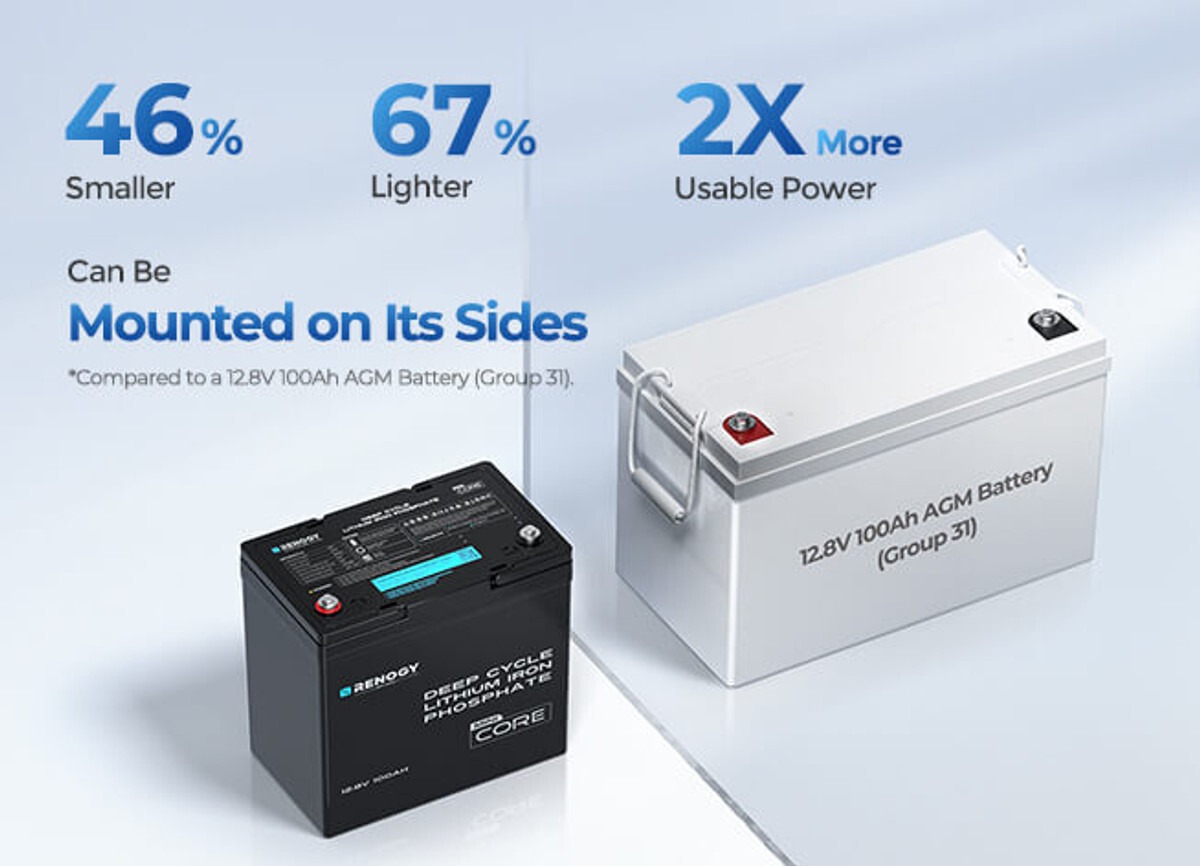

Lead-Acid vs Core Mini
Description: Same power output in a lighter, more compact design
The Compact Advantage
Next-gen design with premium safety and full power
Prismatice Cells
Peak Output Current
Rugged Design
Certified Safety
10X More Battery Life
Premium EV-grade cells deliver 5000 cycles at 80% discharge – outperforming traditional lead-acid batteries in both lifespan and reliability
300A Peak Surge Power
Delivers powerful 5-second surge current for high-demand appliance start-up
Vibration-Resistant Design
Metal cell spacers prevent damage in rough terrain and choppy waters
Safety Certified Design
UL, FCC, and CE certified for reliable performance in any application
Teardrop Trailers
Kayak Fishing
Compact Power for Endless Adventure
The perfect power solution for teardrop trailers and compact RVs
Built for Better Fishing
Reliable energy for trolling motors, fish finders, and all your essential fishing gear
Space Requirements
Before installing the battery, please note that you need to leave 1.97-3.94 in (50-100 mm) for the top of the battery; the side with busbars needs to be left at least 7.87 in (200 mm).
Which Battery Is Right for You?
Package Includes
Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
x 1
Long Terminal Bolts (M8 x 1.25 x 15 mm)
x 2
User Manual
x 1
Frequently Asked Questions
1. Can this battery be used in series to build a 24-volt system？
Yes. You can connect Renogy 12.8V 100Ah Core Mini Batteries in series for a 24V off-grid power system.
2. Does this Core Mini LFP battery have low-temperature cut-off?
Yes. It is built in with low-temperature charging protection to prevent the battery from charging below 32°F / 0°C.
3. How many Renogy 12.8V 100Ah Core Mini Series Batteries can I connect at most?
You can connect up to 16 batteries in series and parallel to expand power to 20.48kWh. Batteries of the same model and similar capacity are required.
4. Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
No. This battery does not have a Bluetooth port for a Bluetooth Module. However, you can connect your battery with a Renogy 300A Battery Shunt (sold separately), which can send the data to the DC Home app via Bluetooth so you can keep track of battery status in real time.
5. How to recharge my LiFePO4 batteries?
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger compatible with lithium iron phosphate batteries.
