Smaller, Sleeker, Still Renogy Strong.
Power up with compact confidence! The Renogy 12V 200Ah Core Mini LiFePO4 Battery is 21% smaller than its counterparts while maintaining a robust 200A BMS plus a low-temperature cut-off for enhanced protection. Perfect for both travel and home use, it’s the ideal solution for versatile power demands.
21% Smaller Than Its Counterparts
This battery's compact and sleek design saves space, frees up room for easier connections and maintenance, and fits in various battery boxes, including 8D and 4D sizes.

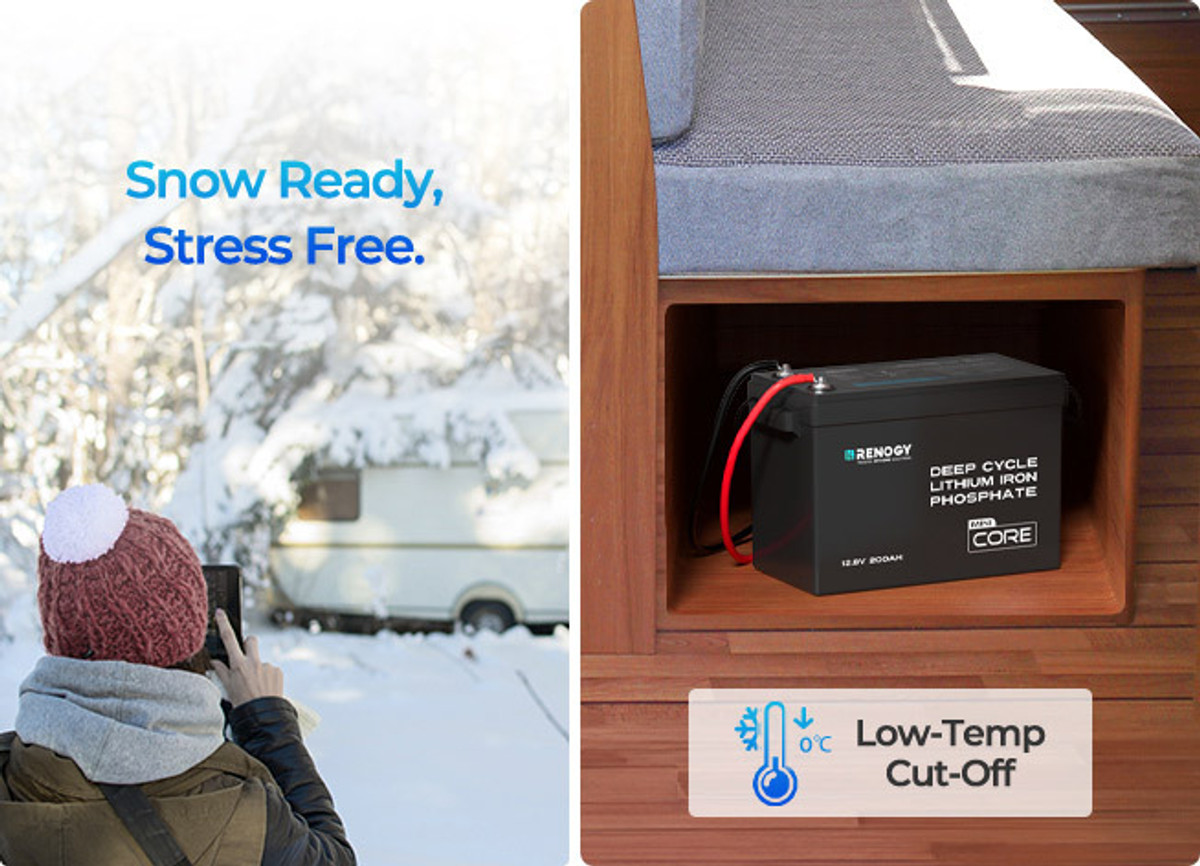

Hands-Free Low-Temp Cut-Off
The built-in BMS with an automatic low-temperature cut-off means you don't have to hover around your lithium battery, manually shutting it down. Stay relaxed and cozy during winter travels while your battery handles itself, letting you focus on the adventure.
Peak Power Output
Capable of discharging up to 380A within 10 seconds, this portable power beast can smoothly pump up energy-demanding appliances like microwaves that require a high start current.

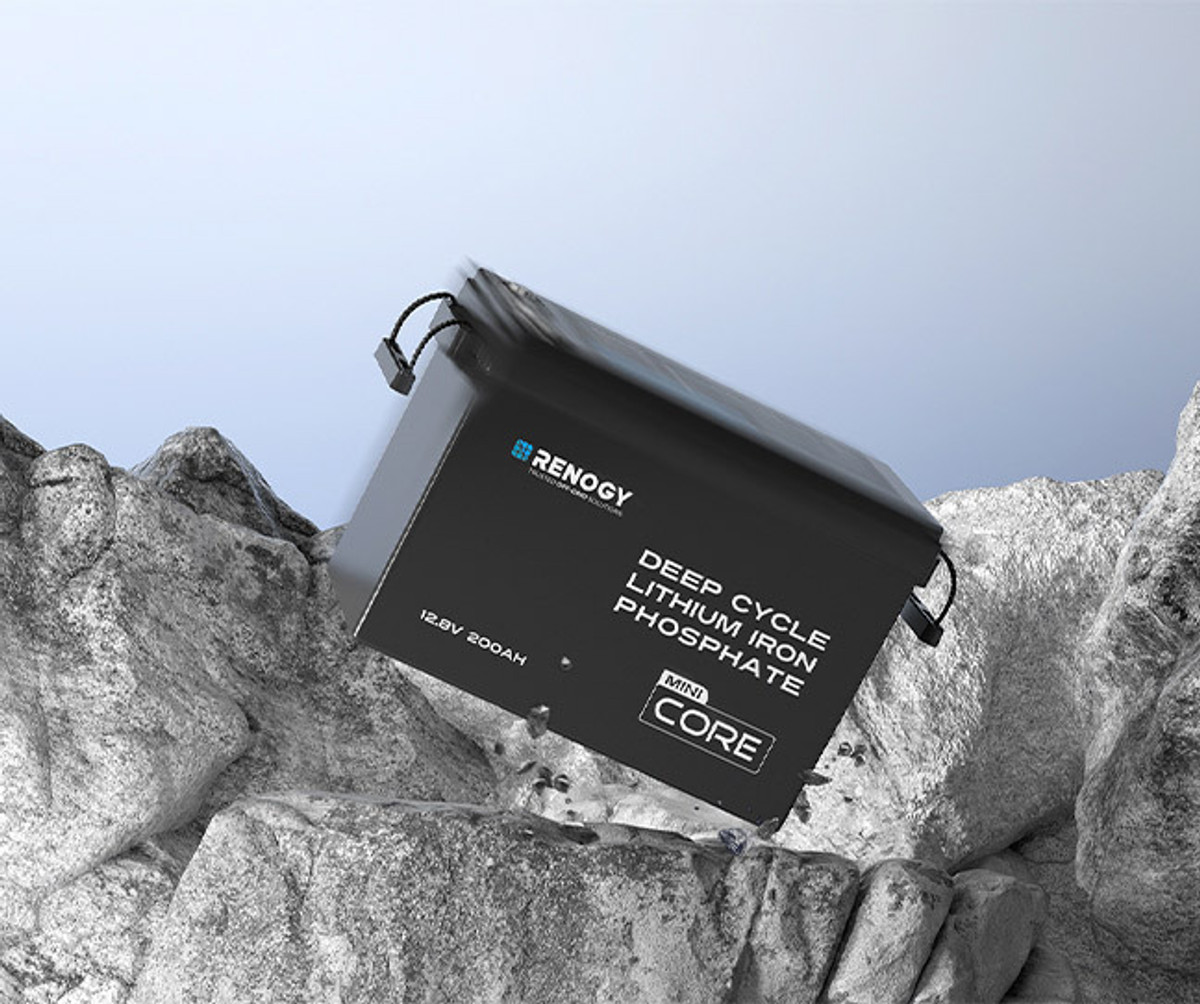

Vibration-Resistant Design
Metal cell spacers prevent damage in rough terrain and choppy waters.
Tested & Trusted Power
Backed by rigorous testing & certifications including UL, FCC, and CE, this mini-sized 12.8V 200Ah LiFePO4 Battery delivers unmatched reliability and is ready for a wide range of uses.
Power Your RV Adventure
Power Your Marine Adventure
Package Includes
Core Mini - 12.8V 200Ah LiFePO4 Battery w/ Low-Temperature Protection
x 1PCS
Specifications
Rated Capacity (0.5C, 25°C)
200Ah
Nominal Voltage
12.8V
Energy
1280Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Discharging Parameters
Maximum Continuous Discharge Current
200A
Peak Discharge Current
380A@10s
Charging Parameters
Voltage Range
10V to 14.6V
Maximum Continuous Charge Current
100A
Temperature Parameters
Operation Temperature Range
Charge: 32°F to 131°F (0°C to 55°C)
Operation Temperature Range
Discharge: -4°F to 149°F (-20°C to 65°C)
Storage Temperature Range
-4°F to 140°F (-20°C to 60°C)
Operation Relative Humidity
5% to 95%
Mechanical Specifications
Dimension (L x W x H)
15.12×7.64×9.96 in/384×194×253 mm
Weight
42.44 lbs / 19.25 kg
Terminal Bolt Size
M8×1.25×12 mm & M8×1.25×16 mm
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Warranty
5-year material warranty
Frequently Asked Questions
1. I have 4 Renogy 100W 12V solar panels. Will these work with this LiFePO4 battery or is that too much wattage?
Yes, but please make sure that your solar charge controller is capable of handling the power your solar panels can output. Do not connect solar panels directly to batteries without a solar charge controller. Feel free to contact us if you have questions about how to size the solar charge controller for your system.
2. Can this battery be used in series to build a 48-volt system？
Yes. Renogy 12V Core Mini Series Batteries can be connected in series to ramp up voltage for a 24V, 36V, or 48V off-grid power system. You can also consider wiring batteries in series first and then wire sets of batteries (same models required) in parallel for maximum power up to 40.96kWh.
3. How many Renogy 12V 200Ah Core Mini Series Batteries can I connect at most?
The Core Mini Series batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 4 batteries in series, 4 in parallel, or 16 in the series-parallel connection. Batteries of the same model and similar capacity are required.
4. How long will the Renogy Core Mini Series Lithium Iron Phosphate Battery last?
Renogy 12V 200Ah Core Mini Batteries are capable of delivering 5000 cycles with a recommended 80% depth of discharge (DOD). Meanwhile, these batteries combine a true 200A battery management system (BMS), IP65 protection, and rugged structure design to brace for challenges wherever you go.
5. Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt (sold separately) to keep track of battery status.
6. How to recharge my LiFePO4 batteries?
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with lithium iron phosphate batteries.
7. What should I keep in mind when connecting batteries in series or parallel?
"When wiring batteries, make sure all connection cables are the same length and wire gauge. This reduces resistance differences and helps ensure balanced current flow—especially important when combining parallel groups into a series setup. Also, avoid mixing batteries from different brands, models, or usage histories. Differences in internal resistance or battery aging can lead to uneven charging and discharging, which may cause performance issues or potential safety concerns."
