Provides up to 6% more power than rated capacity for better performance.
Delivers 400A for 10 seconds, starting heavy loads with ease.
Supports series, parallel, or both connections for flexibility.
Features a 200A BMS with low-temp cut-off for safety and efficiency.
Comes with a 5-year warranty and 24-hour support for peace of mind.

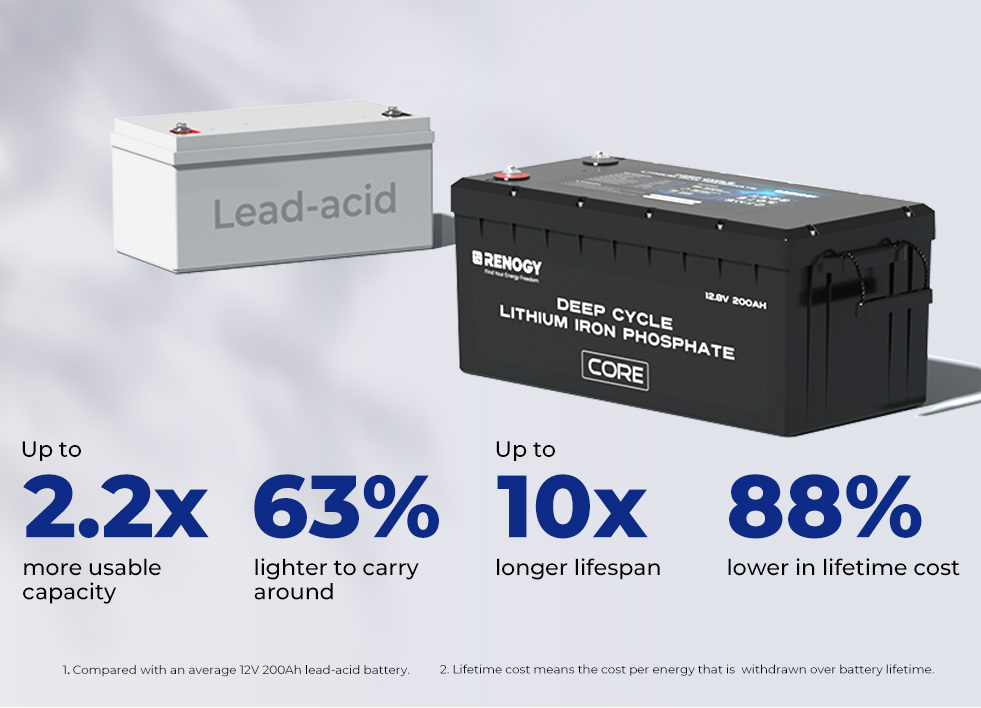

Meet Renogy 12V 200Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without any compatibility issues.
With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer.
Off-grid living can be challenging, but the Renogy 12V 200Ah Core Battery offers a true 200A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.
Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 200Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.
Renogy 12V 200Ah Core Series LiFePO4 Battery
Your trusted, one-stop upgrade from lead-acid to 200Ah lithium is here.

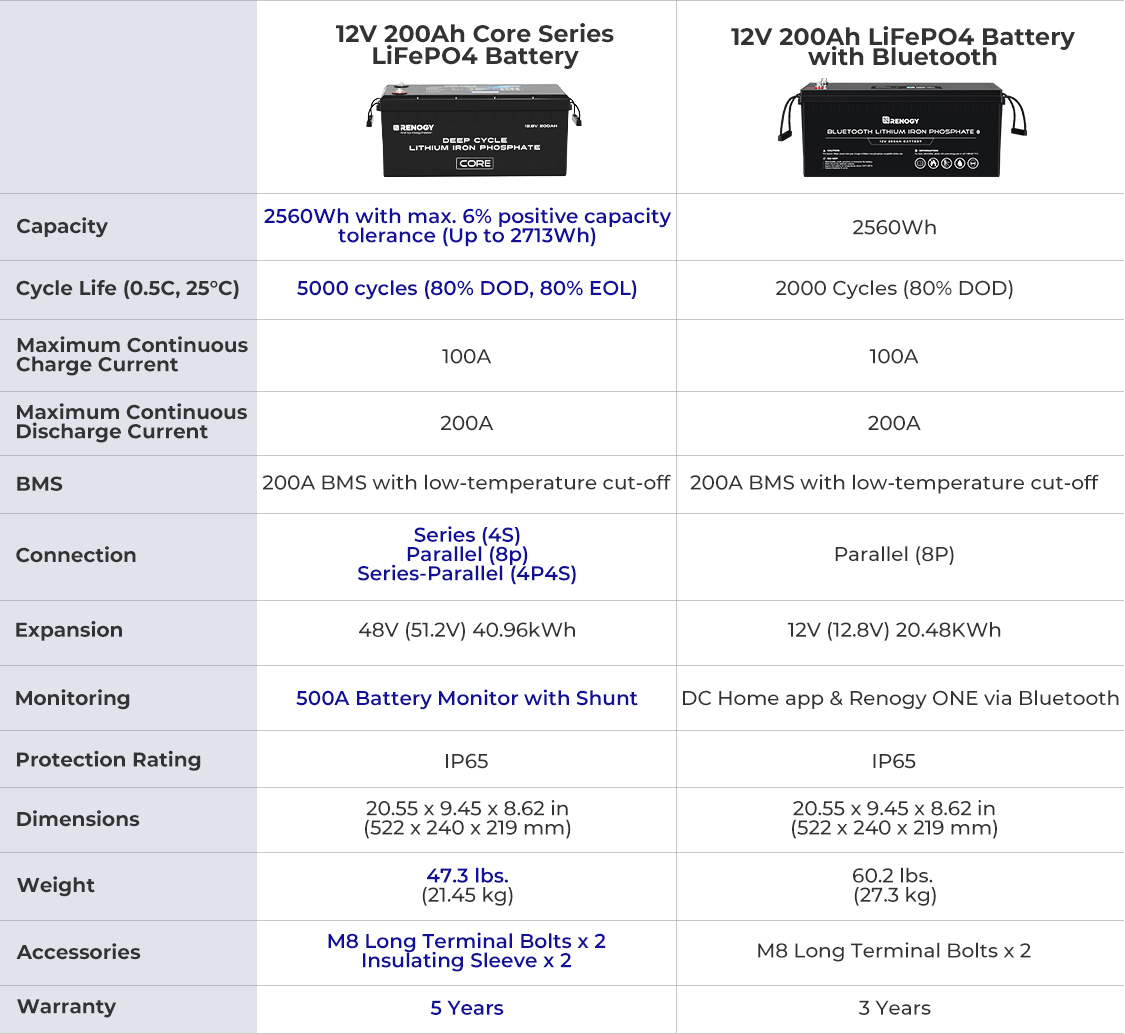

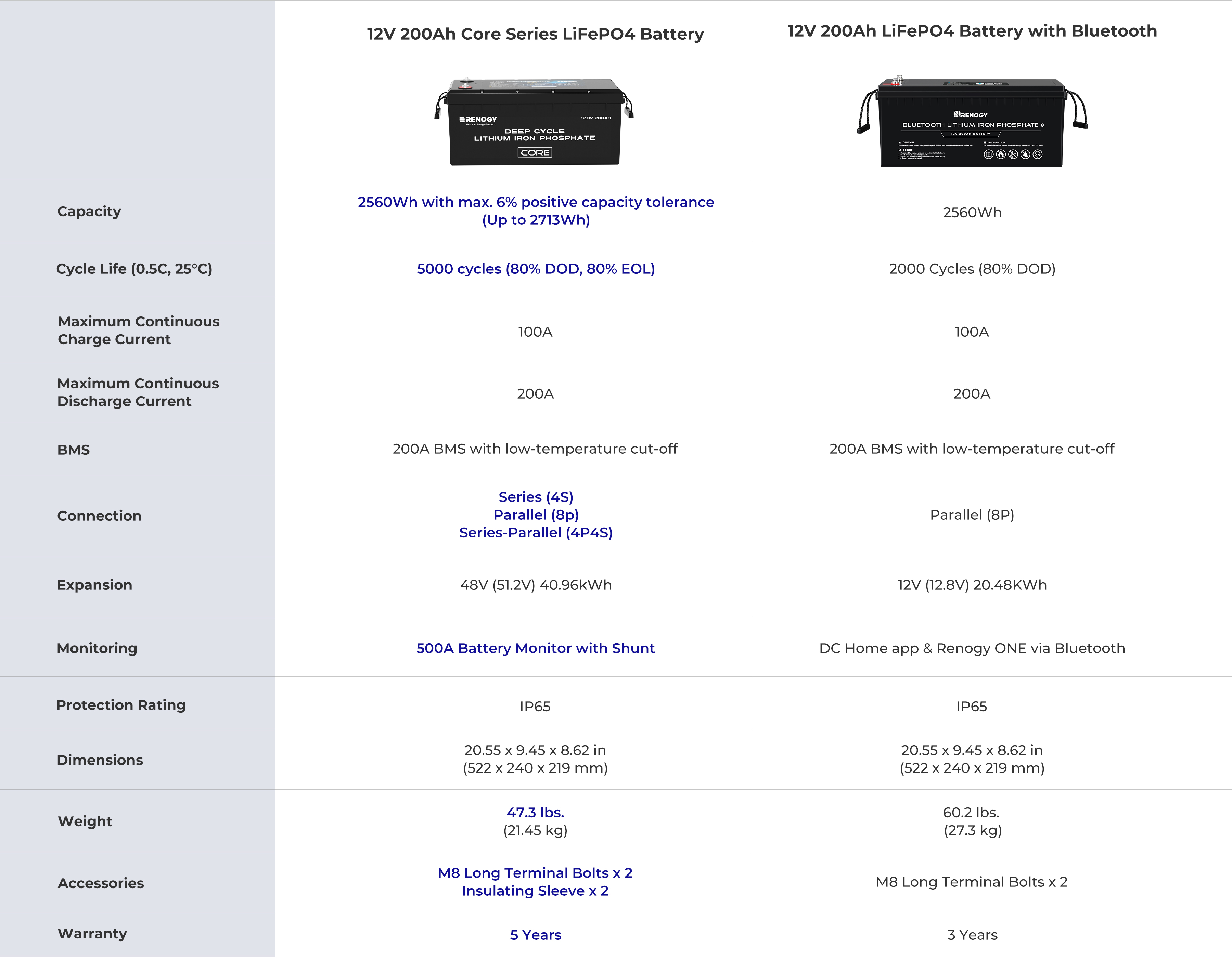

200Ah Core vs. Other LiFePO4
Unparalled performance for demanding energy needs

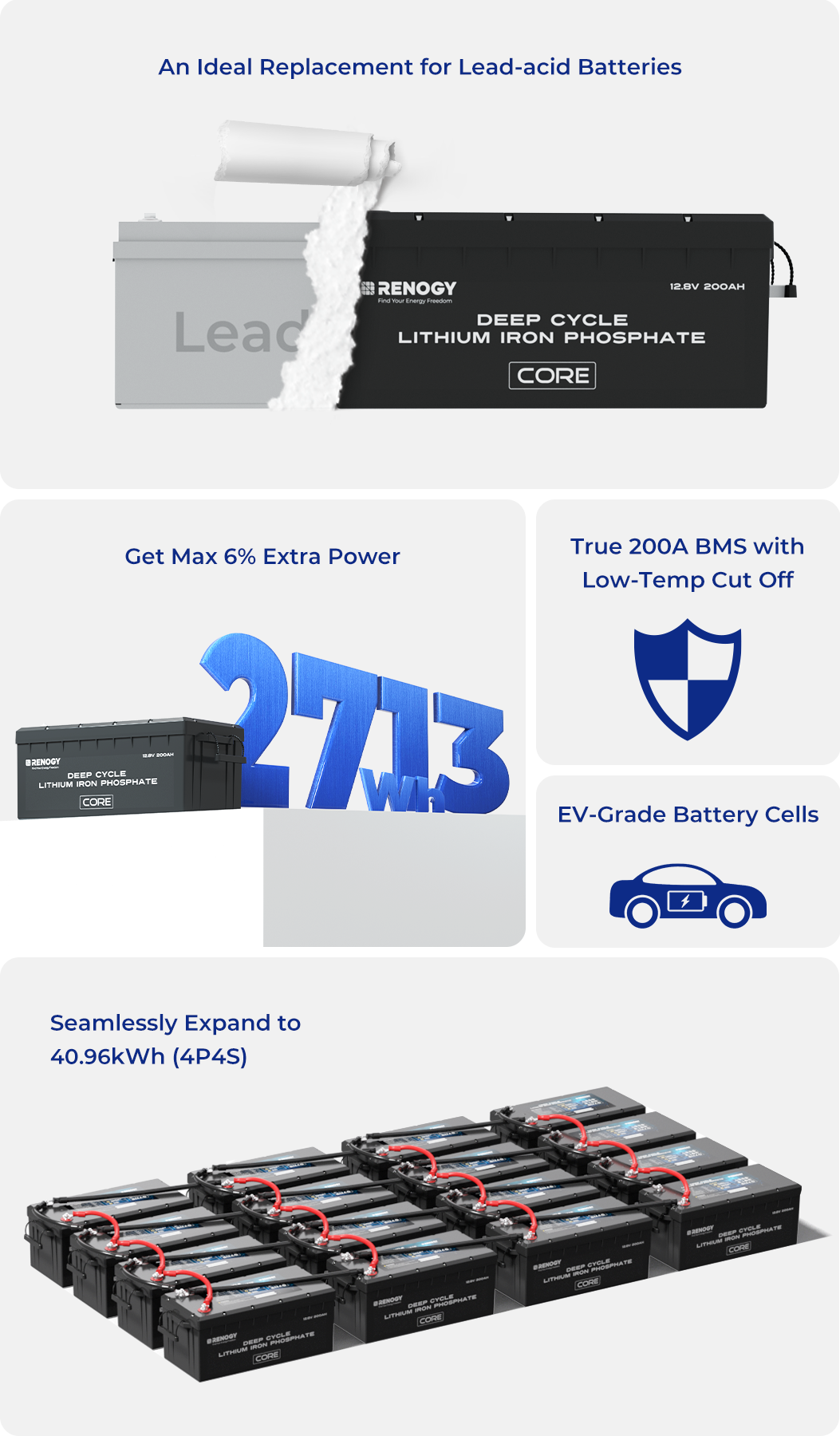

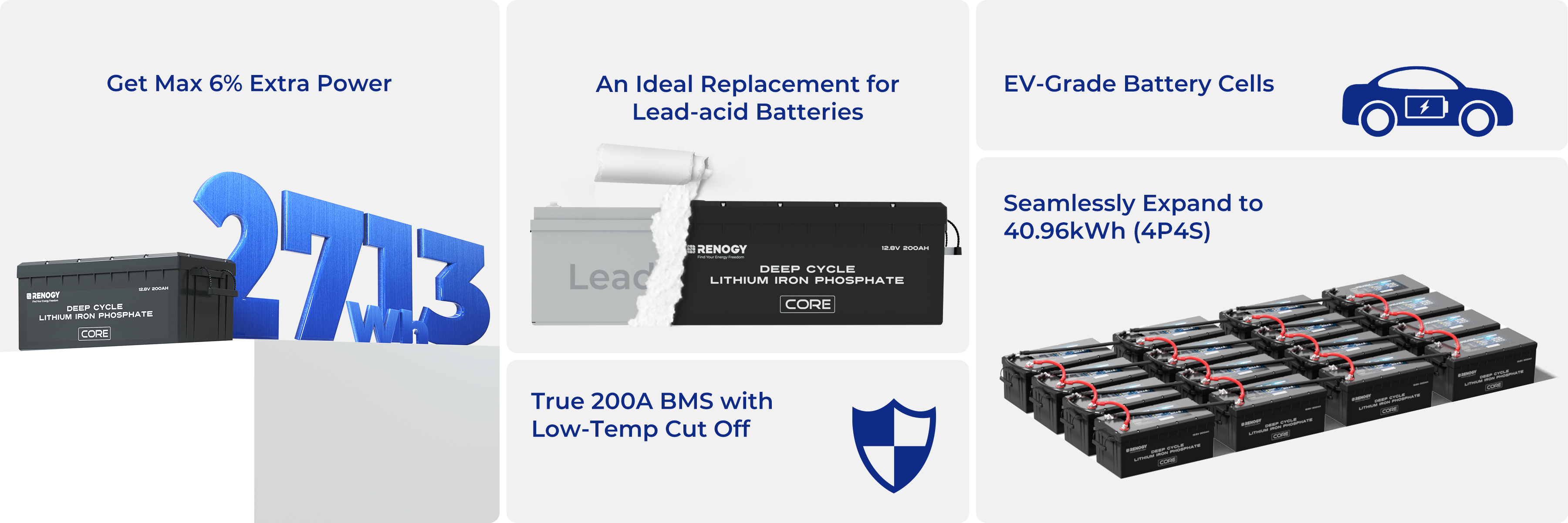

Extra Power. More Possibilities.
The Renogy 12V 200Ah Core delivers more than expected. With a max. 6% additional capacity, you’re ready for unexpected challenges like storms, hurricanes, wildfires, and more.
Powerful to the Core
Providing reliable power almost 10 times longer than standard lead-acid batteries, the Renogy 12V 200Ah Core LiFePO4 Battery is equipped with EV-grade cells for superior, lasting performance.
Year-round Protections
The built-in 200A battery management system (BMS) ensures peace of mind year-round. The low-temperature cut-off feature actively prevents charging when temperatures drop below 32°F.
Protections from Bumps
We understand the journey is often bumpy. That’s why the battery is designed with rugged protection to safeguard components from impacts on the road.

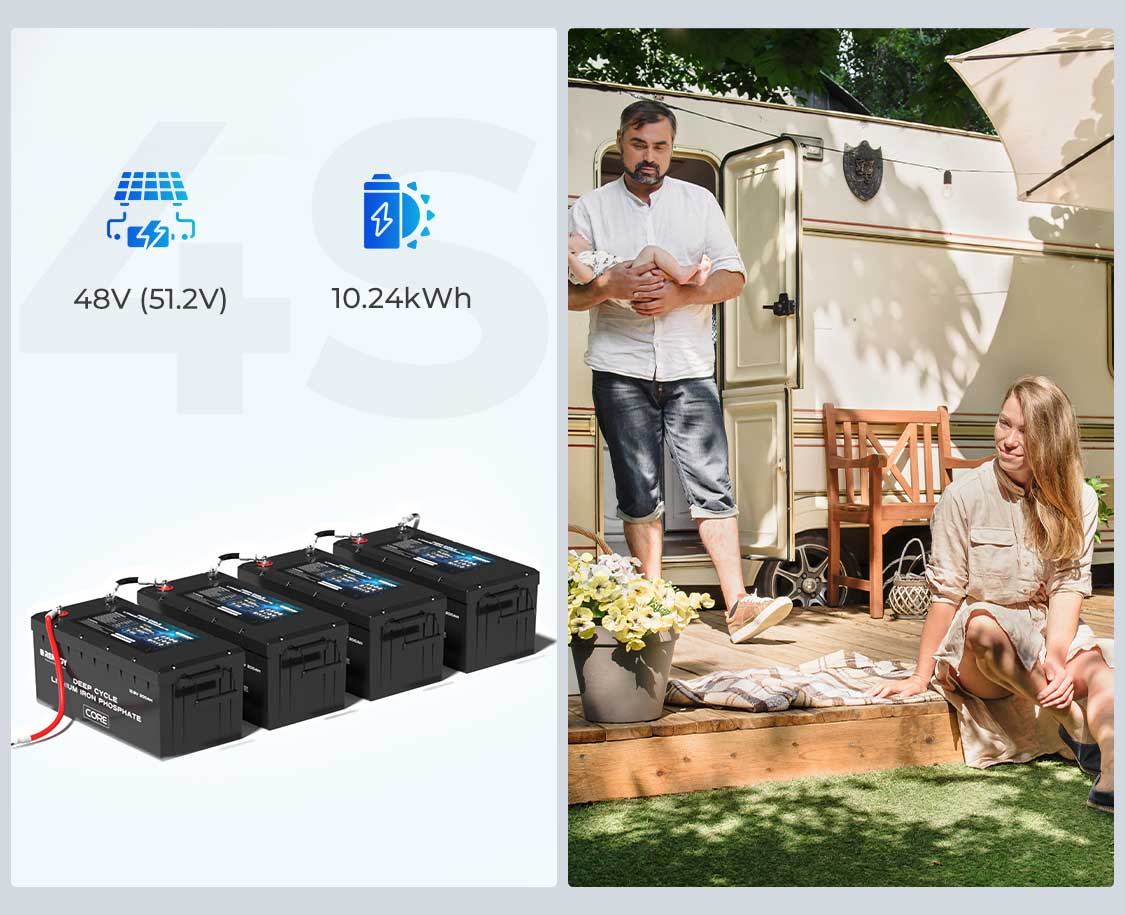

Connect in Series
Easily wire 12V 200Ah Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.

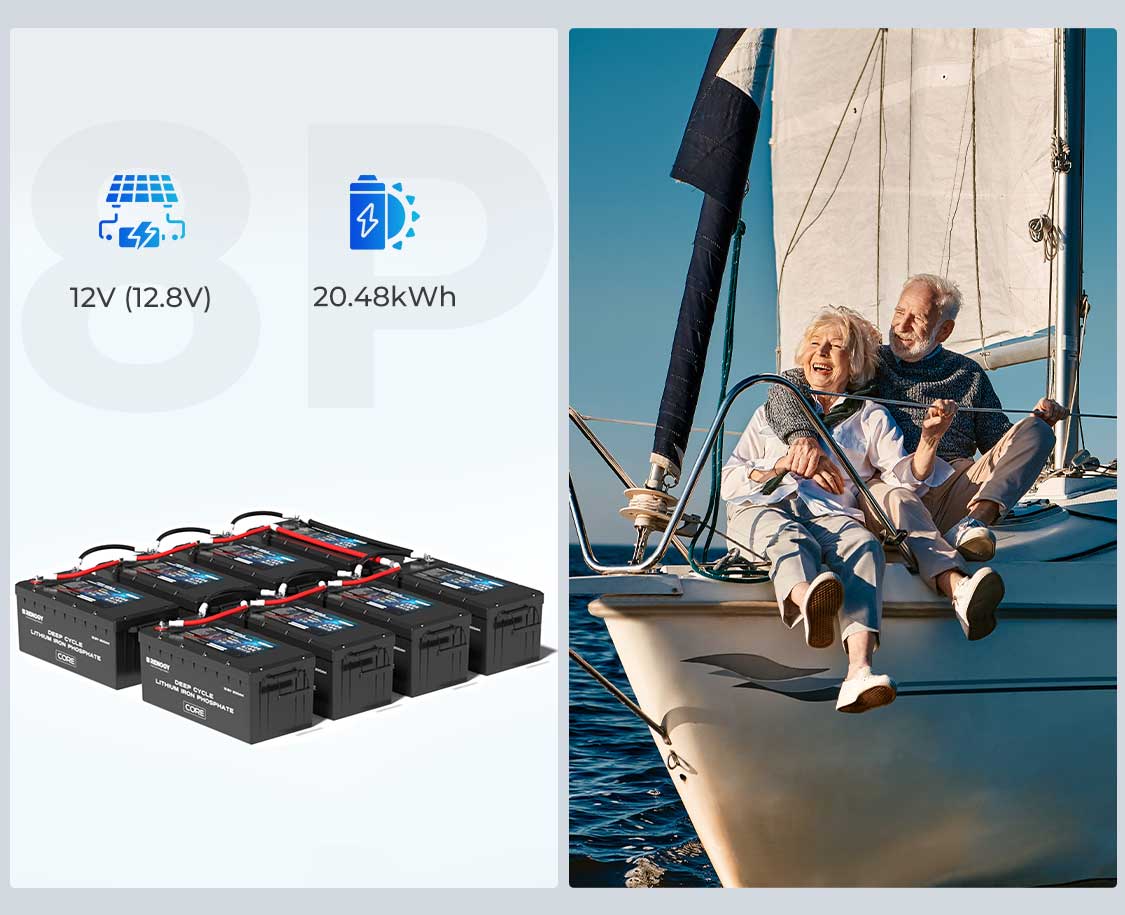

Connect in Parallel
Extend the runtime of your off-grid power system by connecting batteries in parallel. With 8 Renogy 12V 200Ah Core Series Batteries, you can achieve up to 20.48kWh of power.

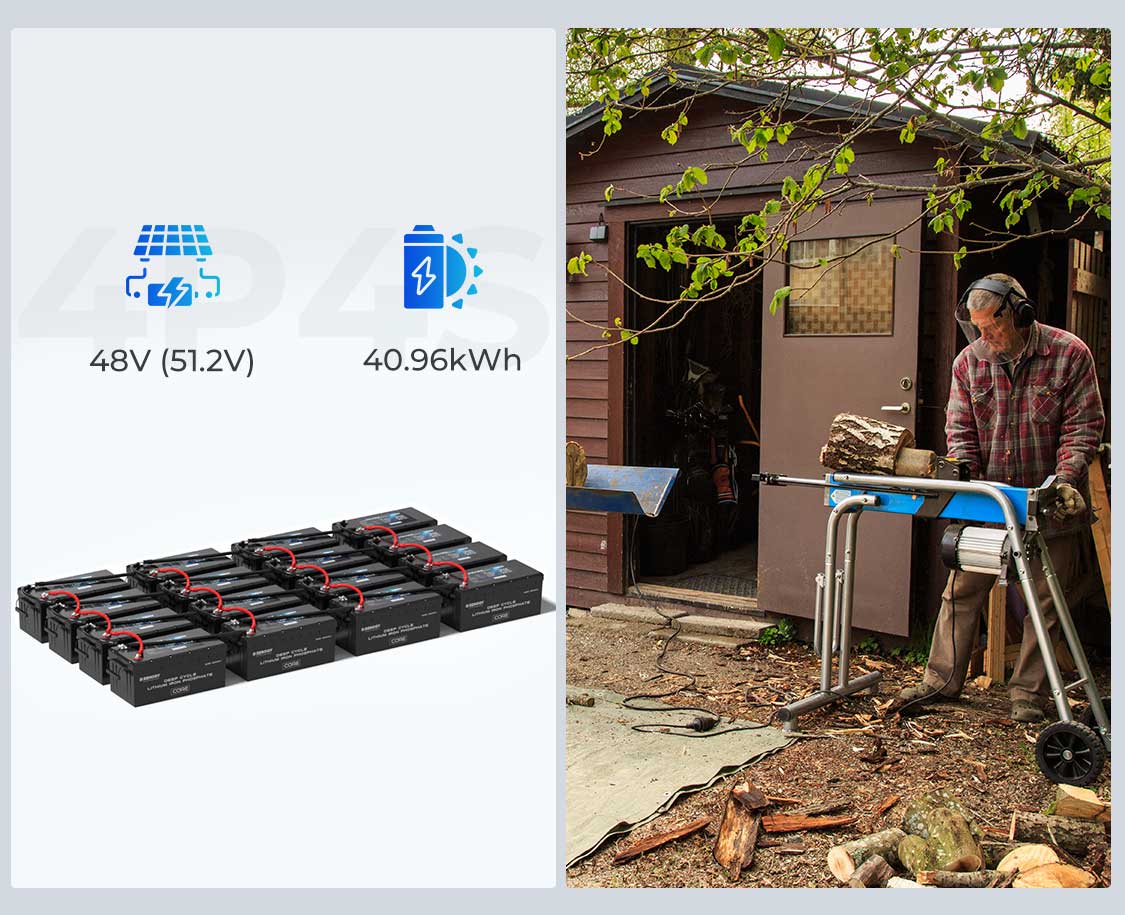

Connect in Series-Parallel
Looking to boost both voltage and capacity? Try connecting sets of batteries in series-parallel to maximize your system's power and be ready for emergencies like outages and hurricanes.
What People Are Saying About It
See how the 12V 200Ah Core Series LiFePO4 Battery makes power upgrades and system setups easier.
Made to Explorer
BC backwater
RV Travel Trailers
Dimensional Reference Guide
Before installing the battery, ensure you leave 1.97-3.94 inches (5-10 cm) of space above the battery and at least 7.87 inches (20 cm) on the side with the busbars.
The Renogy Difference
Going solar doesn't have to be complicated. Renogy makes building your system faster so you can go further.
10+ Years' Expertise in Off-Grid Power Solutions
Local Warehouses in the AU
5-Year Warranty
24-Hour Prompt Response
Find the Power That Is Right for You
Learn more
Connect with Renogy customers.
Go to Power Plus Community </span >
Still have questions?

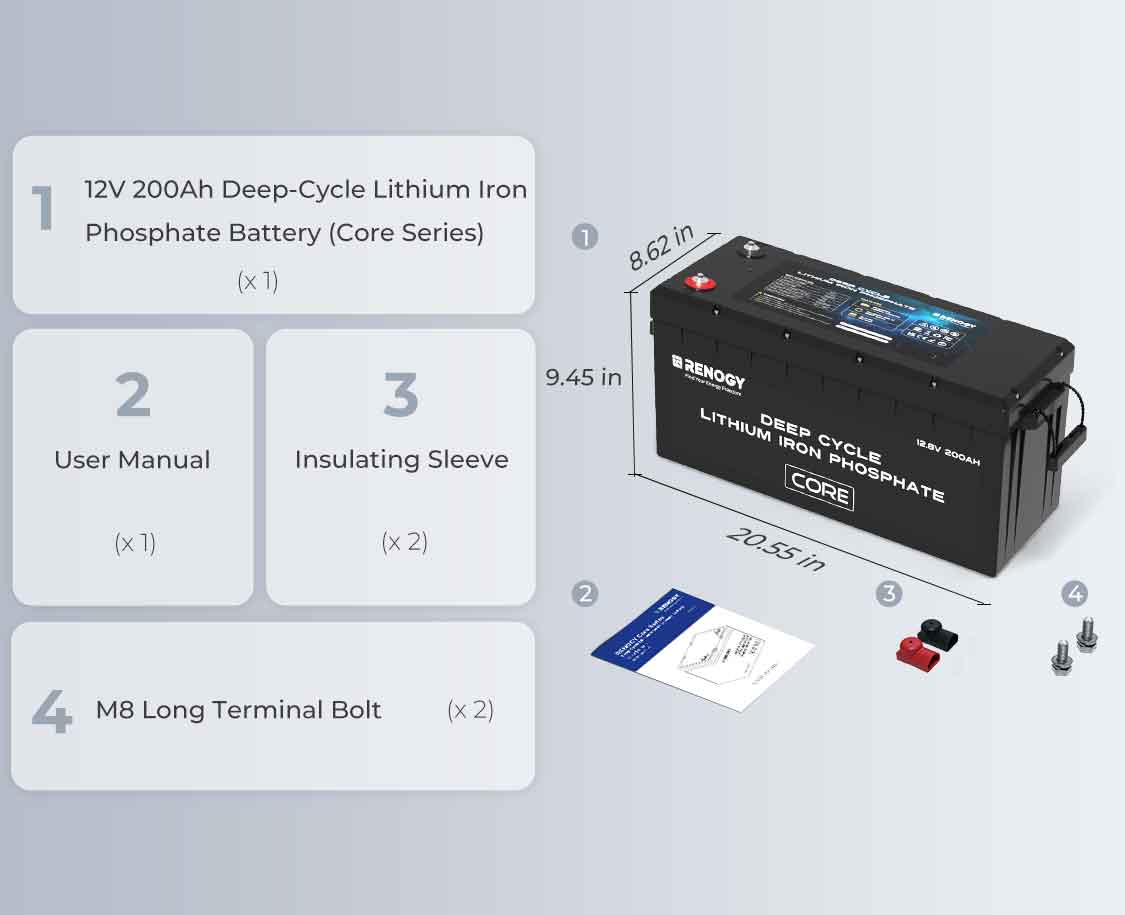

Ask our specialist </span >Package Includes
- Core - 12V 200Ah Lithium Iron Phosphate Battery x 1
- Long Terminal Bolts x 2
- Insulating Sleeve x 2
- User Manual x 1
| Renogy 12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery</span > | |||
|---|---|---|---|
| Electrical Specifications | Temperature Parameters | ||
| Rated Capacity (0.5C, 25°C) | 200AH | Operation Temperature Range | Charge: 32°F to 131°F / 0°C to 55°C |
| Nominal Voltage | 12.8V | Discharge: -4°F to 140°F / -20°C to 60°C | |
| Energy | 2560Wh | Storage Temperature Range | -13°F to 149°F / -25°C to 65°C |
| Cycle Life (0.5C/1C, 25℃) | 5000 Cycles (80% DOD, 80% EOL) | Operation Relative Humidity | 10% to 95% |
| Charging Parameters | Mechanical Specifications | ||
| Charge Voltage | 14.4V | Dimension (L x W x H) | 20.55 x 9.45 x 8.62 in / 522 x 240 x 219 mm |
| Maximum Continuous Charge Current | 100A | Weight | 47.3 lbs. / 21.45 kg |
| Discharging Parameters | Terminal Bolt Size | M8 x 1.25 x 15 mm | |
| Maximum Continuous Discharge Current | 200A | Protection Rating | IP65 |
| Peak Discharge Current | 400A@10s | Warranty | |
| Certifications | 5-year material warranty | ||
| MSDS, UN38.3, FCC, PSE, CE, UKCA, IEC62619 | YES | ||
1.What is the cycle life of this battery?
The cycle life of this battery is 5000 cycles (0.5C/1C, 25°C) with an 80% depth of discharge (DOD) and 80% end-of-life (EOL) capacity.
2. What is the grade and type of cell inside this battery?
The internal cells of this battery are square prismatic cells, which are EV-grade (Class A) lithium-ion battery cells.
3. To ensure the battery cycle life, what is the recommended depth of discharge (DOD)?
It is recommended not to discharge the battery beyond 80% of its capacity to maximize its cycle life.
4. How are the cells inside the battery connected?
The cells inside the battery are connected in a 4S2P configuration (four cells in series, two in parallel).
5. What are the installation requirements for the battery?
The battery installation environment should be clean, cool, and well-ventilated. Keep the battery away from oil and dirt, as these can cause current leakage, self-discharge, and potential short circuits.
Safe operation requires environmental temperatures between -4°F and 140°F (-20°C to 60°C), with an ideal range of 59°F (15°C) to 86°F (30°C).
The battery should not be stacked or installed upside down.
Safe operation requires environmental temperatures between -4°F and 140°F (-20°C to 60°C), with an ideal range of 59°F (15°C) to 86°F (30°C).
The battery should not be stacked or installed upside down.
6. How can the battery be connected?
The battery can be connected in series (up to 4), in parallel (up to 8), or in series-parallel (up to 4S4P) for greater capacity and voltage.
7. What is the IP protection rating of the battery?
The battery is rated IP65, meaning it is protected against dust and water splashes.
8. Can the battery communicate with the DC Home APP/Renogy ONE M1/Renogy ONE Core?
No, this battery does not have built-in Bluetooth or an external communication port, so it cannot communicate with the DC Home App, Renogy ONE M1, or Renogy ONE Core.
9. Can I use this battery with other brands of batteries in series, parallel, or series-parallel?
No, batteries connected in series, parallel, or series-parallel must be of the same brand, type, voltage, and capacity to ensure balanced performance.
10. Before connecting the batteries in parallel, series, or series-parallel, are there any principles to follow for balanced charging and discharging?
Ensure the initial state of the batteries is the same. Fully charge the batteries separately and leave them to rest for 30 minutes. If the open circuit voltage difference is less than 0.1V, connect them in series, parallel, or series-parallel.
Batteries connected in series, parallel, or series-parallel should not have a time gap of more than six months between old and new batteries.
Follow the wiring instructions in the battery manual for optimal connections.
Batteries connected in series, parallel, or series-parallel should not have a time gap of more than six months between old and new batteries.
Follow the wiring instructions in the battery manual for optimal connections.
11. Does the battery automatically enter shelf mode when not in use for a long time?
No, the battery does not automatically enter shelf mode. It will need to be manually maintained if stored for long periods.
12. What is the self-discharge rate of this battery?
The self-discharge rate of this battery is less than 3% per month.
13. What kind of charger should I choose to charge this battery?
You should select a charger that:
1. Matches 12V LFP battery specifications
2. Has charging parameters that match the battery's requirements
3. Provides a charge current less than the battery’s maximum continuous charging current of 100A
4. Features reverse polarity, overcurrent, overvoltage, and overtemperature protection functions
1. Matches 12V LFP battery specifications
2. Has charging parameters that match the battery's requirements
3. Provides a charge current less than the battery’s maximum continuous charging current of 100A
4. Features reverse polarity, overcurrent, overvoltage, and overtemperature protection functions
14. I accidentally over-discharged the battery, resulting in under-voltage protection. What kind of charger should I use to charge the battery?
Disconnect all wiring cables from the battery.
Use a charger with a lithium activation function that matches the battery. Charge the battery for more than 24 hours at an ambient temperature between 41°F (5°C) and 131°F (55°C). Once the terminal voltage rises above 12.6V, the battery will charge normally.
Use a charger with a lithium activation function that matches the battery. Charge the battery for more than 24 hours at an ambient temperature between 41°F (5°C) and 131°F (55°C). Once the terminal voltage rises above 12.6V, the battery will charge normally.
15. How do I store the battery?
To store the battery properly:
1. Charge it to 30%-50%
2. Disconnect it from the system
Store in a dry, well-ventilated, clean area with temperatures between -13°F and 149°F (-25°C to 65°C)
Handle the battery carefully to avoid impacts or extreme pressure on the casing
Charge the battery at least once every 3 to 6 months to prevent overdischarge.
Fully charge the battery when it is taken out of storage.
1. Charge it to 30%-50%
2. Disconnect it from the system
Store in a dry, well-ventilated, clean area with temperatures between -13°F and 149°F (-25°C to 65°C)
Handle the battery carefully to avoid impacts or extreme pressure on the casing
Charge the battery at least once every 3 to 6 months to prevent overdischarge.
Fully charge the battery when it is taken out of storage.
