Description
This 40A DC to DC Charger is designed to charge secondary batteries while driving using the primary battery connected to the alternator. It is able to charge: Flooded, Gel, AGM, and Lithium batteries using multi-stage charging.
If you have any questions regarding this product, please submit a case !
Key Features
- Multi-Chemistry Battery Types: AGM, Flooded, Gel, and Lithium
- Smart Protection Features: Over-voltage safety, Overheat protection, and Reverse polarity protection
- Battery Input and Output Isolation
- 3-phase Charging: Bulk, Boost, and Float
- Compact, sturdy design, built tough for all conditions
- Increases run time of loads, such as fridges and lights
- Overcomes voltage drop caused by long cable runs
- Prolongs Battery Life
Package Includes
|
40A DC to DC Battery Charger
1 x
|
| Renogy 40A DC to DC Battery Charger |
|
| Nominal Voltage: 12V |
Rated Charge Current: 40A |
| Output: 500W |
Idle Power Consumption: <0.4A |
| Input Voltage Range: 8V-16V |
Equalization Voltage: N/A |
| Float Voltage: 13.2-13.8v |
Boost Voltage: 14.1-14.7v |
| Operating Temperature: -20°C to +50°C |
Dimensions: 10.28 x 6.88 x 2.68 inches / 26.1 x 17.5 x 6.8 cm |
| Weight: 4.14lbs / 1.88kg |
|
| Certifications： |
|
| CE: YES |
ROHS: YES |
Warranty Information
| Accessories |
1-year material warranty |
1. What is a DC-DC charger? What is its purpose?

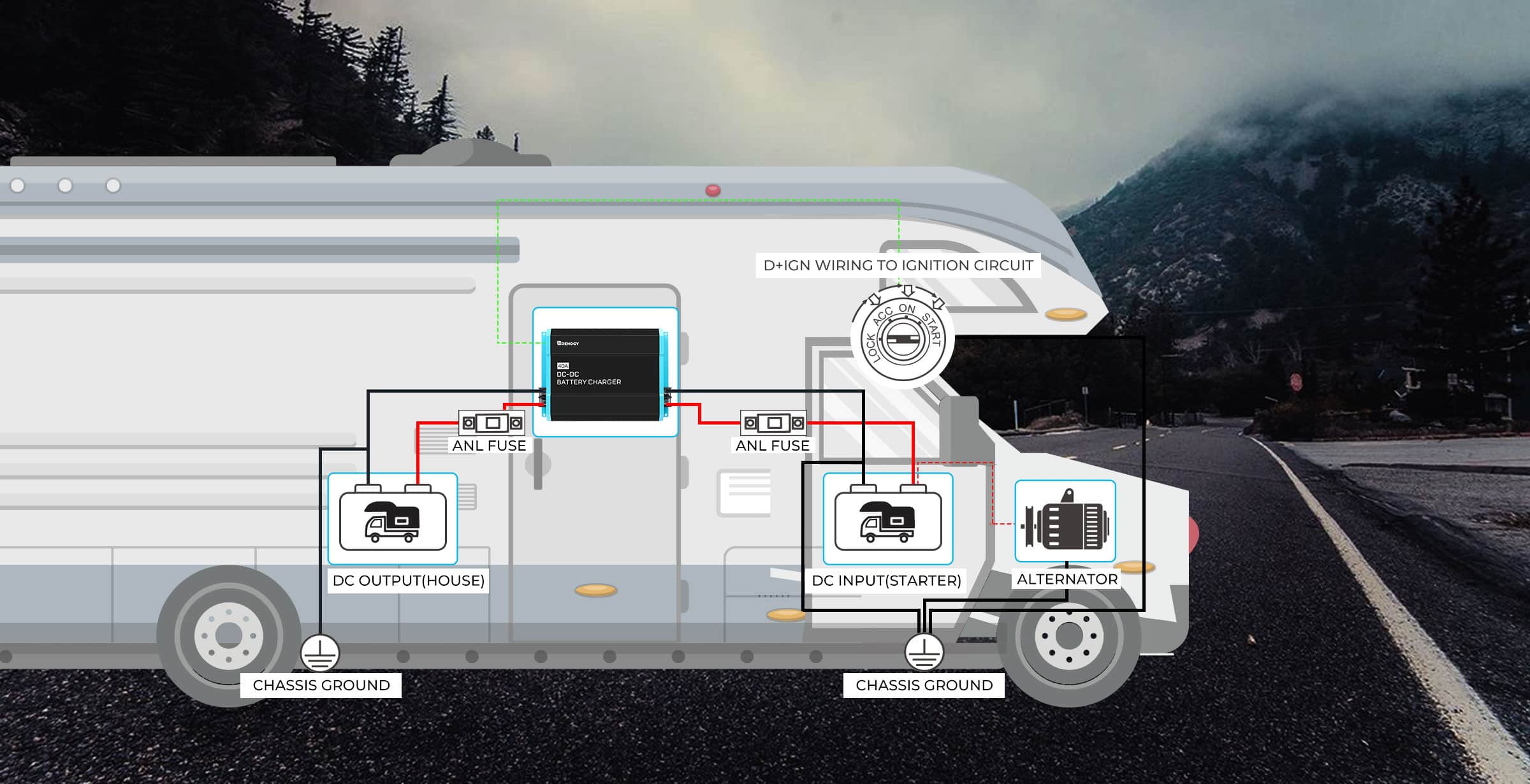

The DC-DC battery charger is installed between the starter battery and the house battery. For the RV system, The generator ensures stable power supply to the starter battery, and uses the extra power of the starter battery to supply power to the house battery.
2. How to choose a suitable battery charger?
1. Make sure that the entire system is a 12V system 2. Ensure that the maximum charging current provided by the DC-DC battery charger does not exceed the maximum charging current allowed by the house battery
3. How to set the charging voltage value of the charger?
The DC-DC battery charger adopts the design of the DIP switch and it provides 6 charging voltage settings through five gears. These six charging voltages meet the requirements of lithium batteries and lead-acid batteries in order to provide more charging options. SW5 switch is the selection switch for switching between lead-acid batteries and lithium batteries.
4. What is the D+ Ignition cable? Is it necessary to connect?
The D+ Ignition cable is a design method used to identify whether the generator is started. This design method can well prevent the starting battery from being over-discharged during the charging process. When the generator is started, a signal will be obtained on the D+ Ignition cable, which will light up the indicator light of the charger. The DC-DC will not power on or operate until the D+ ignition cable is connected.
5.How can I get these cables?
The battery temperature sensor for DC-to-DC car battery chargers can be purchased at the Renogy store. The D+ ignition cable can be purchased at the local store or online, it suits both D+ and LC terminals. 18-16AWG copper cable recommended.
