Description
You'll never have to worry about access to energy on the road with the Renogy 300 Watt Premium Solar Kit. This kit includes the Renogy 100 Watt 12 Volt Monocrystalline Solar Panel which is the perfect item for off-grid applications! High in power but compact in size, this 100W solar panel is a favorite for RVs, boats, campers, and similar applications, providing excellent efficiency per space.
The included 100W Solar Panels (4 options available) are not only sleek in size and weight, but are made of high efficiency monocrystalline solar cells.

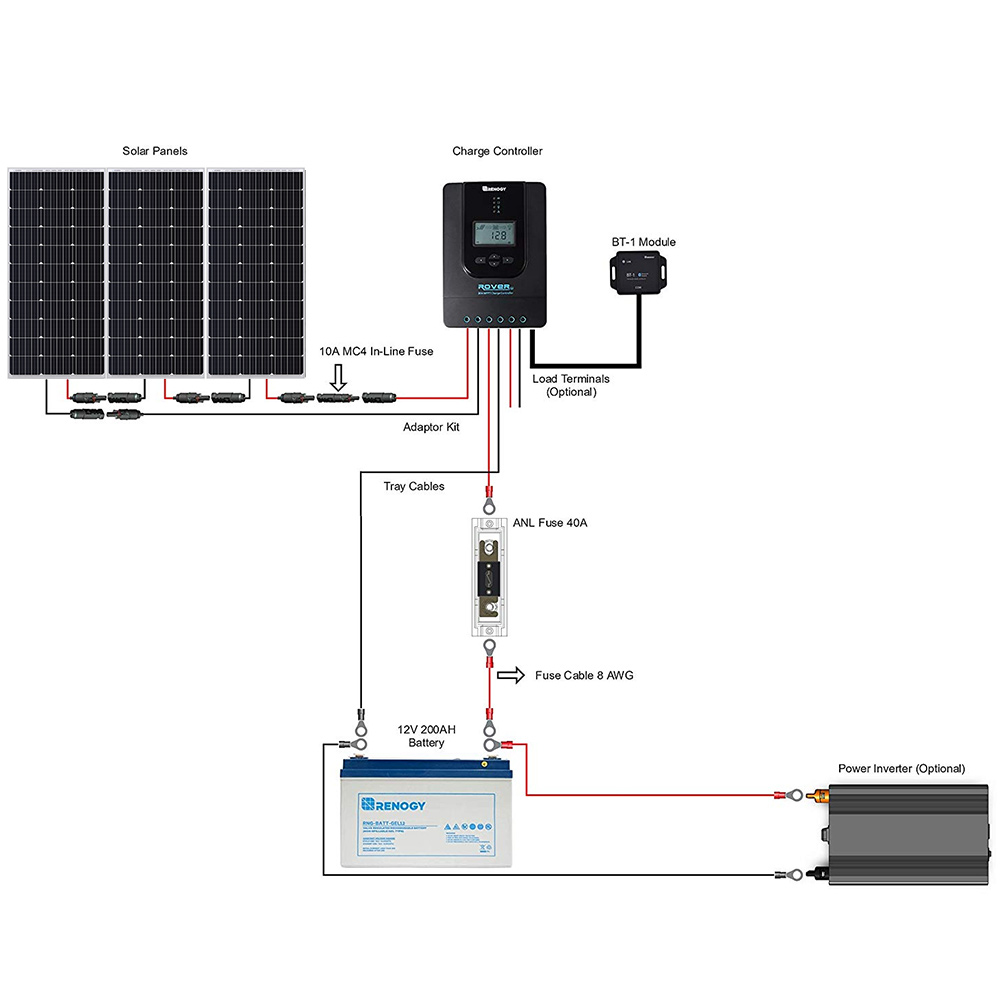

The included Rover Li 40A MPPT Charge Controller features multiphase synchronous rectification and Maximum Power Point Tracking technologies, which increase charging efficiency. Our new Bluetooth module is also included which can be paired to the Renogy DC Home smart phone App. The Renogy DC Home smart phone App allows users to remotely monitor and change their photovoltaic system's parameters with a few simple swipes on their smartphone or tablet. For convenience, this kit also consists of three sets of mounting Z-Brackets, one Solar Adaptor Kit Cables Connecting Solar Panel to Controller , one 8ft 8AWG Tray Cable, fusing components for your controller and battery.
This Premium Kit is perfect for installation on an RV, boat, or camper. The included Rover 40A MPPT Charge Controller allows for future expansion, leaving your system’s capabilities endless.
If you have any questions regarding this product, please submit a case !
Key Features
Efficient- Monocrystalline panels come with high-efficiency cells Cell efficiency: Monocrystalline 21%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Rover charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%
- EL tested solar modules; no hot-spot heating guaranteed
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- RS-232 port compatible for extra features
- Compatible with Renogy Bluetooth Module and Renogy DC Home APP for remote monitoring
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Comes equipped with an Solar Inline fuse and ANL fuse components for protecting your charge controller and battery
DOWNLOAD LINKS
Package Includes
|
100W Compact Panel OR 100W Black frame Panel OR 100W Flexible Panel OR Lightweight ETFE Panel
3 x |
Rover 40A MPPT Charge Controller
1 x |
|
Solar Panel Extenison Cables (Pair)
1 x |
Mounting Z Brackets (Set) (not included in ETFE Flexible panel kits)
3 x |
|
1 x |
1 x |
|
Solar Branch Connectors MMF+FFM Pair (not included in ETFE Flexible panel kits) 2 x |
|
| 100W Compact Design Solar Panel (Optional) | 100W Black Frame Rigid Solar Panel (Optional) |
|---|---|
| Maximum Power: 100W | Maximum Power: 100W |
| Maximum System Voltage:600V DC(UL) | Maximum System Voltage:600V DC |
| Open-Circuit Voltage (Voc): 24.3V | Open-Circuit Voltage (Voc): 24.3V |
| Short-Circuit Current (Isc): 5.21A | Short-Circuit Current (Isc): 5.21 A |
| Optimum Operating Voltage (Vmp): 20.4V | Optimum Operating Voltage (Vmp): 20.4V |
| Optimum Operating Current (Imp): 4.91A | Optimum Operating Current (Imp): 4.91A |
| Weight:6.4kg | Weight: 6.4 kg |
| Dimensions: 41.8 x 20.9 x 1.38 in | Dimensions: 41.8x20.9x1.38 in/1062x530x35mm |
| Operating Temperature: -40°F to 176°F | Module Efficency:17.8% |
| Maximum Series Fuse Rating: 15A |
| 100W Flexible Solar Panel (Optional) | 100W Lightweight ETFE Solar Panel (Optional) |
|---|---|
| Maximum Power: 100W | Maximum Power: 100W |
| Maximum System Voltage:600V DC | Maximum System Voltage:600V DC |
| Open-Circuit Voltage (Voc): 22.5V | Open-Circuit Voltage (Voc): 23.5V |
| Short-Circuit Current (Isc): 5.75A | Short-Circuit Current (Isc): 5.51A |
| Maximum Operating Voltage (Vmp): 19.4V | |
| Optimum Operating Current (Imp): 5.29A | Maximum Operating Current (Imp): 5.20A |
| Weight: 1.8 kg | Weight: 2.4 kg / 5.3 lb |
| Dimensions: 48 x 21.5 x 0.08 In / 121.9 x 54.6 x 0.2 cm | Dimensions:3.0 x 22.9 x 0.8 in (1093.0 x 582.0 x 20.5 mm) |
| Renogy Solar Panel Extension Cables (Pair) | Renogy 10A Solar Fuse Holder w/Fuse |
|---|---|
| Length: 3/4.5/6 m | Rated Current: 10A |
| AWG: 10/12 (6/4 mm²) | Rated Voltage: 1000 V DC |
| Rating Voltage: 600/1000V | Contact Material: Copper, Silver Plated |
| Temperature: -40°F to +185°F | Replaceable Fuse: Cylindrical PV Fuse (10x38mm) |
| Mounting Z Brackets (Set) | 8ft 8AWG Tray Cables (A pair) |
|---|---|
| Eight Long Cap Bolts and Four Short Bolts | Rating Voltage: 600/1000V |
| Four Spring Washers and Four Washers | Length: 8ft |
| Four Z Shape Solar Panel Brackets | AWG: 8 |
| Four Nuts | Temperature: -40°F to +185°F |
| 2ft 8AWG ANL Fuse Cable | ANL 40A Fuse Set |
|---|---|
| Length: 2ft | Current Rating: 40A |
| Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV | Voltage Rating: 72V |
| Temperature: -40°F to +194°F | Interrupt Capacity: 240A (48V) |
| 40A Rover Charge Controller | BT-1 Bluetooth Module |
|---|---|
| Nominal System Voltage: 12V/24V Auto Recognition | Max Solar Input Voltage: 100 VDC |
| Rated Battery Current: 40A | Mounting Oval: 0.30 x 0.18in |
| Rated Load Current: 20A | Net Weight: 3.08 lb. |
| Max. PV Input Short Current: 50A | Discharge circuit voltage drop: ≤ 0.15V |
| Max. Battery Voltage: 32V | Overall Dimension: 8.27 x 5.94 x 2.34 in |
| Solar Panel Solar Branch Connectors (Pair) | |
|---|---|
| Withstanding voltage: 1000V DC(TUV), 600V(UL) | Contact Resistance: 1m |
| Temperature: -40°F to +194°F | Unmating Force:147.51Ft·lb |
| Contact Material: Copper, silver plated |
Warranty Information
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
 |
|||
 |
|||
| Please click the links below to download the manuals: | |||
| BT-1 Bluetooth Module | |||
| 40A Rover Charge Controller | |||
| Mounting Z Brackets | |||
