Renogy TOPCon Solar Panels: Unrivaled Efficiency, Consistent Performance
Renogy's TOPCon Solar Panels outperform PERC counterparts with superior cell efficiency, a longer lifespan, and much more consistent high performance.
More Output and Higher Bifaciality

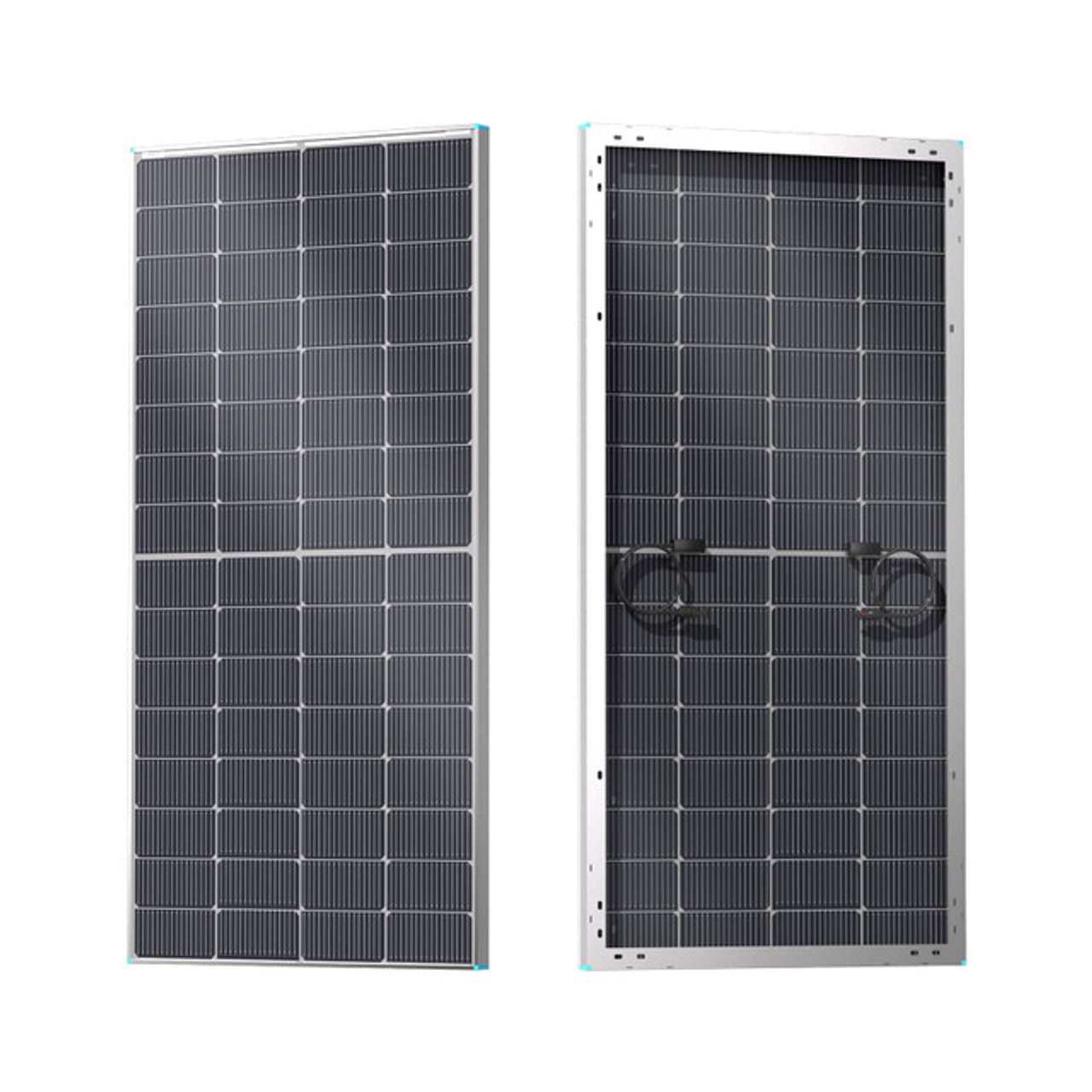

Renogy's N-Type TOPCon Bifacial Solar Panel offers a 10% higher bifaciality rate and a 20W power output boost compared to conventional p-PERC panels of the same design.
16BB for Higher Conversion Efficiency and Longer Lifespan
Advanced 16BB cell technology maximizes energy conversion while enhancing durability by minimizing the risk of microcracks.
Bifacial Boost: 14% More Power
With an impressive 80% bifaciality factor, the rear of this panel delivers approximately 14% more power compared to that of a PERC counterpart.
Compatible with 99% of Charge Controllers
Renogy's 100W 12V N-Type TOPCon Solar Panels, with an open-circuit voltage of less than 25V, are compatible with various MPPT/PWM charge controllers.
Premier Choice for Multiple Applications
Why Choose Renogy
Redefining excellence in solar solutions.
Learn more
Package Includes
- 1 x 250w N-type Solar Panel
- 1 x User Manual
- 1 x Warranty Card
| RENOGY 200w EFLEX portable solar panel | |||
|---|---|---|---|
| Max Power at STC | 200 W | Open Circuit Voltage | 23.40V |
| Short Circuit Current | 10.50A | Optimum Operating Voltage | 20.16V |
| Optimum Operating Current | 9.92A | Cell Efficiency | >22.6% |
| Operating Temperature | ’14°F to 149°F(-10℃ to +65℃) | Dimensions | 25.0 x 21.1 x 2.2 in / 635 x 536 x 55 mm(fold),94.1 x 21.1 x 0.2 in / 2390 x536 x 4 mm (unfold) |
| Weight | 17.6 lbs. / 8.0 kg | ||
| Warranty | Material and workmanship warranty | 1 | |
| Certifications | CE and RoHS compliant, FCC, Manufactured in a Certified ISO 9001 Facility, CA65, PES | YES | |
1.What do I need to complete my off-grid solar power system ?
A solar panel has to be connected a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2.What does off-grid and on-grid mean?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3.Why is my solar panel under producing?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
4.How should I connect solar panels in my electrical circuit (series vs parallel) ？
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
5.How many solar panels do I need?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
6.What is the Benefits of Using Bifacial Solar Panels
a.Captures sunlight from both sides b.More efficient and power than monofacial panels c.Perform better in overcast weather d.Install in any direction
7.What is the meaning of 12V in the product title，Why is this value different from the voltage of the solar panel？
When you open the product page, you will see a title like "xxx Watt 12 Volt Monocrystalline Solar Panel". The "12V" here does not refer to the voltage of this solar panel (VOC or VMP), but to the fact that one xxxW solar panel is suitable for 12V system (i.e. a 12V battery).Therefore, these are two completely different values with different meanings.
 |
 |
