175 Watt 12 Volt Solar Marine Kit with 20A Voyager
175 Watt 12 Volt Solar Marine Kit with 20A Voyager
starts- reviews
SKU: RKIT175DBM-VOY20-AU
AU$527.99 AU$409.99
Calculater  reward Renogy Rays
Calculater

Availability:

AU stock, usually ships in 1 to 3 business days.

x

Description

Renogy’s Marine Kits are back and better than ever! Adding solar to your boat is a breeze since we've included the necessary components to get you started on your solar quest to eliminate the burden of dead batteries and maximize your fun under the sun. Unlike traditional gas-generators, Renogy’s Marine Kits will silently charge your batteries and ensure they’re topped off just right. Included in the kit is our new waterproof 20A Voyager Charge Controller capable of handling up to 7 different battery types! If weight is a concern for your boat, have no fear! Our new 175W Flexible panels are thin, lightweight and take up minimal space.

If you have any questions regarding this product, please submit a case!

Key Features

Solar Panel
  • Designed for off-grid solar panel system, caravan, RV, boat, Green house solar panel system
  • Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
  • Waterproof charge controller giving you more freedom to install anywhere
  • With a flex range of up to 248 degrees, this panel can meet a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an Airstream

Charge Controller

  • 12V / 24V Battery Compatibility with Auto Recognition
  • Smart 4 Stage PWM charge controller: Bulk, Absorption. Float, and Equalization
  • 4 Battery Type Compatiblity – Sealed/AGM, Gel, Flooded, and Lithium batteries (with Lithium Awakening feature)
  • Watertight design with Backlit LCD display for system information and error codes
  • Multiple protection features for battery, controller, and solar panels (including reverse polarity and more)

Package Includes

Flexible 175W Mono Solar Panel

175w flexible solar panel

1 x

Voyager-20A PWM Charge Controller

voyager 20A controller

1 x

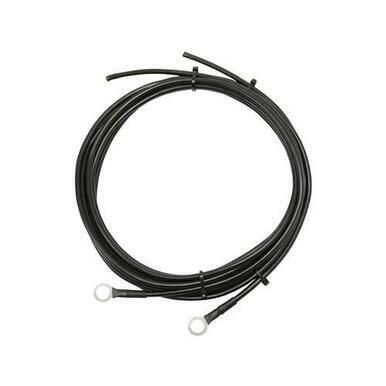

Renogy 8ft 10AWG Tray Cables

1 x

Renogy 20ft 10AWG Solar Adaptor Kit

1 x

Voyager Charge Controller Temperature Sensor

1 x

Flexible 175 Watt Solar Panel 10A PWM Waterproof Charge Controller
Maximum Power at STC*: 175 W Nominal Voltage: 12/24 VDC
Optimum Operating Voltage (Vmp): 20.3V Rated Charge Current: 10A
Optimum Operating Current (Imp): 8.75A Max. PV Input Voltage: 55V
Short-Circuit Current (Isc): 9.65A Max. PV Power: 130W (12V) / 260W (24V)
Open Circuit Voltage (Voc): 23.9V Enclosure: IP67
Maximum System Voltage: 600VDC Self-consumption: 0.22W (12V) / 0.72W (24V)
Weight: 6.2lb (2.81kg) Weight: 0.55 lbs / 0.25kg
Dimensions: 59.2 x 26.5 x 0.08 in (1504 x 673 x 2 mm) Dimensions: 6.1 x 3.8 x 1.4 in / 15.4 x 9.7 x 3.5 cm
8ft 10AWG Tray Cables (A Pair) 20ft 10AWG Solar Adaptor Kit (A Pair)
Length: 8ft Length: 20ft
AWG: 10 AWG: 10
Rating Voltage: 600/1000V Rating Voltage: 600/1000V
Temperature: -40°F to +185°F Temperature: -40°F to +185°F
Temperature Sensor
Cable: 22AWG, 2-Pin Conductor Cable Length: 9.8 ft/ 3M

Warranty Information


Panels

25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty

Accessories 1-year material warranty


Certification



Please click the links below to download the manuals:
20A PWM Voyager Charge Controller
Renogy Flexible 175W Mono Solar Panel Specs
wiring diagram for marine kit.jpg
